Tractor · 1978Unverified

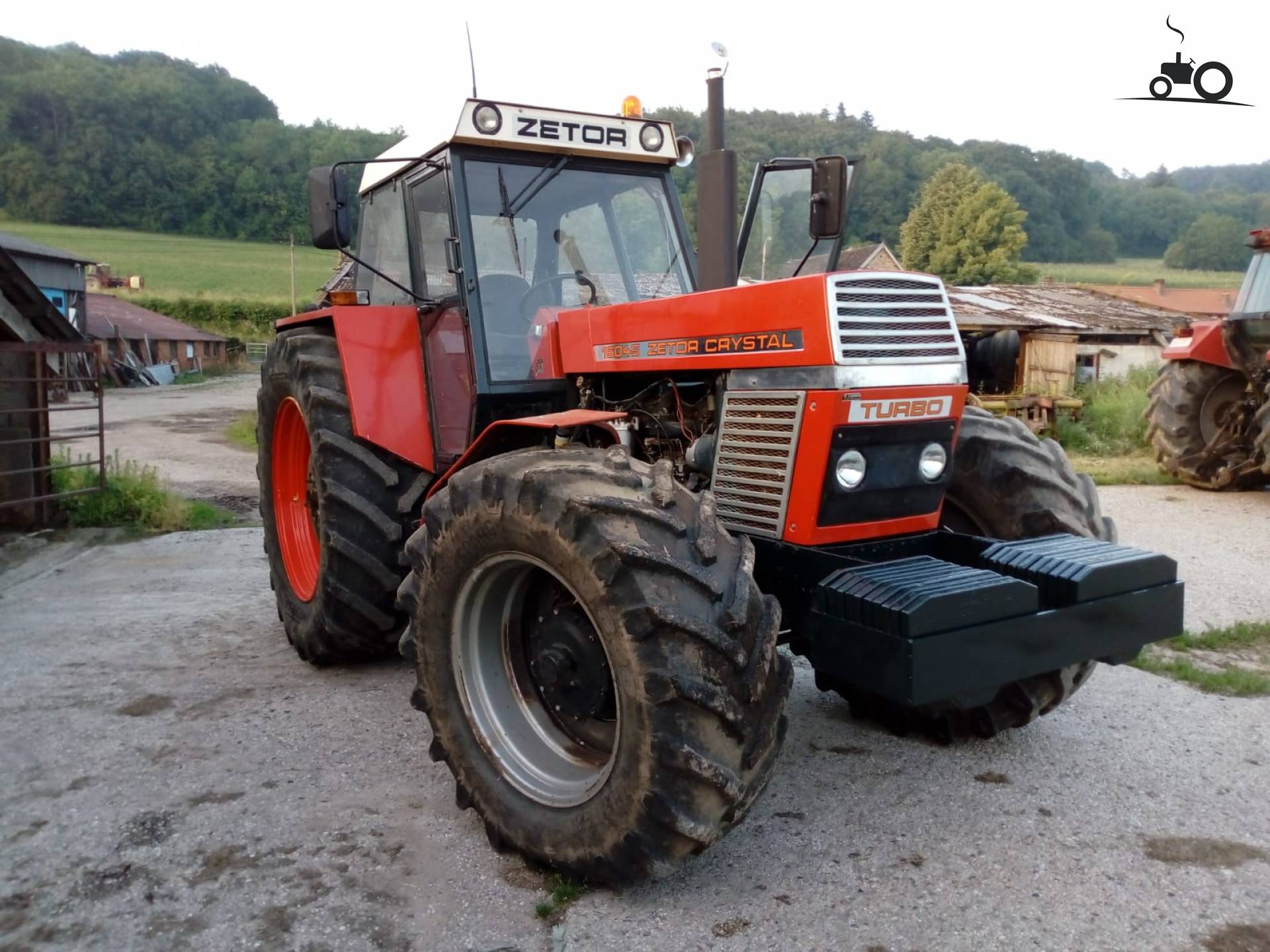

Zetor 16045
Zetor 16045 — Crystal UR2 Series · 160 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
160 hp
Weight
5009 kg
Hover a source tag to verify
Overview
ManufacturerZetorReference
Row-Crop tractorReference
Built in Brno, CzechoslovakiaReference
Four-wheel driveReference
Hydraulic dry disc brakesReference
Cab standard.Reference
Engine
Zetor 6.8L 6-cyl dieselReference
Engine119.3 kWReference
Zetor Z 8601Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke110 x 120 mmReference
Power119.3 kWReference
Fuel systemdirect injectionReference
Rated RPM2200Reference
Starter volts24Reference
Oil capacity18.0 LReference
Coolant capacity24.5 LReference
Transmission
12-speedReference
Gears12 forward and 6 reverseReference
Clutchdry discReference
Oil capacity33.0 LReference
Three gears in two ranges with two-speed torque multiplier.Reference
Capacities
Fuel194.9 LReference
PTO & Hydraulics
Hydraulic system44.7 LReference
Typeopen centerReference
Capacity44.7 LReference
Valves1Reference
Pump flow32.9 lpmReference
Rear TypeIII/IIReference
Controllower-link draft controlReference
Rear lift3999 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Engine RPM540@1900Reference
Engine RPM1000@2200Reference
Dimensions
Wheelbase269 cmReference
Weight5009 kgReference
Front tire14.9-24Reference
Rear tire18.4-34Reference
Ag front14.9-24Reference
Ag rear18.4-34Reference
Length457 cmReference
Width223 cmReference
Height (cab)251 cmReference
Ground clearance43 cmReference
Electrical
Charging systemalternatorReference
Batteries2Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
