Tractor · 1985Unverified

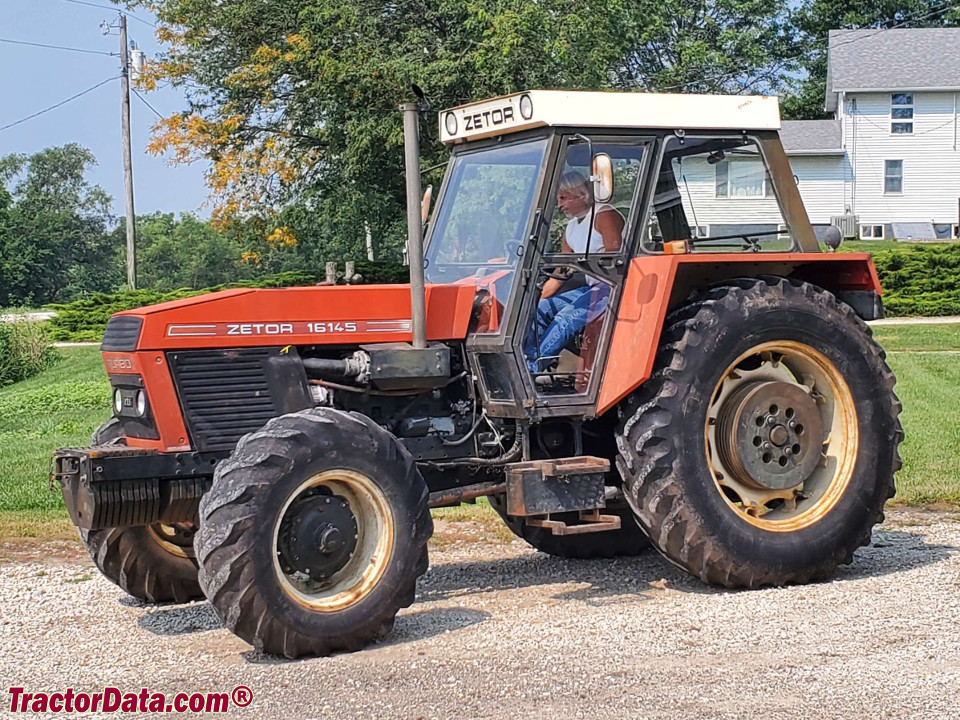

Zetor 16145
Zetor 16145 · 136 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
136 hp
Weight
5069 kg
Hover a source tag to verify
Overview
ManufacturerZetorReference
Built in Brno, CzechoslovakiaReference
Original price was $36,000 in 1990Reference
Four-wheel driveReference
Power steeringReference
Disc brakesReference
Cab standard.Reference
Engine
Zetor 6.8L 6-cyl dieselReference
Engine120.1 kWReference
Zetor 8602.1Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke110 x 120 mmReference
Power120.1 kWReference
Rated RPM2200Reference
Starter typeelectricReference
Coolant capacity22.7 LReference
Transmission
12-speedReference
Gears12 forward and 6 reverseReference
Clutchdry discReference
Three gears in two ranges, plus reverse range, with two-speed torque multiplier.Reference
PTO & Hydraulics
PTO (claimed)101.4 kWReference
Hydraulic system159.0 LReference
Typeopen centerReference
Capacity159.0 LReference
Valves2Reference
Pump flow40.9 lpmReference
Rear TypeIII/IIReference
Rear lift3923 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Capacities
Fuel194.9 LReference
Dimensions
Wheelbase269 cmReference
Weight5069 kgReference
Front tire14.9/13-24Reference
Rear tire18.4-38Reference
Ag front14.9/13-24Reference
Ag rear18.4-38Reference
Length466 cmReference
Width195 cmReference
Height (cab)270 cmReference
Ground clearance40 cmReference
Front tread169 to 180 cmReference
Rear tread150 to 187 cmReference
Speeds
With 18.4-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
