Tractor · 1963Unverified

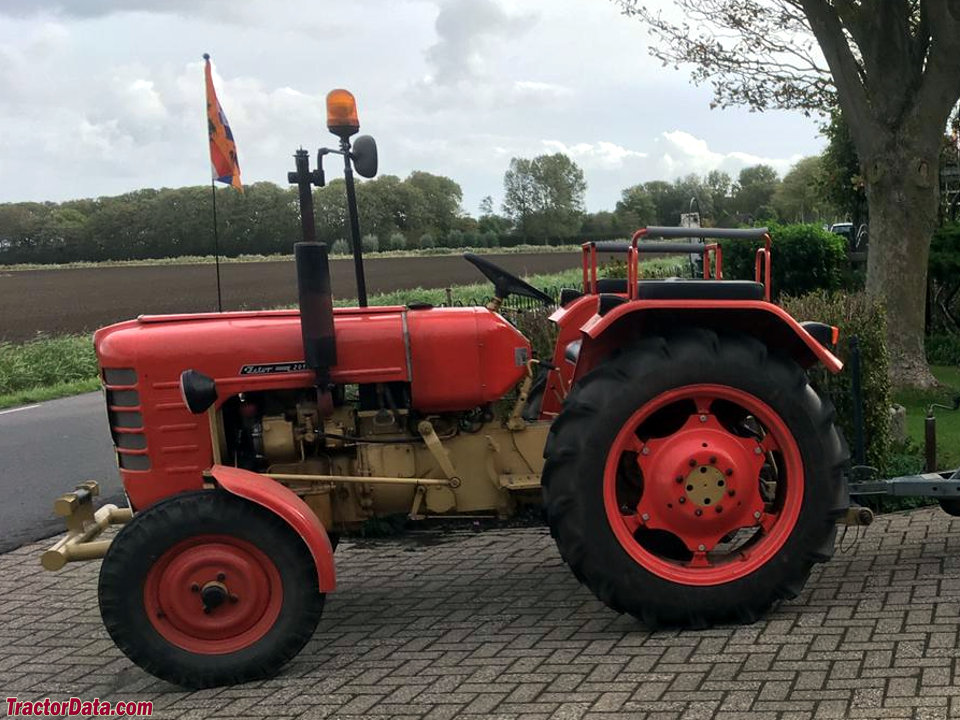

Zetor 2011
Zetor 2011 · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
1300 kg
Hover a source tag to verify
Overview
ManufacturerZetorReference
Built in Brno, CzechoslovakiaReference
Two-wheel driveReference
Open operator station.Reference
Engine
Zetor 1.6L 2-cyl dieselReference
Fuel tank40.1 LReference
Engine18.6 kWReference
ZetorReference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.6 LReference
Bore/Stroke95 x 110 mmReference
Power18.6 kWReference
Compression17:1Reference
Rated RPM2000Reference
Firing order1-2Reference
Starter volts12Reference
Oil capacity6.0 LReference
Coolant capacity7.5 LReference
Transmission
10-speed gearReference
TypegearReference
Gears10 forward and 2 reverseReference
Clutchdry discReference
Five gears, plus reverse, in two ranges.Reference
PTO & Hydraulics
Valves1Reference
Pump flow20.1 lpmReference
Rear PTOindependentReference
Rear PTO Type540Reference
Dimensions
Wheelbase172 cmReference
Weight1300 kgReference
Front tire5.50-16Reference
Rear tire10-28Reference
Ag front5.50-16Reference
Ag rear10-28Reference
Length297 cmReference
Width162 cmReference
Height (steering wheel)145 cmReference
Ballasted weight1880 kgReference
Front tread127/157/172 cmReference
Rear tread127 to 180 cmReference
Speeds
With 10-24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
