Tractor · 1960Unverified

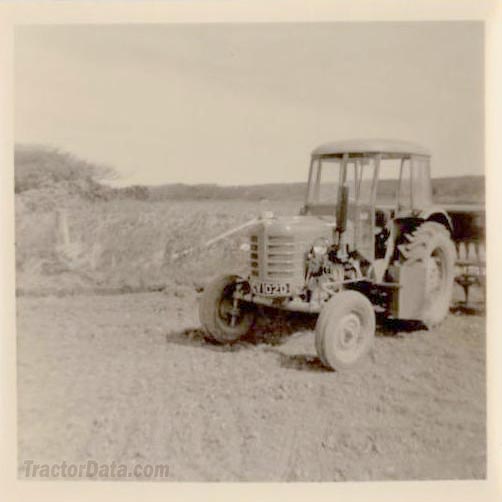

Zetor 3011
Zetor 3011 · 39 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
39 hp
Weight
1480 kg
Hover a source tag to verify
Overview
ManufacturerZetorReference
Built in Brno, CzechoslovakiaReference
Two-wheel driveReference
Open operator station.Reference
Engine
Zetor 2.3L 3-cyl dieselReference
Fuel tank40.1 LReference
Engine29.1 kWReference
ZetorReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.3 LReference
Bore/Stroke95 x 110 mmReference
Power29.1 kWReference
Rated RPM2000Reference
Starter volts12Reference
Oil capacity8.0 LReference
Coolant capacity9.5 LReference
Transmission
10-speed gearReference
TypegearReference
Gears10 forward and 2 reverseReference
Clutchdry discReference
Five gears, plus reverse, in two ranges.Reference
PTO & Hydraulics
Valves1Reference
Pump flow20.1 lpmReference
Rear TypeIIReference
Rear PTOindependentReference
Rear PTO Type540Reference
Dimensions
Wheelbase192 cmReference
Weight1480 kgReference
Front tire6.00-16Reference
Rear tire11-28Reference
Ag front6.00-16Reference
Ag rear11-28Reference
Length301 cmReference
Width166 cmReference
Height (steering wheel)152 cmReference
Ballasted weight2590 kgReference
Front tread127/157/172 cmReference
Rear tread127 to 180 cmReference
Speeds
With 11-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
