Tractor · 1993Unverified

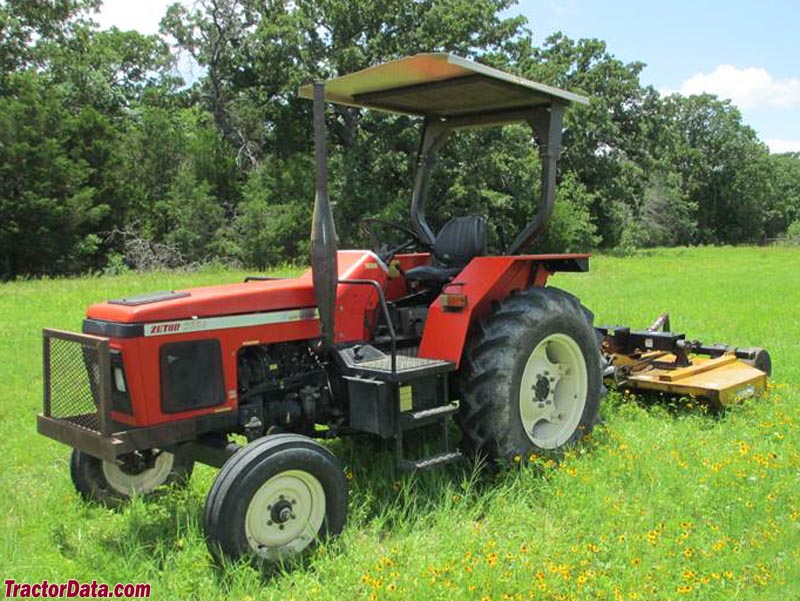

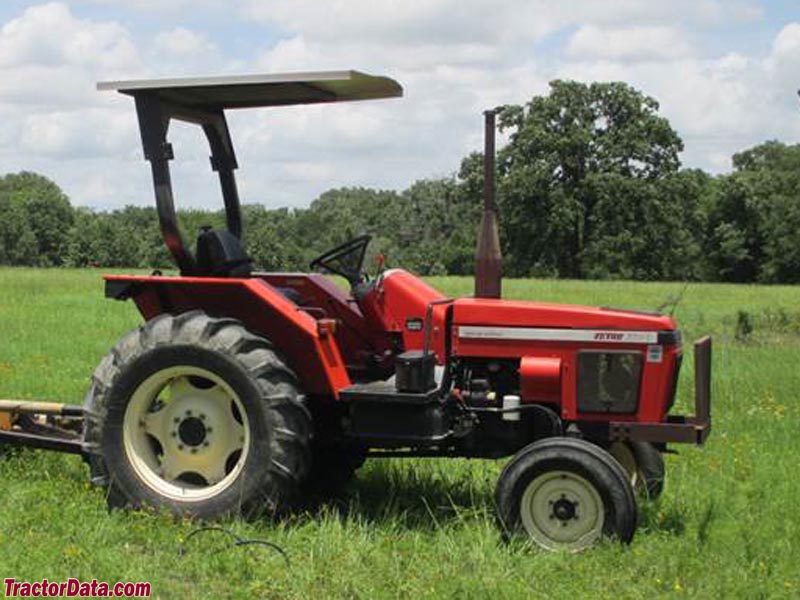

Zetor 3320
Zetor 3320 — Range 1 Series · 43 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
43 hp
Max power
28.3 kW
Weight
2869 kg
Hover a source tag to verify
Overview
ManufacturerZetorReference
Utility tractorReference
Built in Brno, Czech RepublicReference
Original price was $15,500 in 1999Reference
Two-wheel driveReference
Power steeringReference
Hydraulic dry disc brakesReference
Trailer brakespneumaticReference
Trailer brakeshydraulicReference
Cab standard, radio optional.Reference
Variants
33202WDReference
33404WDReference
Engine
Zetor 2.7L 3-cyl dieselReference
Fuel tank45.4 LReference
Engine34.3 kWReference
Drawbar (tested)28.3 kWReference
Zetor Z5201Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke102 x 110 mmReference
Power34.3 kWReference
Air cleaneroil bath with pre-cleanerReference
Compression17:1Reference
Rated RPM2200Reference
Starter volts12Reference
Power at rated engine speed31.7 kWReference
Max power28.3 kWReference
Transmission
10-speed synchromeshReference
10-speedReference
TypesynchromeshReference
Gears10 forward and 2 reverseReference
Clutchhydraulic 304.8mm cerametallic discReference
Transmissionmech shuttleReference
Gears10 forward and reverseReference
PTO & Hydraulics
PTO (claimed)32.1 kWReference
PTO (tested)31.7 kWReference
Typeopen centerReference
Pressure180.0 barReference
Valves1Reference
Total flow32.2 lpmReference
Steering flow15.1 lpmReference
Rear TypeIIReference
Rear lift1746 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Power at rated PTO speed29.9 kWReference
Dimensions
Wheelbase212 cmReference
Weight2869 kgReference
Front tire6.50-16Reference
Rear tire14.9-28Reference
Ag front6.50-16Reference
Ag rear14.9-28Reference
Ag front7.50x16Reference
Ag rear12.4x36Reference
Ag rear16.9x28Reference
Ag rear12.4x32Reference
Length366 cmReference
Width180 cmReference
Height (cab)256 cmReference
Height (exhaust)258 cmReference
Operating weight2869 kgReference
Ground clearance49 cmReference
Zetor 3320 attachments
front-end loaderReference
Electrical
Charging systemalternatorReference
Charging amps55Reference
Battery CCA950Reference
Battery volts12Reference
Test results
Diesel 10-speed 4WDAugust 22 - September 5, 1985Link: Nebraska Tractor Test 1571 fileReference
PTO performanceReference
Fuel use10.2 l/hourReference
Drawbar performanceReference
Fuel use9.8 l/hourReference
Gear 3H used for power test.Reference
Max pull2701 kgReference
Gear 4L used for pull test.Reference
Speeds
With 14.9x28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
