Tractor · 1968Unverified

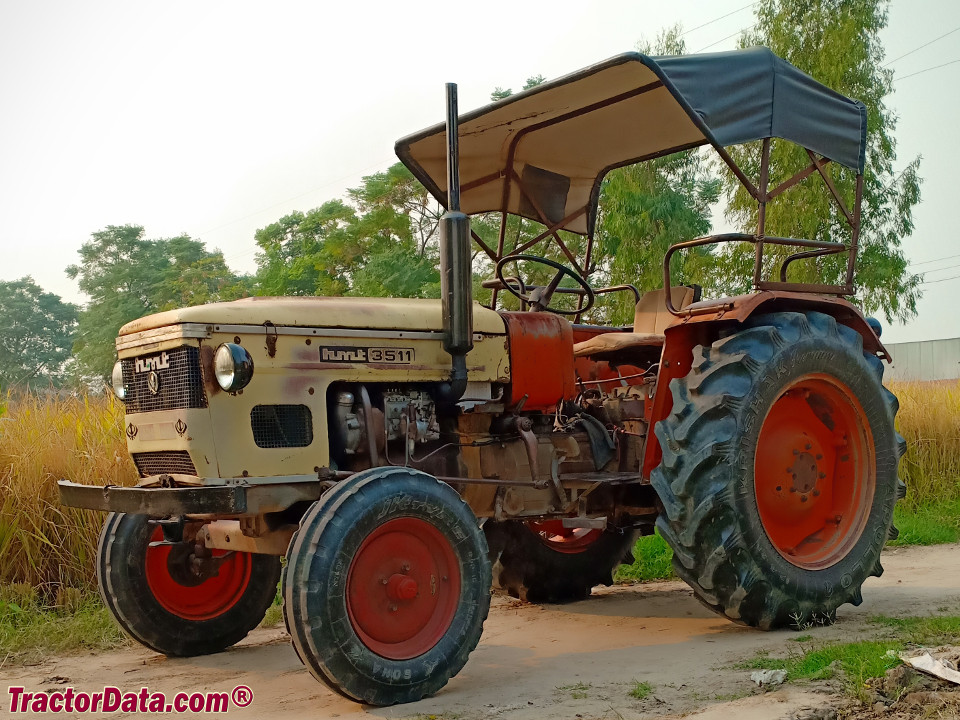

Zetor 3511
Zetor 3511 · 36 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
36 hp
Weight
1520 kg
Hover a source tag to verify
Overview
ManufacturerZetorReference
Built in Brno, CzechoslovakiaReference
Two-wheel driveReference
Final drivesbull gearReference
Manual steeringReference
Mechanical drum brakesReference
Open operator station.Reference
Variants
35112WDReference
35454WDReference
Engine
Zetor 2.3L 3-cyl dieselReference
Engine29.1 kWReference
Zetor Z3001Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.3 LReference
Bore/Stroke95 x 110 mmReference
Power29.1 kWReference
Compression17:1Reference
Rated RPM2000Reference
Torque143.7 NmReference
Torque RPM1500Reference
Starter typeelectricReference
Transmission
10-speed gearReference
TypegearReference
Gears10 forward and 2 reverseReference
Clutchdry discReference
Five gears, plus reverse, in two ranges.Reference
PTO & Hydraulics
PTO (claimed)26.5 kWReference
Rear TypeIIReference
Rear lift1000 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase191 cmReference
Weight1520 kgReference
Front tire6.00-16Reference
Rear tire12.4-28Reference
Ag front6.00-16Reference
Ag rear12.4-28Reference
Speeds
With 11-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
