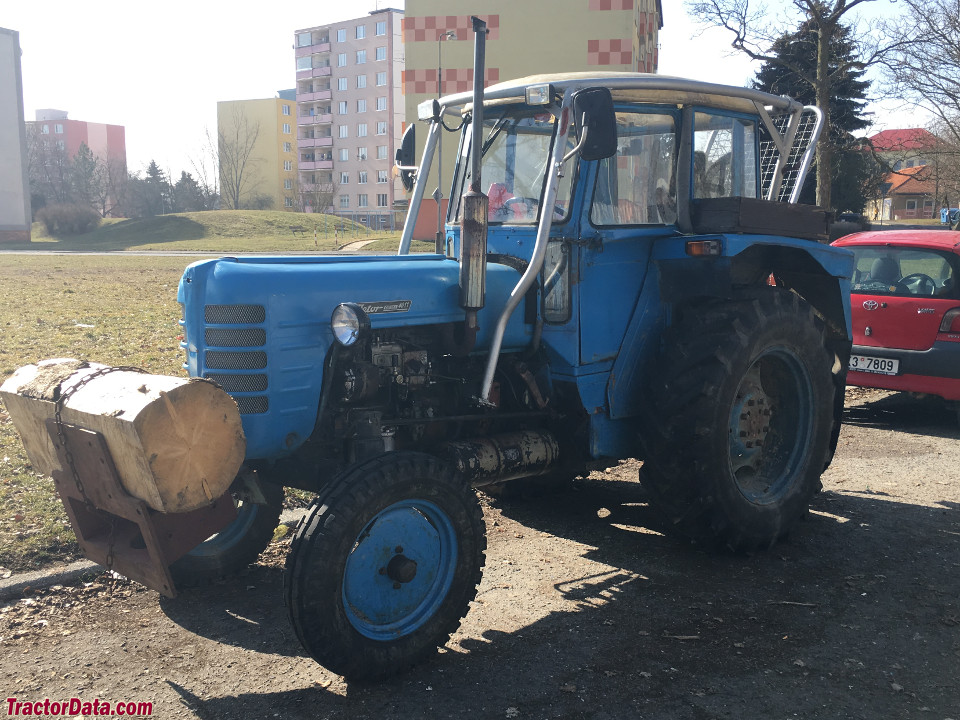

The Zetor 4011 is a compact tractor with a rated output of 53 hp, making it suitable for a range of applications. Produced from 1962 to 1967, it features a 4-cylinder diesel liquid-cooled engine and a two-wheel drive system with a 10-speed gearbox. The tractor's weight is listed at 1964 kg, while its capabilities include handling tasks of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
53 hp
Weight
1964 kg
Catalogue coverage
Variants represented
2
Richest spec table
41 rows
Recorded power
53 hp
Recorded weight
1964 kg
Transmissions
10-speed gear
Production years
1962-1967
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerZetorReference
Built in Brno, CzechoslovakiaReference
Two-wheel driveReference
Open operator station.Reference
Engine
Zetor 3.1L 4-cyl dieselReference
Fuel tank79.9 LReference
Engine39.5 kWReference
ZetorReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.1 LReference
Bore/Stroke95 x 110 mmReference
Power39.5 kWReference
Rated RPM2000Reference
Starter volts12Reference
Oil capacity11.0 LReference
Coolant capacity13.0 LReference
Transmission
10-speed gearReference
TypegearReference
Gears10 forward and 2 reverseReference
Clutchdry discReference
Five gears, plus reverse, in two ranges.Reference
PTO & Hydraulics
Valves1Reference
Pump flow20.1 lpmReference
Rear TypeIIReference
Rear PTOindependentReference
Rear PTO Type540Reference
Dimensions
Wheelbase211 cmReference
Weight1964 kgReference
Front tire6.00-20Reference
Rear tire13-28Reference
Ag front6.00-20Reference
Ag rear13-28Reference
Length325 cmReference
Width179 cmReference
Height (steering wheel)162 cmReference
Ballasted weight3015 kgReference
Front tread134 to 175 cmReference
Rear tread142 to 180 cmReference
Speeds
With 13-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
