Tractor · 1962Unverified

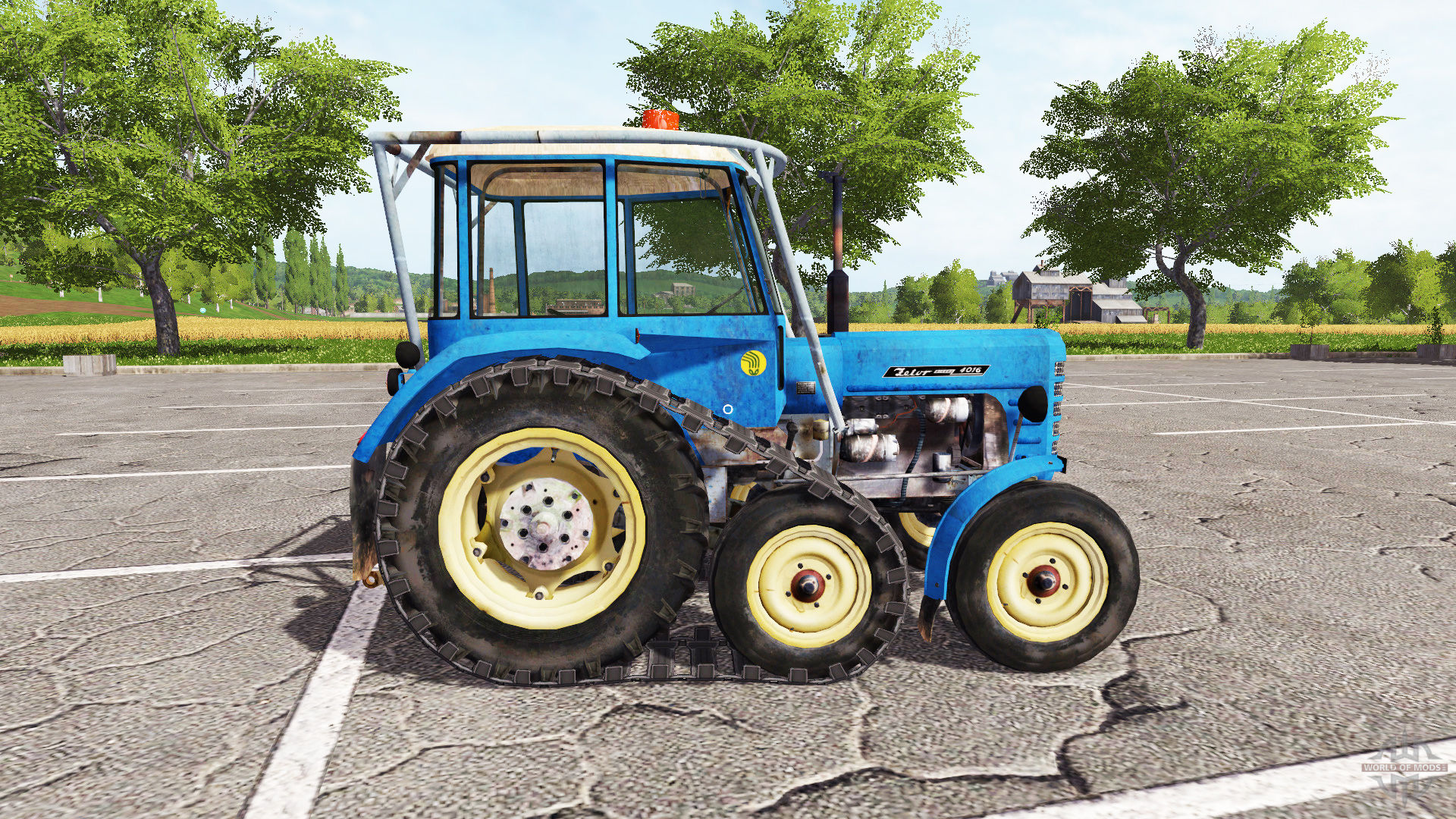

Zetor 4016
Zetor 4016 — Half-track Crawler tractor · 53 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
53 hp
Weight
1964 kg
Hover a source tag to verify
Overview
ManufacturerZetorReference
Half-track Crawler tractorReference
Built in Brno, CzechoslovakiaReference
Drivehalf-trackReference
Engine
Zetor 3.1L 4-cyl dieselReference
Engine39.5 kWReference
ZetorReference
dieselReference
4-cylinderReference
Displacement3.1 LReference
Bore/Stroke95 x 110 mmReference
Power39.5 kWReference
Rated RPM2000Reference
Transmission
10-speedReference
Gears10 forward and 2 reverseReference
PTO & Hydraulics
Rear TypeIIReference
Rear PTOindependentReference
Rear PTO Type540Reference
Dimensions
Wheelbase212 cmReference
Weight1964 kgReference
Front tire5.50-16Reference
Rear tiretracksReference
Ag front5.50-16Reference
Ag reartracksReference
Length325 cmReference
Width213 cmReference
Height162 cmReference
Front tread134 cmReference
Rear tread157 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
