Tractor · 1980Unverified

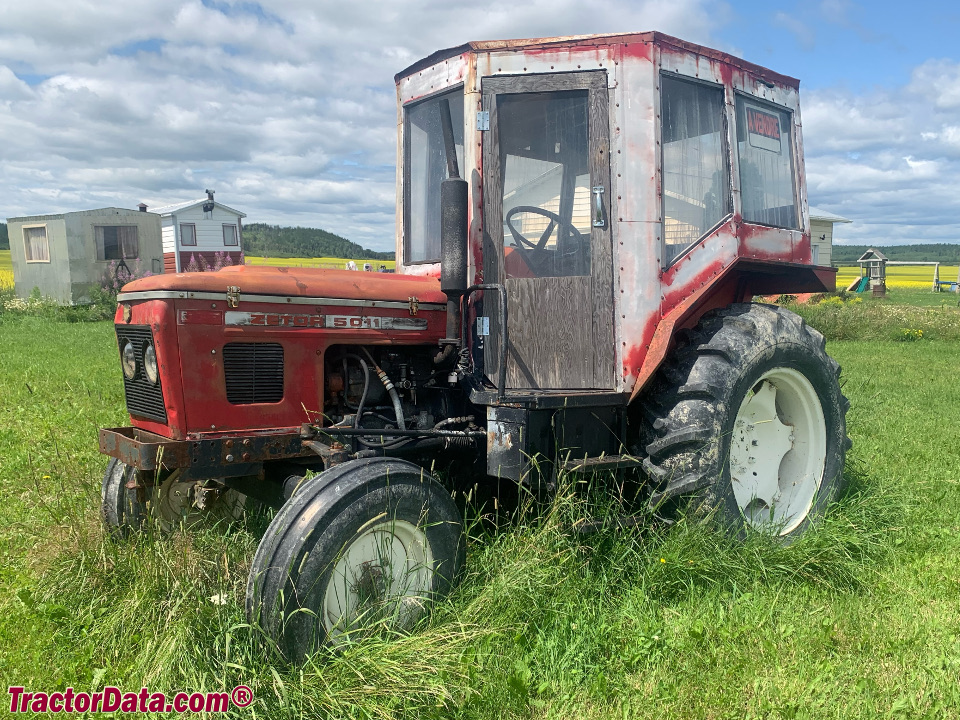

Zetor 5011

Name: Zetor 5011
Brand: Zetor

Zetor 5011 · 42 hp. Reference specifications; pending source verification.

The Zetor 5011 is a compact tractor with a rated output of 42 hp. This model was manufactured from 1980 to 1986 and features a 3-cylinder diesel liquid-cooled engine. It is equipped with a 10-speed gearbox and two-wheel drive, with a listed weight of 5357 to 5667 pounds. It is suitable for tasks on land up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

42 hp

Weight

5357 to 5667 pounds

Catalogue coverage

Variants represented

Richest spec table

45 rows

Recorded power

42 hp

Recorded weight

2429 kg

Transmissions

10-speed

Production years

1980-1986

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerZetorReference

Built in Brno, CzechoslovakiaReference

Original price was $11,000 in 1986Reference

Two-wheel driveReference

Manual steeringReference

Engine

Zetor 2.7L 3-cyl dieselReference

Fuel tank54.9 LReference

Engine37.0 kWReference

ZetorReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement2.7 LReference

Bore/Stroke102 x 110 mmReference

Power37.0 kWReference

Air cleaneroil bathReference

Compression17:1Reference

Rated RPM2200Reference

Transmission

10-speedReference

Gears10 forward and 2 reverseReference

Five gears, plus reverse, in two ranges.Reference

PTO & Hydraulics

PTO (claimed)31.3 kWReference

Typeopen centerReference

Rear TypeII/IReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Dimensions

Wheelbase202 cmReference

Weight5357 to 5667 poundsReference

Front tire6.00-16Reference

Rear tire12.4/11-28Reference

Ag front6.00-16Reference

Ag rear12.4/11-28Reference

Ag front6.50-16Reference

Ag front7.50-16Reference

Ag rear9.5/9-32Reference

Ag rear12.4/11-32Reference

Ag rear14.9/13-28Reference

Ag rear12.4/11-36Reference

Length342 cmReference

Width166 cmReference

Height (cab)234 cmReference

Height (exhaust)237 cmReference

Shipping weight2429 kgReference

Operating weight2570 kgReference

Ground clearance30 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
