Tractor · 1991Unverified

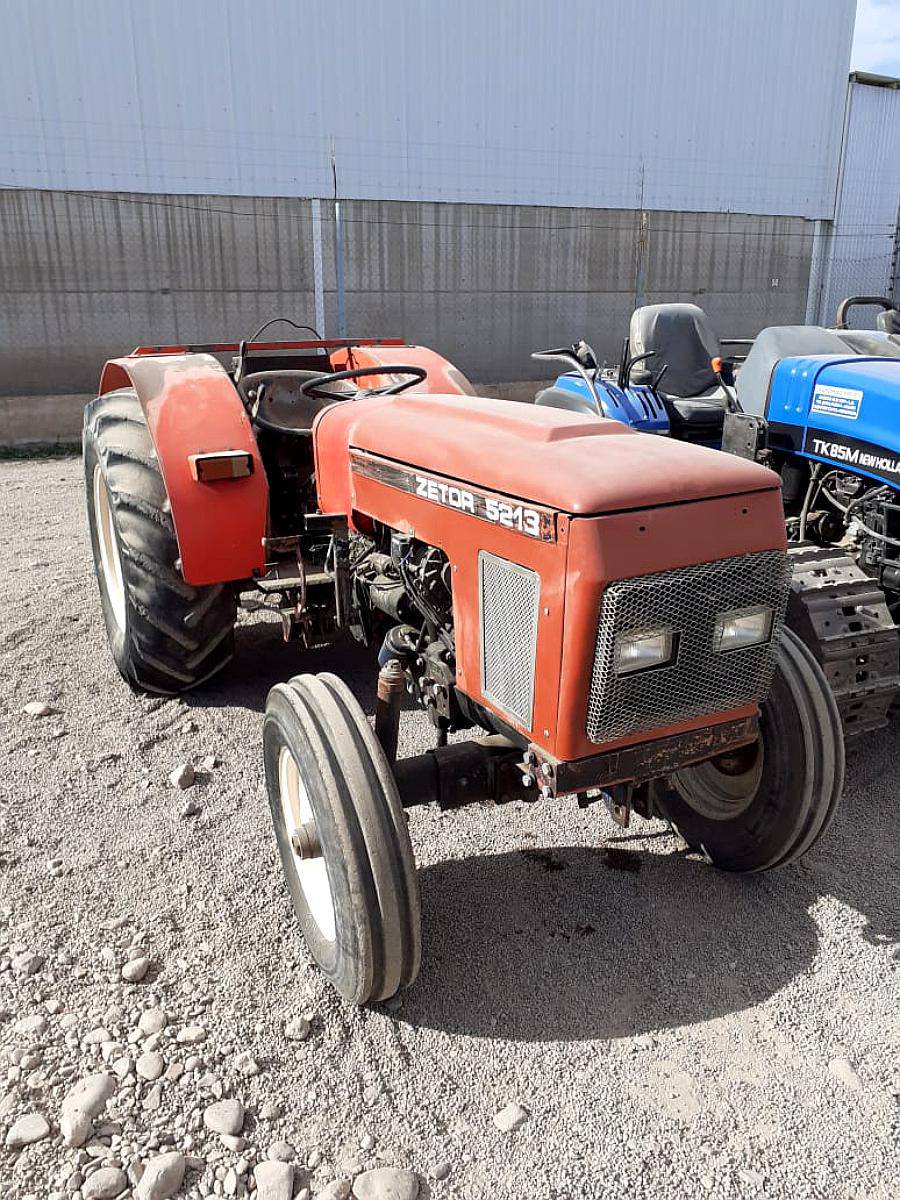

Zetor 5213
Zetor 5213 — Orchard/Vineyard tractor · 43 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
43 hp
Weight
4376 to 4971 pounds
Hover a source tag to verify
Overview
ManufacturerZetorReference
Orchard/Vineyard tractorReference
Built in Brno, CzechoslovakiaReference
Two-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Two-post mid-mount ROPS. Cab available.Reference
Variants
52132WDReference
54134WDReference
Engine
Zetor 2.7L 3-cyl dieselReference
Engine40.0 kWReference
Zetor 5201Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke102 x 110 mmReference
Power33.1 kWReference
Rated RPM2200Reference
Firing order1-3-2Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity9.5 LReference
turbocharged dieselReference
Power40.0 kWReference
Transmission
10-speed gearReference
TypegearReference
Gears10 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)31.7 kWReference
Hydraulic system90.8 LReference
Typeopen centerReference
Capacity90.8 LReference
Valves1Reference
Pump flow32.2 lpmReference
Rear TypeIReference
Rear lift1732 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1994Reference
Capacities
Fuel39.0 LReference
Dimensions
Wheelbase203 cmReference
Weight4376 to 4971 poundsReference
Front tire6.50-16Reference
Rear tire14.9-24Reference
Ag front6.50-16Reference
Ag rear14.9-24Reference
Ag rear12.4-28Reference
Length362 cmReference
Width155 cmReference
Height (exhaust)235 cmReference
ROPS Weight1984 kgReference
Cab Weight2254 kgReference
Ground clearance21 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Battery volts12Reference
Speeds
With 14.9-24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
