Tractor · 1985Unverified

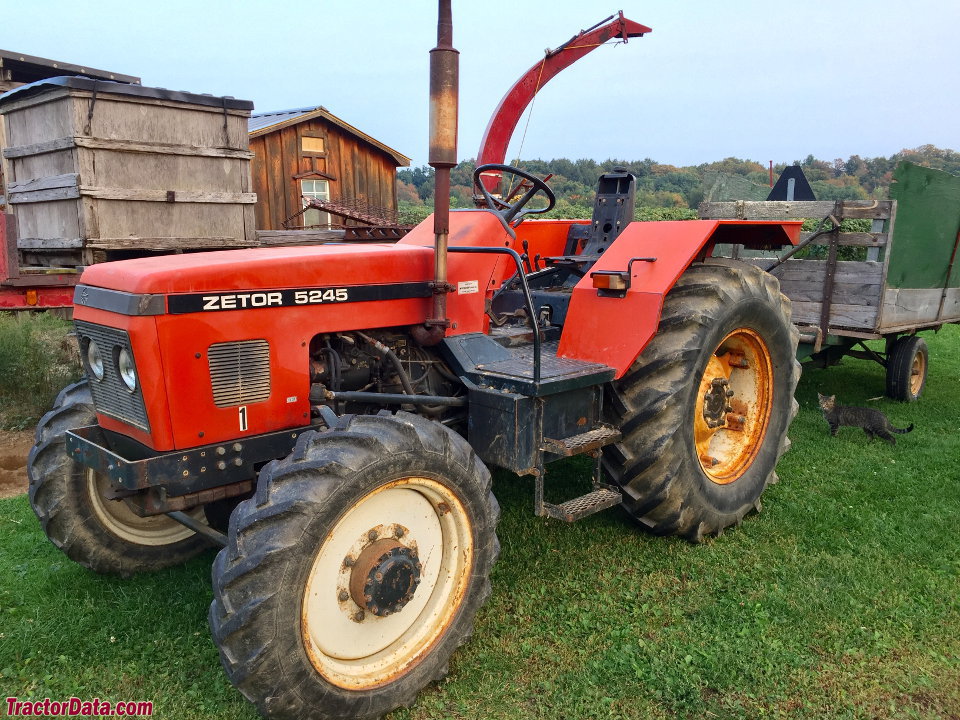

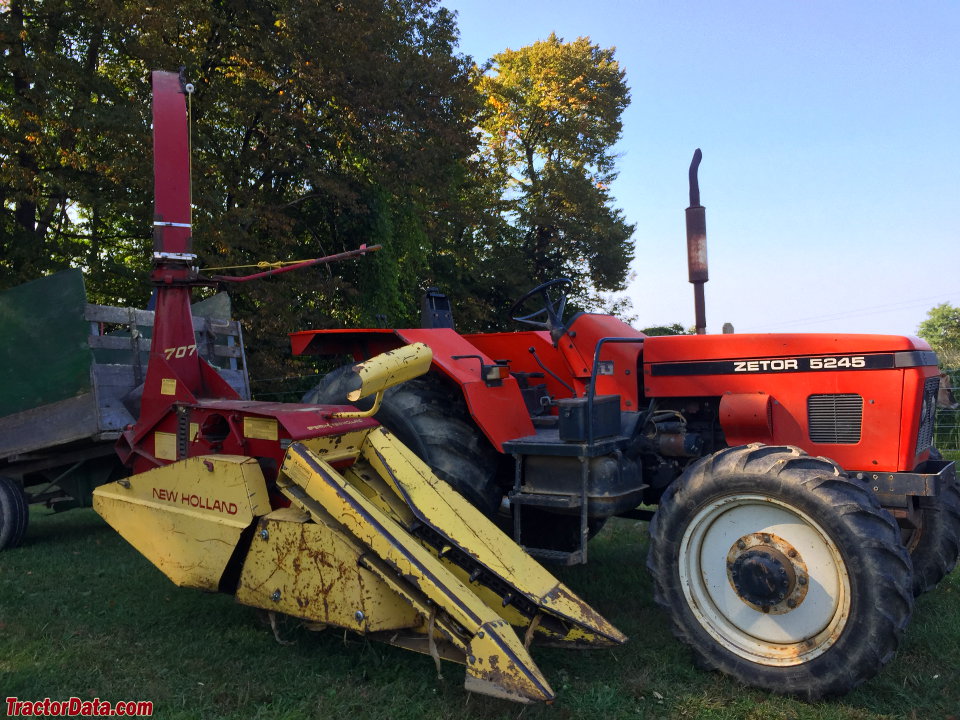

Zetor 5245
Zetor 5245 — Row-Crop tractor · 43 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
43 hp
Max power
28.3 kW
Weight
3079 kg
Hover a source tag to verify
Overview
ManufacturerZetorReference
Row-Crop tractorReference
Built in Brno, CzechoslovakiaReference
Original price was $15,000 in 1992Reference
Four-wheel driveReference
Differential lockmechanical rearReference
Open operator station.Reference
Variants
52112WDReference
52454WDReference
Engine
Zetor 2.7L 3-cyl dieselReference
Fuel tank54.9 LReference
Engine34.2 kWReference
Drawbar (claimed)28.3 kWReference
Drawbar (tested)28.3 kWReference
Zetor 5201Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke102 x 110 mmReference
Power34.2 kWReference
Fuel systemdirect injectionReference
Rated RPM2200Reference
Idle RPM600-2400Reference
Firing order1-3-2Reference
StarterelectricReference
Starter volts12Reference
Oil capacity9.0 LReference
Coolant capacity8.0 LReference
Coolant capacity10.5 LReference
Intake valve clearance0.254 mmReference
Exhaust valve clearance0.254 mmReference
Power at rated engine speed31.7 kWReference
Max power28.3 kWReference
Transmission
10-speed gearReference
TypegearReference
Gears10 forward and 2 reverseReference
Oil capacity32.0 LReference
Five gears, plus reverse, in two ranges.Reference
PTO & Hydraulics
PTO (claimed)31.7 kWReference
PTO (tested)31.7 kWReference
Typeopen centerReference
Valves2Reference
Pump flow30.3 lpmReference
Rear TypeII/IReference
Rear lift (at ends)1782 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Power at rated PTO speed29.9 kWReference
Dimensions
Wheelbase214 cmReference
Weight3079 kgReference
Front tire9.5-24Reference
Rear tire14.9-28Reference
Standard tires (ag)Front: 9.5-24. Rear: 14.9-28Reference
Optional tires (ag)Front: 9.5-24. Rear: 16.9-28Reference
Optional tires (ag)Front: 9.5-24. Rear: 12.4-32Reference
Length363 cmReference
Width184 cmReference
Height (cab)259 cmReference
Height (exhaust)240 cmReference
Clearance (front axle)38 cmReference
Front tread150 cmReference
Rear tread142 to 180 cmReference
5245 Serial Numbers
Location:Serial number plate on the right side of the dashboard.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Battery volts12Reference
Test results
Diesel 10-speed 4WDAugust 22 - September 5, 1985Link: Nebraska Tractor Test 1571 fileReference
PTO performanceReference
Fuel use10.2 l/hourReference
Drawbar performanceReference
Fuel use9.8 l/hourReference
Gear 3H used for power test.Reference
Max pull2701 kgReference
Gear 4L used for pull test.Reference
Speeds
With 14.9-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
