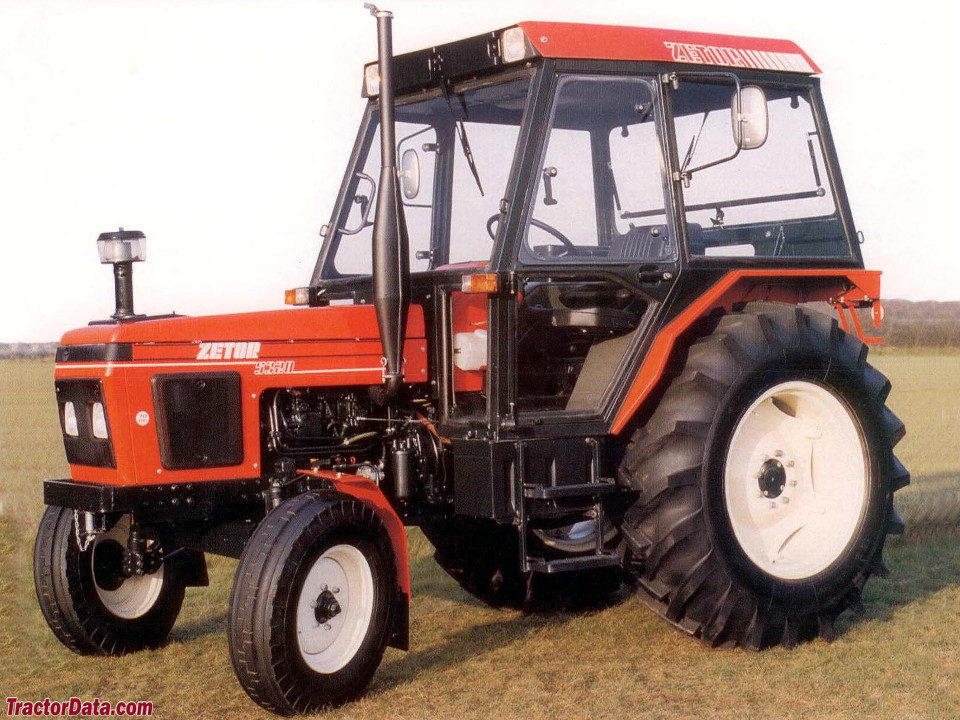

The Zetor 5320 is a tractor model with a rated power of 60 hp, positioning it within the lighter end of its class. Production of the model spanned 1995 to 1997. The tractor features a 4-cylinder diesel liquid-cooled engine, paired with four-wheel drive and a 10-speed gearbox, with a listed operating weight of 3059 kg. It is suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
60 hp
Weight
3059 kg
Catalogue coverage
Variants represented
2
Richest spec table
44 rows
Recorded power
60 hp
Recorded weight
3059 kg
Transmissions
10-speed partially synchronized
Production years
1995-1997
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerZetorReference
Two-wheel driveReference
Power steeringReference
Hydraulic dry disc brakesReference
Cab standard with optional radio.Reference
Variants
53202WDReference
53404WDReference
Engine
Zetor 3.6L 4-cyl dieselReference
Zetor 7201Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.6 LReference
Bore/Stroke102 x 110 mmReference
Rated RPM2200Reference
Transmission
10-speed partially synchronizedReference
Typepartially synchronizedReference
Gears10 forward and 2 reverseReference
Five gears, plus reverse, in high and low ranges. Second through fifth gears are synchronized.Reference
PTO & Hydraulics
PTO (claimed)44.7 kWReference
Pressure180.0 barReference
Total flow40.1 lpmReference
Rear TypeIIReference
Rear lift2906 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase225 cmReference
Weight3059 kgReference
Front tire7.50x16Reference
Rear tire16.9x30Reference
Ag front7.50x16Reference
Ag rear16.9x30Reference
Ag front6.50x16Reference
Ag front11.5x15.3Reference
Ag rear16.9x28Reference
Ag rear16.9x34Reference
Ag rear13.6x36Reference
Length379 cmReference
Width183 cmReference
Height (cab)264 cmReference
Height (exhaust)265 cmReference
Operating weight3059 kgReference
Electrical
Charging systemalternatorReference
Charging amps55Reference
Speeds
With 16.9x30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
