Tractor · 1995Unverified

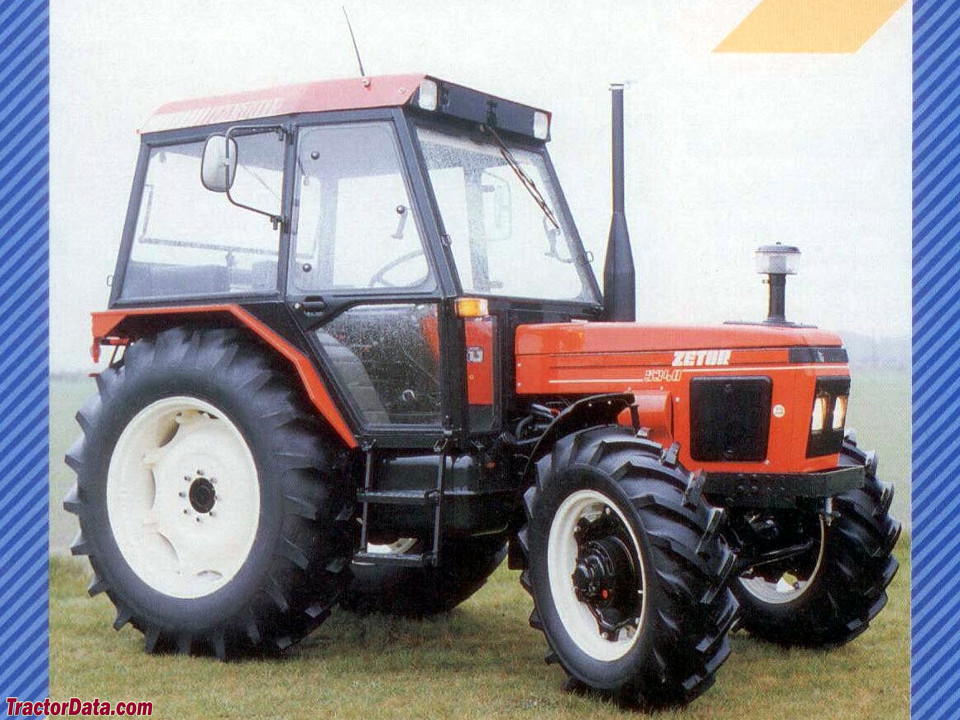

Zetor 5340
Zetor 5340 · 60 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
60 hp
Weight
3729 kg
Hover a source tag to verify
Overview
ManufacturerZetorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Hydraulic dry disc brakesReference

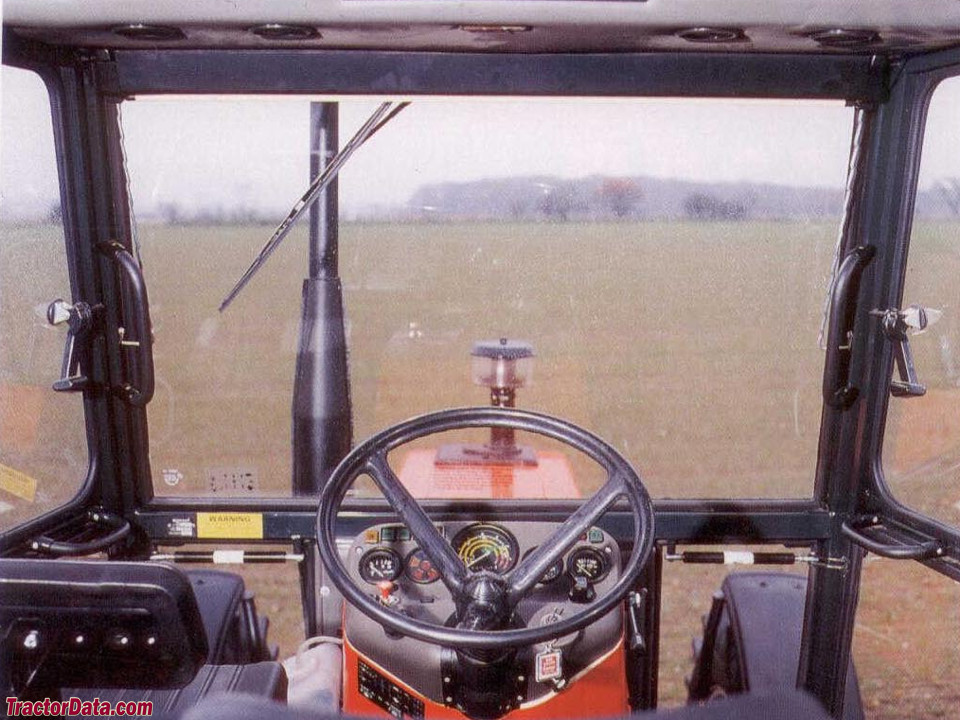

Cab standard with optional radio.Reference
Variants
53202WDReference
53404WDReference
Engine
Zetor 3.6L 4-cyl dieselReference
Zetor 7201Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.6 LReference
Bore/Stroke102 x 110 mmReference
Rated RPM2200Reference
Transmission
10-speed partially synchronizedReference
Typepartially synchronizedReference
Gears10 forward and 2 reverseReference
Five gears, plus reverse, in high and low ranges. Second through fifth gears are synchronized.Reference
PTO & Hydraulics
PTO (claimed)44.7 kWReference
Pressure180.0 barReference
Total flow40.1 lpmReference
Rear TypeIIReference
Rear lift2906 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase222 cmReference
Weight3729 kgReference
Front tire11.2x24Reference
Rear tire16.9x30Reference
Ag front11.2x24Reference
Ag rear16.9x30Reference
Ag front12.4x24Reference
Ag rear16.9x28Reference
Ag rear16.9x34Reference
Ag rear13.6x36Reference
Length379 cmReference
Width198 cmReference
Height (cab)264 cmReference
Height (exhaust)268 cmReference
Operating weight3729 kgReference
Electrical
Charging systemalternatorReference
Charging amps55Reference
Speeds
With 16.9x30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
