Tractor · 1972Unverified

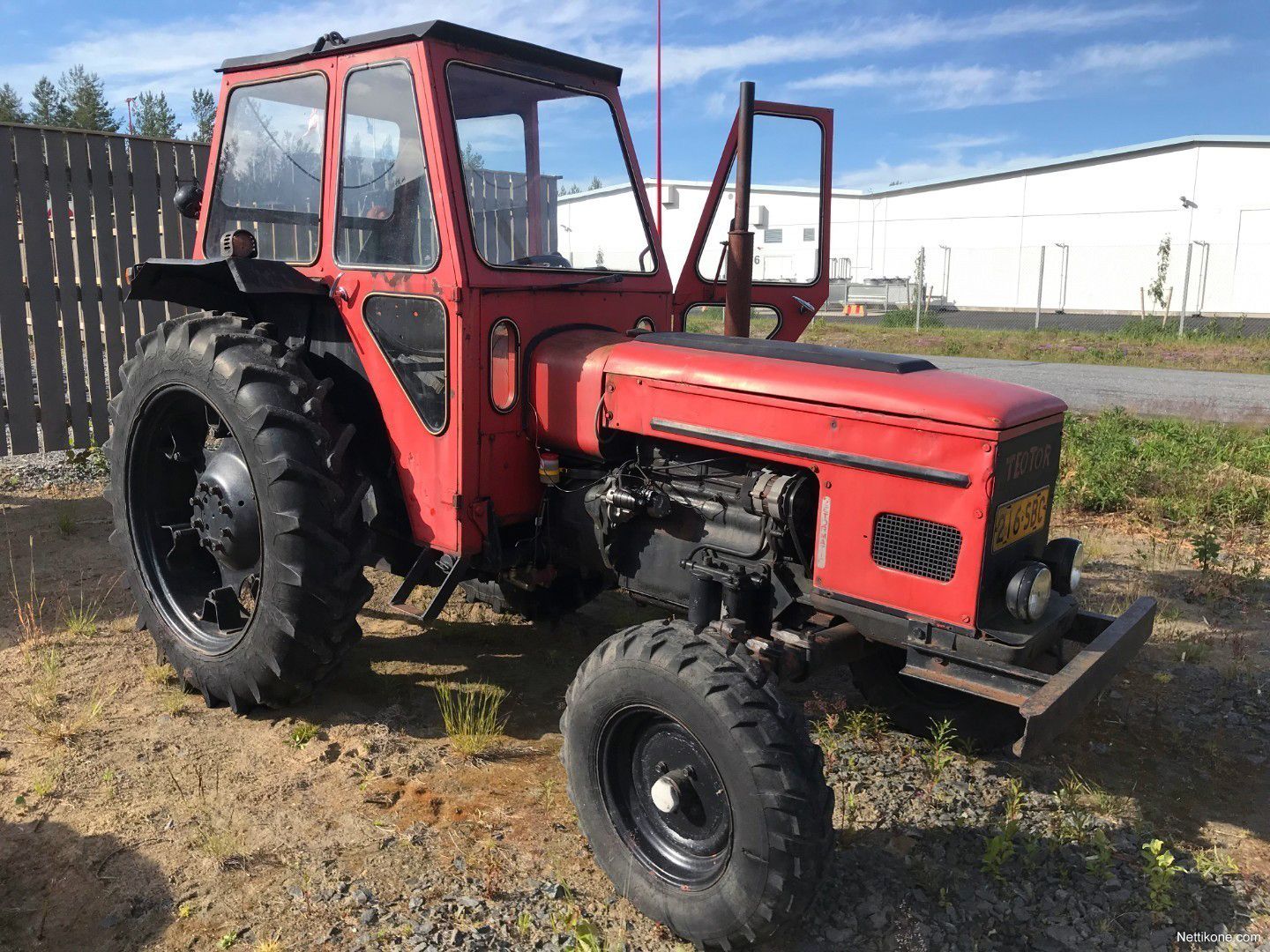

Zetor 5711
Zetor 5711 — UR1 7 Series · 49 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
49 hp
Weight
2540 kg
Hover a source tag to verify
Overview
ManufacturerZetorReference
Built in Brno, CzechoslovakiaReference
Two-wheel driveReference
Final drivesbull gearReference
Differential lockmechanical rearReference
Manual steeringReference
Differential hydraulic drum brakesReference
Trailer brakespneumaticReference
Open operator station.Reference
Variants
57112WDReference
57182WD cabReference
57454WDReference
57484WD cabReference
Engine
Zetor 3.1L 4-cyl dieselReference
Fuel tank70.0 LReference
Engine43.3 kWReference
Zetor Z5701Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.1 LReference
Bore/Stroke95 x 110 mmReference
Power43.3 kWReference
Compression17.9:1Reference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Transmission
10-speedReference
20-speed partial power shiftReference
Gears10 forward and 2 reverseReference
Typepartial power shiftReference
Gears20 forward and 4 reverseReference
The optional multi-power transmission provided a two-speed power shift between direct drive and a lower range.Reference
PTO & Hydraulics
PTO (claimed)36.2 kWReference
TypeZetormaticReference
Pressure160.0 barReference
Valves1Reference
Pump flow20.1 lpmReference
Rear TypeIIReference
Rear lift (at ends)1746 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Engine RPM540@2000Reference
Engine RPM1000@2050Reference
Dimensions
Wheelbase223 cmReference
Weight2540 kgReference
Front tire6.00-16Reference
Rear tire12.4-36Reference
Standard tires (ag)Front: 6.00-16. Rear: 12.4-36Reference
Length347 cmReference
Width127 cmReference
Height (steering wheel)162 cmReference
Ground clearance40 cmReference
Front tread129/137/175 cmReference
Rear tread142 to 177 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
