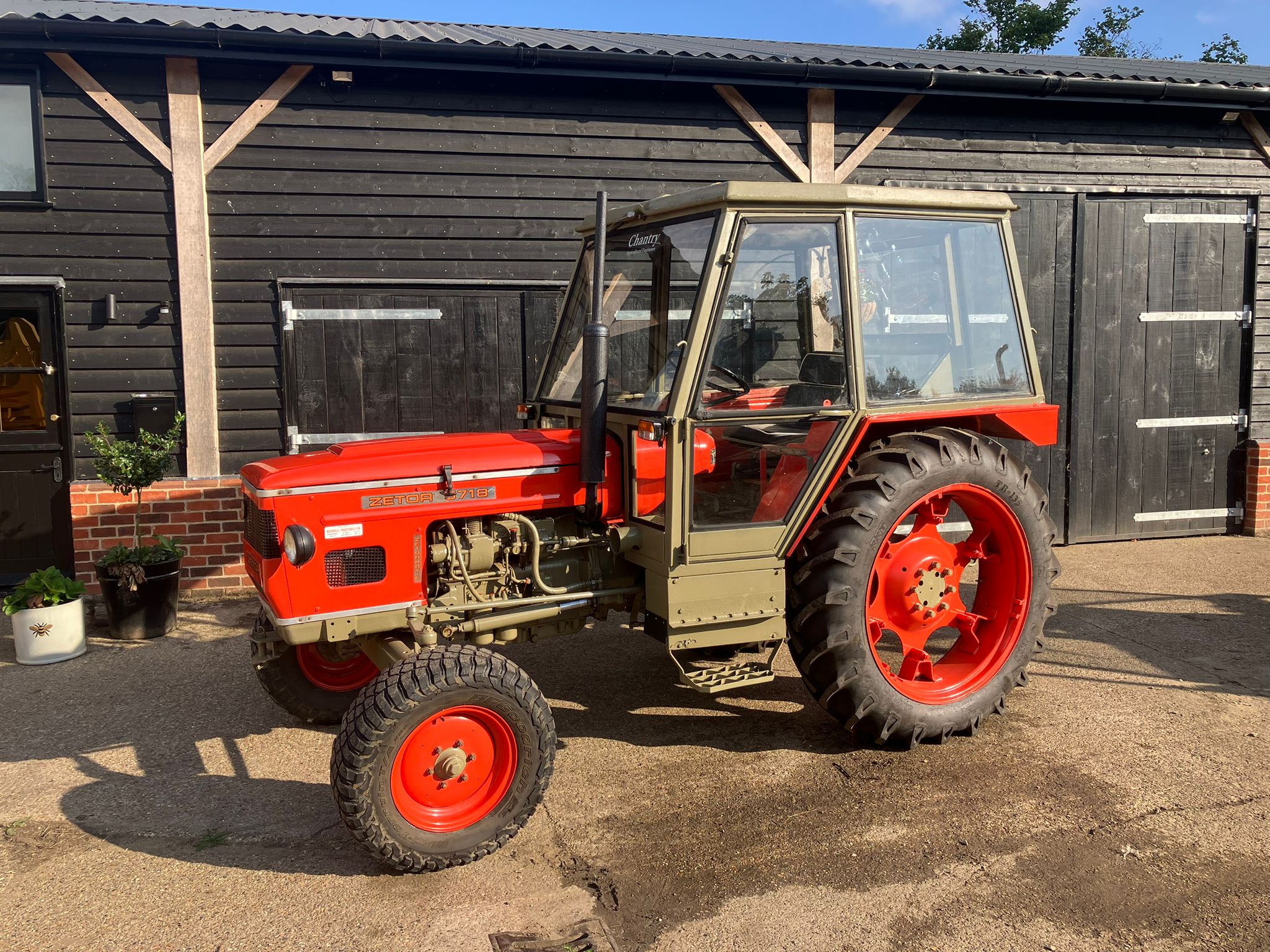

The Zetor 5718 is a tractor with a rated output of 54 hp, classifying it as one of the more compact options in its class. It was manufactured from 1972 to 1978. The 4-cylinder diesel liquid-cooled engine powers the tractor, which features a four-wheel drive with a powershift transmission. Its listed weight is 2839 kg, and it is suitable for tasks covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
54 hp
Weight
2839 kg
Catalogue coverage
Variants represented
2
Richest spec table
53 rows
Recorded power
54 hp
Recorded weight
2839 kg
Transmissions
10-speed
Production years
1972-1978
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerZetorReference
Built in Brno, CzechoslovakiaReference
Two-wheel driveReference
Differential hydraulic drum brakesReference
Trailer brakesair optionalReference
Cab standard.Reference
Variants
57112WDReference
57182WD cabReference
57454WDReference
57484WD cabReference
Engine
Zetor 3.1L 4-cyl dieselReference
Fuel tank70.0 LReference
Engine40.5 kWReference
Zetor Z-5501Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.1 LReference
Bore/Stroke95 x 110 mmReference
Power40.5 kWReference
Rated RPM2200Reference
Transmission
10-speedReference
20-speed partial power shiftReference
Gears10 forward and 2 reverseReference
Typepartial power shiftReference
Gears20 forward and 4 reverseReference
The optional multi-power transmission provided a two-speed power shift between direct drive and a lower range.Reference
PTO & Hydraulics
PTO (claimed)40.3 kWReference
TypeZetormaticReference
Pressure160.0 barReference
Valves1Reference
Pump flow20.1 lpmReference
Rear lift1700 kgReference
Rear PTOindependentReference
Rear PTO Type540/groundReference
Rear PTO Type1000Reference
Dimensions
Wheelbase224 cmReference
Weight2839 kgReference
Front tire6.50-16Reference
Rear tire13-28Reference
Ag front6.50-16Reference
Ag rear13-28Reference
Ag front7.50-16Reference
Ag rear11-32Reference
Ag rear11-36Reference
Ag rear14-28Reference
Ag rear14-30Reference
Length352 cmReference
Width179 cmReference
Height243 cmReference
Ground clearance43 cmReference
Front tread128 to 180 cmReference
Rear tread142 to 180 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
