Tractor · 1972Unverified

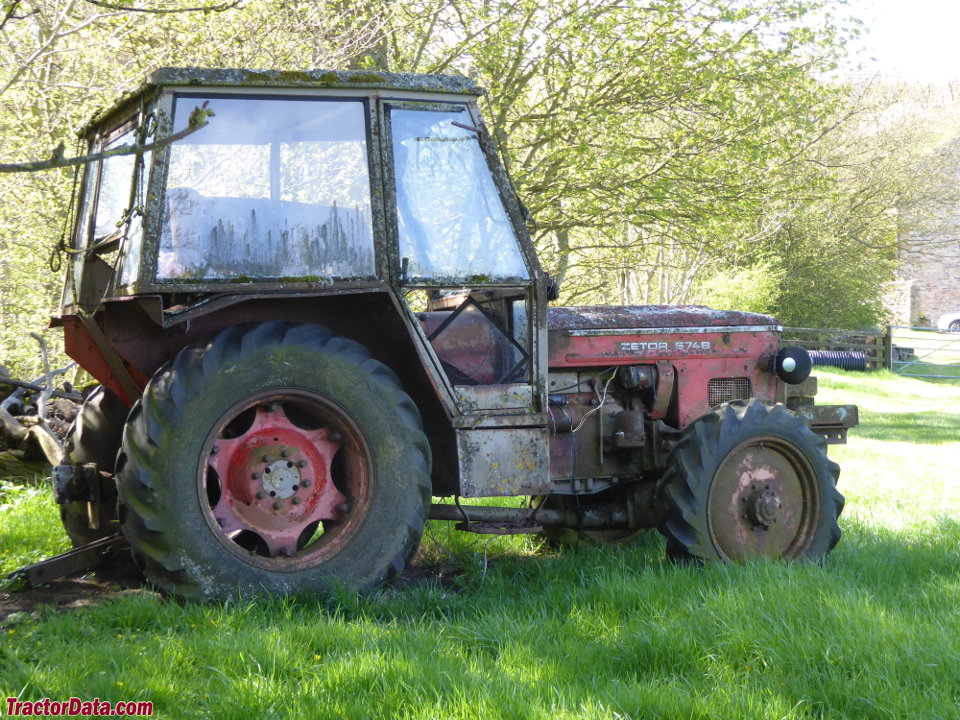

Zetor 5748
Zetor 5748 — UR1 7 Series · 54 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
54 hp
Weight
3172 kg
Hover a source tag to verify
Overview
ManufacturerZetorReference
Built in Brno, CzechoslovakiaReference
Four-wheel driveReference
Differential hydraulic drum brakesReference
Trailer brakesair optionalReference
Cab standard.Reference
Variants
57112WDReference
57182WD cabReference
57454WDReference
57484WD cabReference
Engine
Zetor 3.1L 4-cyl dieselReference
Fuel tank70.0 LReference
Engine43.3 kWReference
Zetor Z5701Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.1 LReference
Bore/Stroke95 x 110 mmReference
Power43.3 kWReference
Rated RPM2200Reference
Transmission
10-speedReference
20-speed partial power shiftReference
Gears10 forward and 2 reverseReference
Typepartial power shiftReference
Gears20 forward and 4 reverseReference
The optional multi-power transmission provided a two-speed power shift between direct drive and a lower range.Reference
PTO & Hydraulics
PTO (claimed)40.3 kWReference
TypeZetormaticReference
Pressure160.0 barReference
Valves1Reference
Pump flow20.1 lpmReference
Rear lift1700 kgReference
Rear PTOindependentReference
Rear PTO Type540/groundReference
Rear PTO Type1000Reference
Dimensions
Wheelbase224 cmReference
Weight3172 kgReference
Front tire9.5-24Reference
Rear tire12.4-36Reference
Standard tires (ag)Front: 9.5-24. Rear: 12.4-36Reference
Rear tread145 to 180 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
