Tractor · 1985Unverified

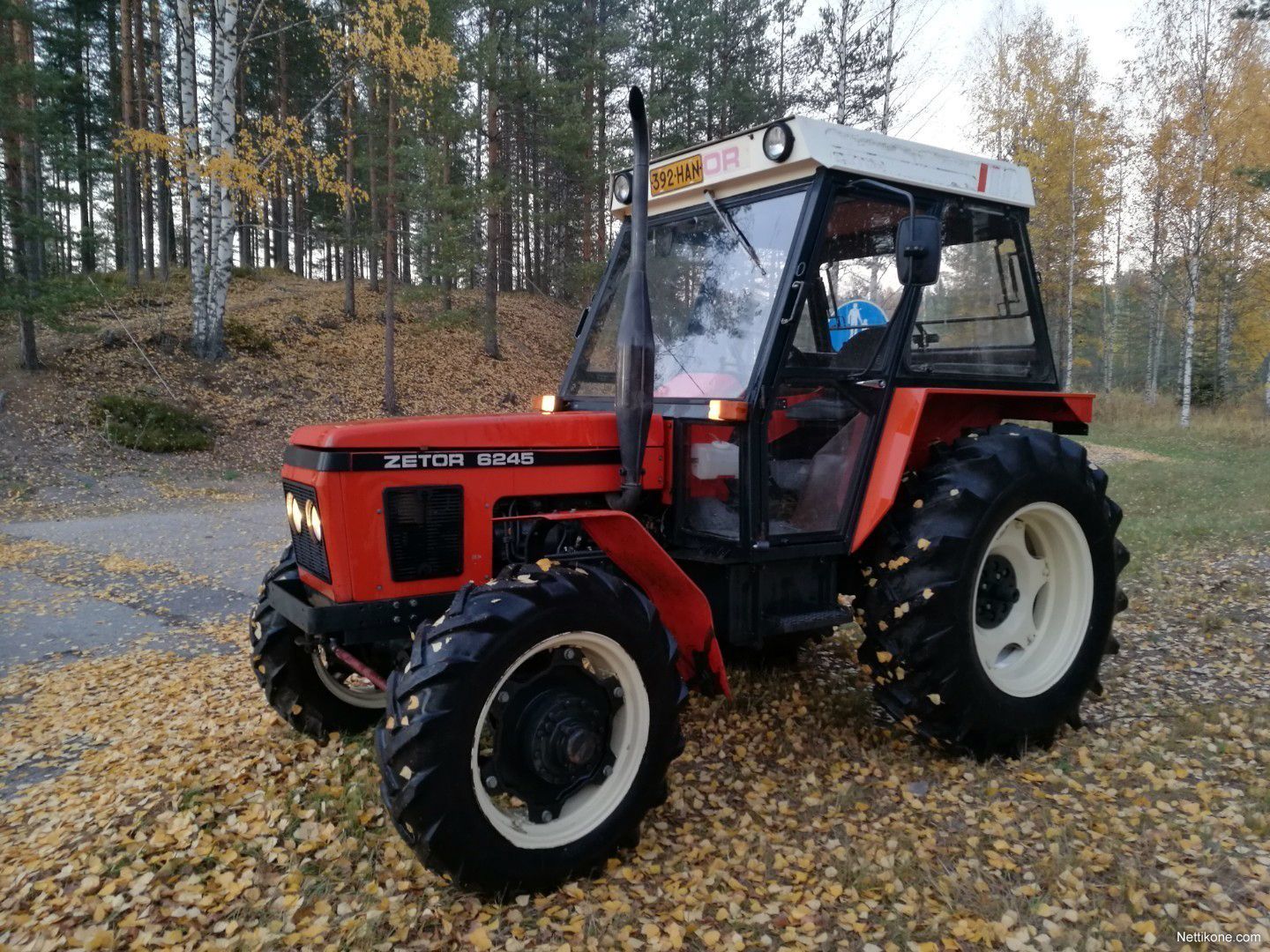

Zetor 6245
Zetor 6245 — Row-Crop tractor · 53 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
53 hp
Max power
34.8 kW
Weight
3390 kg
Hover a source tag to verify
Overview
ManufacturerZetorReference
Row-Crop tractorReference
Built in Brno, CzechoslovakiaReference
Original price$17,000 (1992)Reference
Four-wheel driveReference
Differential lockmechanical rearReference
Steeringpower assistReference
Hydraulic dry disc brakesReference
Trailer brakeshydraulic optionalReference
Cab standard with radio.Reference
Variants
62112WDReference
62454WDReference
Engine
Zetor 3.5L 4-cyl dieselReference
Fuel tank70.0 LReference
Engine45.5 kWReference
Drawbar (tested)34.8 kWReference
Zetor 6201Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.5 LReference
Bore/Stroke100 x 110 mmReference
Power45.5 kWReference
Compression17:1Reference
Rated RPM2200Reference
Idle RPM600-2400Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity13.7 LReference
Power at rated engine speed39.6 kWReference
Max power34.8 kWReference
Transmission
10-speed partially synchronizedReference
Typepartially synchronizedReference
Gears10 forward and 2 reverseReference
Five gears, plus reverse, in high and low ranges. Fourth and fifth gears are synchronized.Reference
PTO & Hydraulics
PTO (claimed)39.5 kWReference
PTO (tested)39.6 kWReference
Typeopen centerReference
Pressure160.0 barReference
Valves2Reference
Pump flow30.3 lpmReference
Total flow29.9 lpmReference
Rear TypeIIReference
Rear lift2399 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Power at rated PTO speed37.5 kWReference
Dimensions
Wheelbase223 cmReference
Weight3390 kgReference
Front tire10-24Reference
Rear tire14-30Reference
Ag front10-24Reference
Ag rear14-30Reference
Ag front11-24Reference
Ag rear11-36Reference
Ag rear14-28Reference
Ag rear12-36Reference
Length379 cmReference
Width198 cmReference
Height (cab)264 cmReference
Height (exhaust)268 cmReference
Ground clearance38 cmReference
6245 Serial Numbers
Location:Serial number plate on the right side of the dashboard.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Battery volts12Reference
Test results
Diesel 10-speed 4WDSeptember 11 - 30, 1986Link: Nebraska Tractor Test 1601 fileReference
PTO performanceReference
Fuel use12.9 l/hourReference
Fuel use11.7 l/hourReference
Drawbar performanceReference
Gear 2H used for power test.Reference
Max pull2872 kgReference
Gear 4L used for pull test.Reference
Speeds
With 14x30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
