Tractor · 1993Unverified

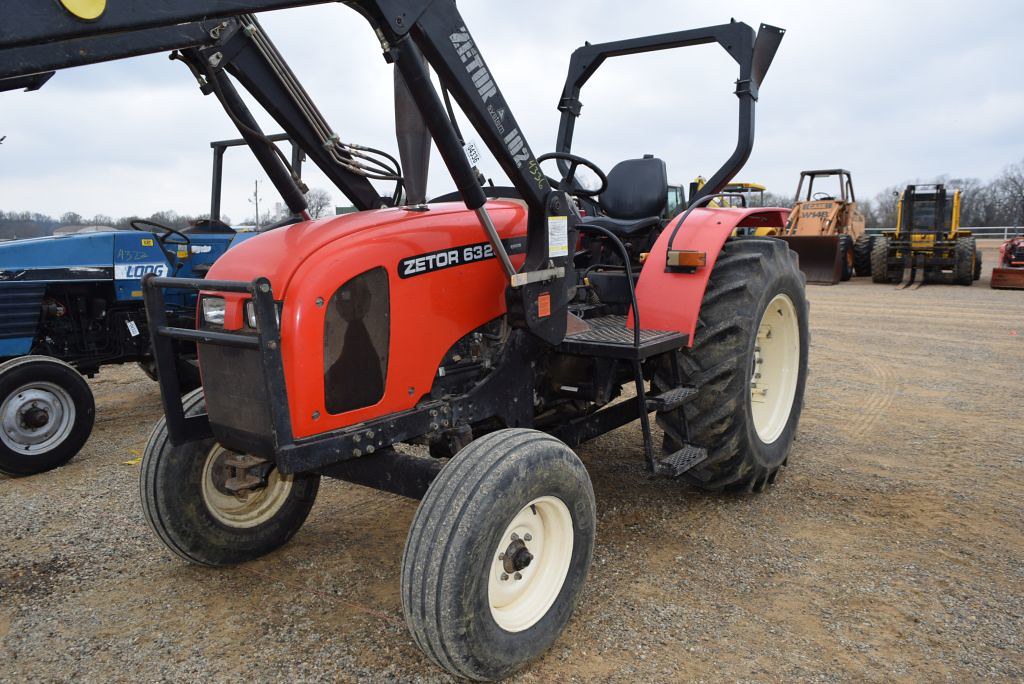

Zetor 6320
Zetor 6320 — Utility tractor · 66 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
66 hp
Max power
41.7 kW
Weight
3039 kg
Hover a source tag to verify
Overview
ManufacturerZetorReference
Utility tractorReference
Built in Brno, Czech RepublicReference
Original price was $20,700 in 1999Reference
Two-wheel driveReference
Power steeringReference
Hydraulic dry disc brakesReference
Two-post ROPS. Cab available with air-conditioning.Reference
Variants
63202WDReference
63404WDReference
Engine
Zetor 3.9L 4-cyl dieselReference
Fuel tank70.0 LReference
Engine49.2 kWReference
Drawbar (tested)41.7 kWReference
Zetor Z7701Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke102 x 120 mmReference
Power49.2 kWReference
Compression17:1Reference
Rated RPM2200Reference
Starter volts12Reference
Power at rated engine speed49.0 kWReference
Max power41.7 kWReference
Transmission
10-speed synchroReference
10-speedReference
TypesynchroReference
Gears10 forward and 2 reverseReference
Clutchhydraulic 304.8mm cerametallic discReference
Transmissionmechanical shuttleReference
Gears10 forward and reverseReference
PTO & Hydraulics
PTO (claimed)46.2 kWReference
PTO (tested)49.0 kWReference
Typeopen centerReference
Pressure179.3 barReference
Valves1 to 3Reference
Pump flow41.6 lpmReference
Total flow56.8 lpmReference
Steering flow15.1 lpmReference
Rear TypeII/IReference
Controlposition and draft controlReference
Rear lift2653 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Power at rated PTO speed46.4 kWReference
Dimensions
Wheelbase223 cmReference
Weight3039 kgReference
Front tire9.00-16Reference
Rear tire16.9-34Reference
Ag front9.00-16Reference
Ag rear16.9-34Reference
Length365 cmReference
Width185 cmReference
Height (steering wheel)187 cmReference
Height (cab)264 cmReference
Ground clearance53 cmReference
Zetor 6320 attachments
front-end loaderReference
Electrical
Charging systemalternatorReference
Charging amps55Reference
Battery CCA950Reference
Battery volts12Reference
Test results
Diesel 10-speed 4WDSeptember 11 - 30, 1986Link: Nebraska Tractor Test 1602 fileReference
PTO performanceReference
Fuel use15.1 l/hourReference
Fuel use14.0 l/hourReference
Drawbar performanceReference
Max pull3394 kgReference
Speeds
With 16.9-28 rear tires.Reference
With 16.9-28 rear tires. Reverse speeds are 10% faster than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
