Tractor · 1972Unverified

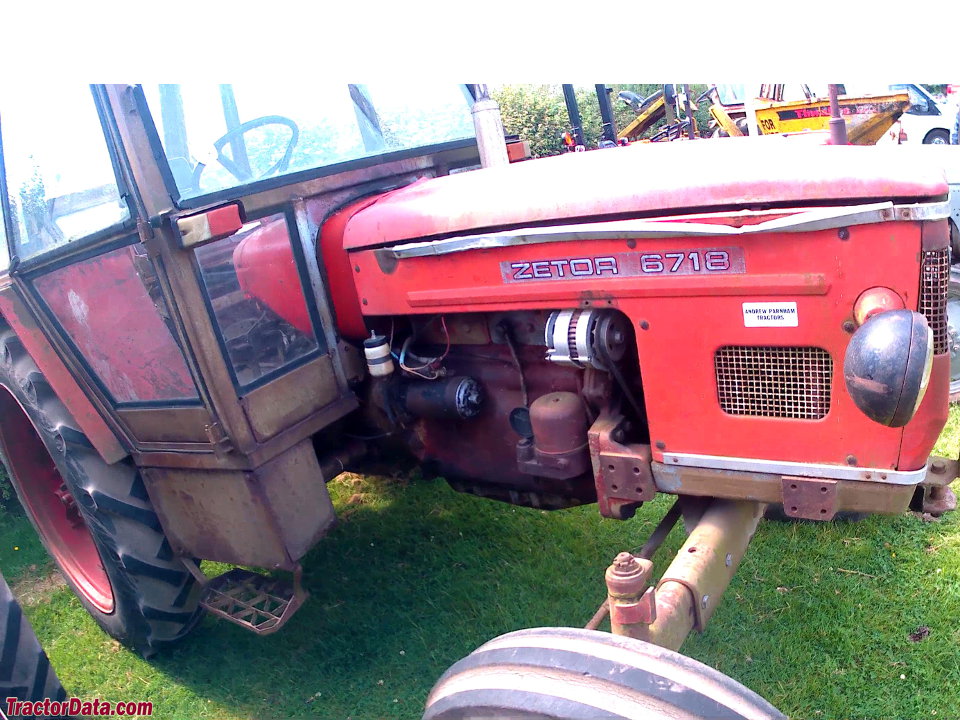

Zetor 6718
Zetor 6718 — UR1 7 Series · 60 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
60 hp
Weight
2835 kg
Hover a source tag to verify
Overview
ManufacturerZetorReference
Built in Brno, CzechoslovakiaReference
Two-wheel driveReference
Differential hydraulic drum brakesReference
Trailer brakesair optionalReference
Cab standard.Reference
Variants
67112WDReference
67182WD cabReference
67454WDReference
67484WD cabReference
Engine
Zetor 3.5L 4-cyl dieselReference
Fuel tank70.0 LReference
Engine48.5 kWReference
Zetor Z6701Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.5 LReference
Bore/Stroke100 x 110 mmReference
Power48.5 kWReference
Rated RPM2200Reference
Transmission
10-speedReference
20-speed partial power shiftReference
Gears10 forward and 2 reverseReference
Typepartial power shiftReference
Gears20 forward and 4 reverseReference
The optional multi-power transmission provided a two-speed power shift between direct drive and a lower range.Reference
PTO & Hydraulics
PTO (claimed)44.7 kWReference
TypeZetormaticReference
Pressure160.0 barReference
Valves1Reference
Pump flow20.1 lpmReference
Rear lift1749 kgReference
Rear PTOindependentReference
Rear PTO Type540/groundReference
Rear PTO Type1000 (optional)Reference
Dimensions
Wheelbase224 cmReference
Weight2835 kgReference
Front tire7.50-16Reference
Rear tire12.4-36Reference
Standard tires (ag)Front: 7.50-16. Rear: 12.4-36Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
