Tractor · 1972Unverified

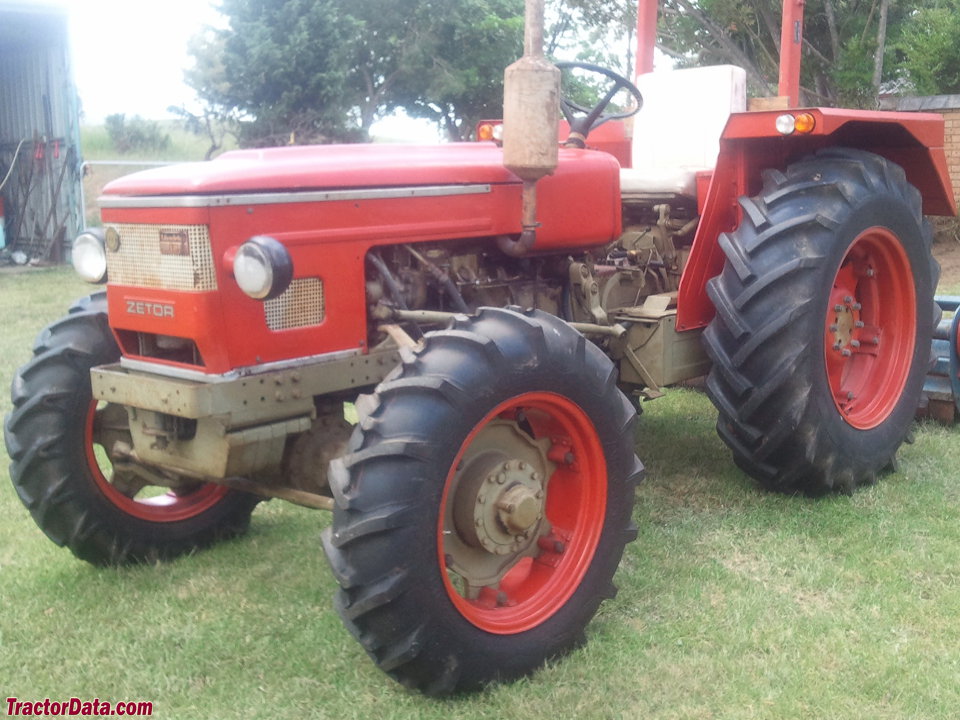

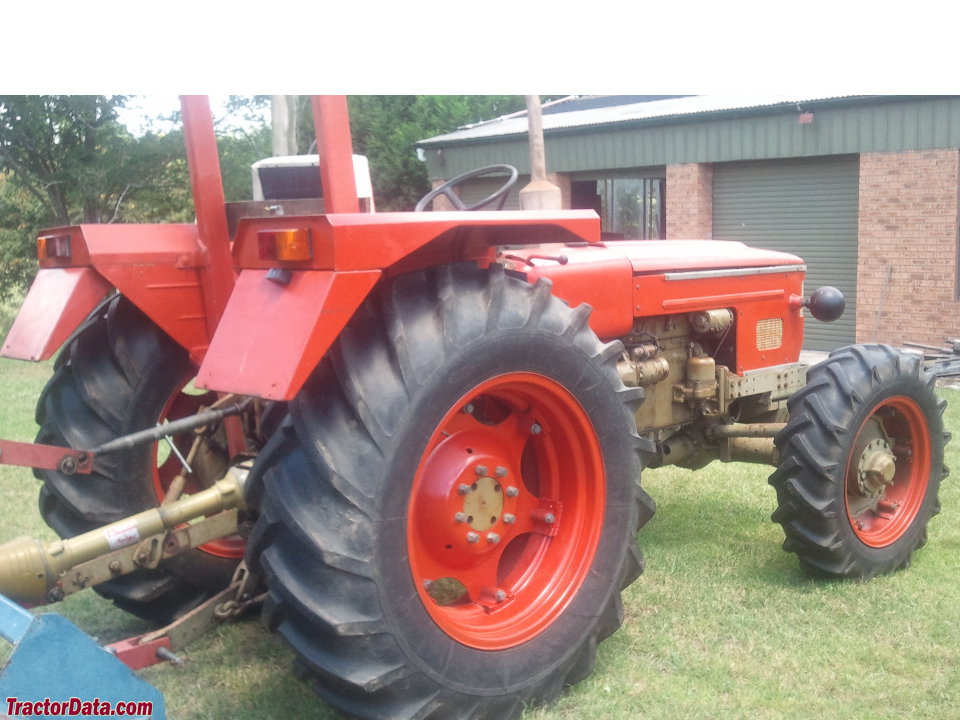

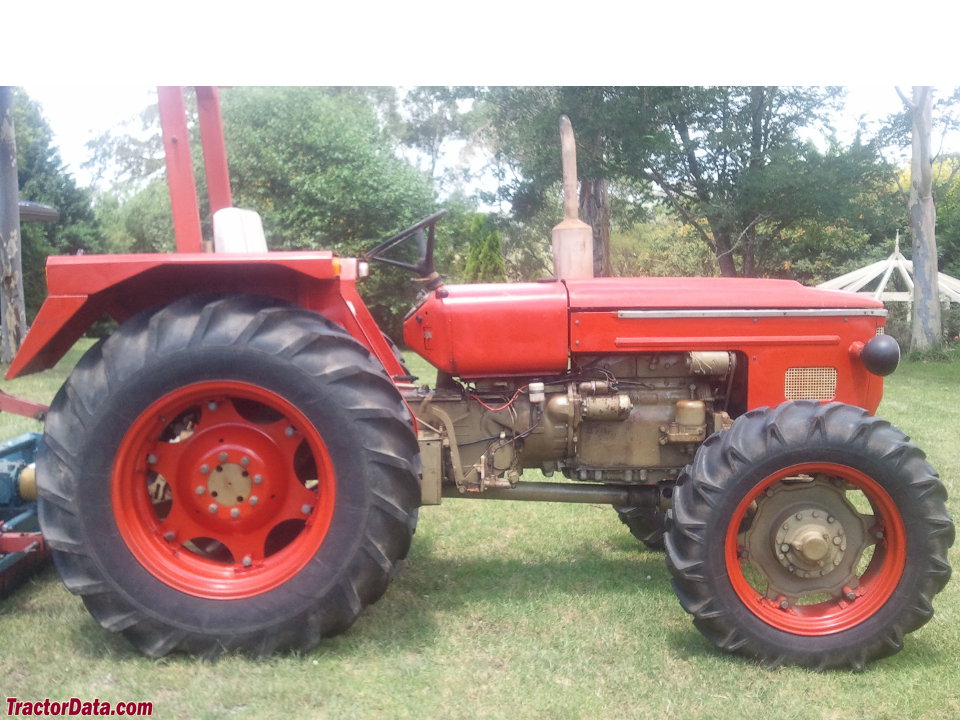

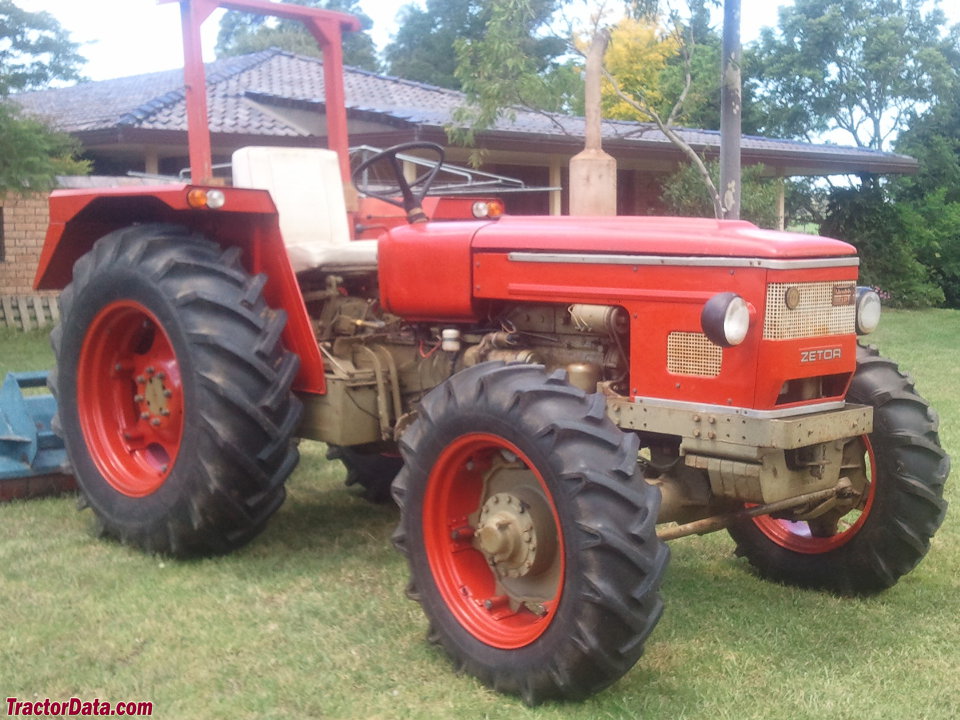

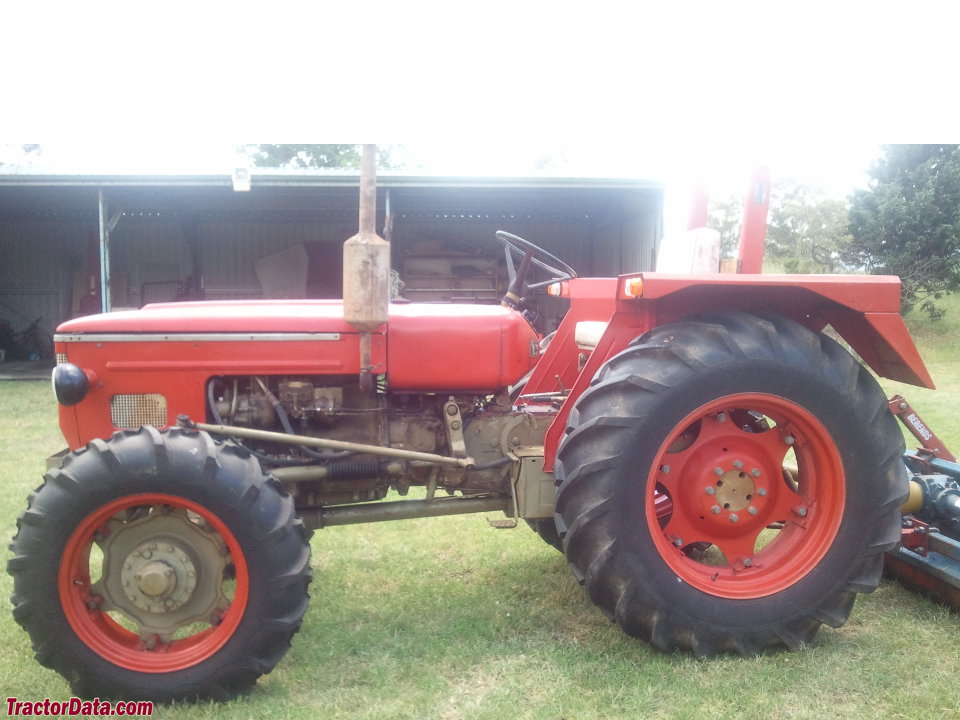

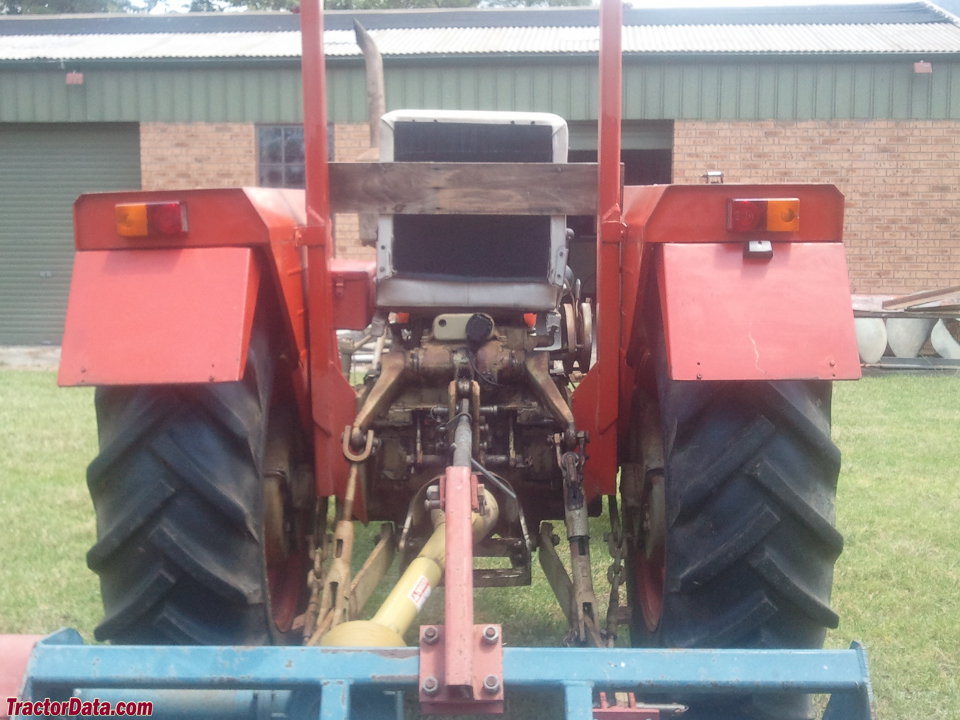

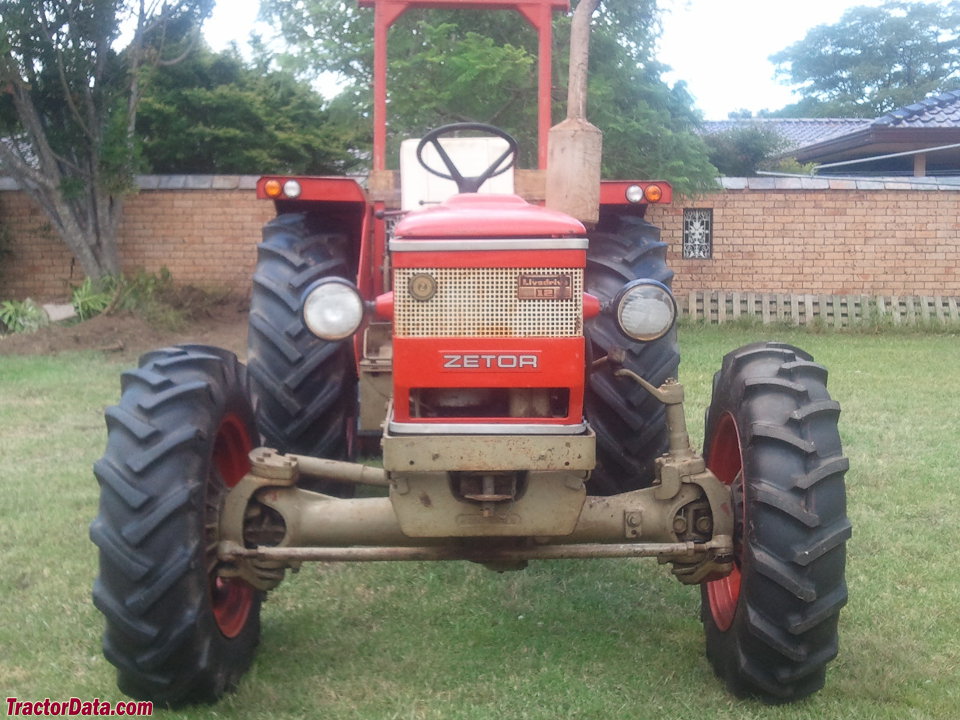

Zetor 6745
Zetor 6745 — UR1 7 Series · 60 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
60 hp
Weight
3036 kg
Hover a source tag to verify
Overview
ManufacturerZetorReference
Built in Brno, CzechoslovakiaReference
Four-wheel driveReference
Differential hydraulic drum brakesReference
Trailer brakesair optionalReference
Open operator station.Reference
Variants
67112WDReference
67182WD cabReference
67454WDReference
67484WD cabReference
Engine
Zetor 3.5L 4-cyl dieselReference
Fuel tank70.0 LReference
Engine48.5 kWReference
Zetor Z6701Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.5 LReference
Bore/Stroke100 x 110 mmReference
Power48.5 kWReference
Rated RPM2200Reference
Transmission
10-speedReference
20-speed partial power shiftReference
Gears10 forward and 2 reverseReference
Typepartial power shiftReference
Gears20 forward and 4 reverseReference
The optional multi-power transmission provided a two-speed power shift between direct drive and a lower range.Reference
PTO & Hydraulics
PTO (claimed)44.7 kWReference
TypeZetormaticReference
Pressure160.0 barReference
Valves1Reference
Pump flow20.1 lpmReference
Rear lift1749 kgReference
Rear PTOindependentReference
Rear PTO Type540/groundReference
Rear PTO Type1000Reference
Dimensions
Wheelbase224 cmReference
Weight3036 kgReference
Front tire11.2-24Reference
Rear tire12.4-36Reference
Standard tires (ag)Front: 11.2-24. Rear: 12.4-36Reference
6745 Serial Number Location
Serial number plate on the left side of the Zetor 6745 dash, below the steering wheel.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
