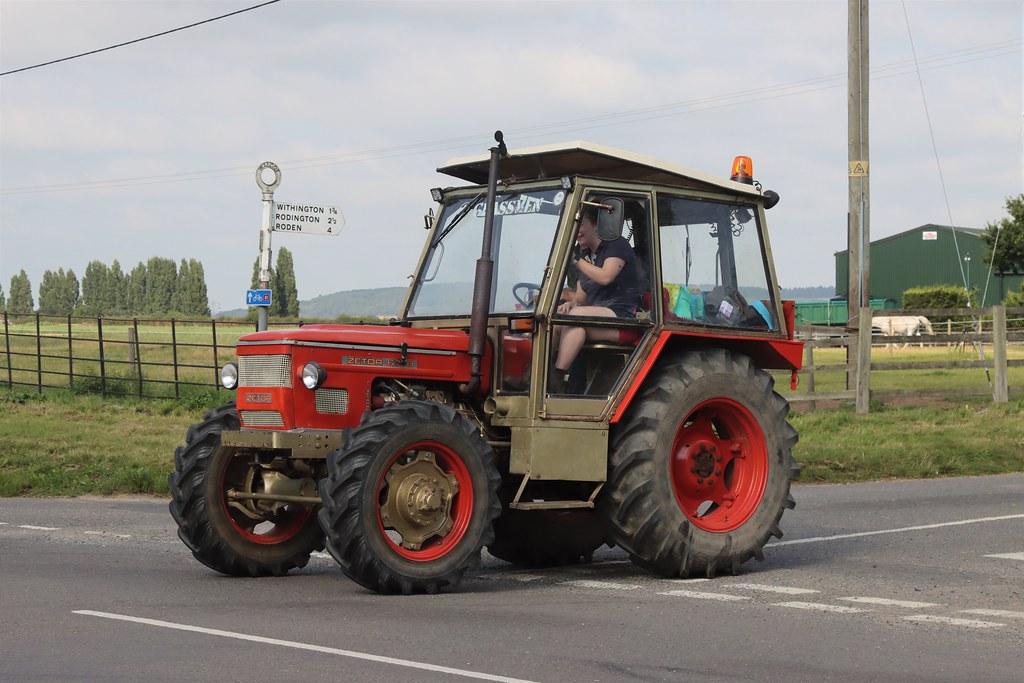

The Zetor 6748 is a compact tractor with a rated power output of 60 hp. It was produced from 1972 to 1978. The tractor features a 4-cylinder diesel liquid-cooled engine, driving through a four-wheel drive system with a powershift transmission. Its listed weight is 3246 kg and it is suitable for tasks covering areas of approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
60 hp
Weight
3246 kg
Catalogue coverage
Variants represented
2
Richest spec table
41 rows
Recorded power
60 hp
Recorded weight
3246 kg
Transmissions
10-speed
Production years
1972-1978
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerZetorReference
Built in Brno, CzechoslovakiaReference
Four-wheel driveReference
Differential hydraulic drum brakesReference
Trailer brakesair optionalReference
Cab standard.Reference
Variants
67112WDReference
67182WD cabReference
67454WDReference
67484WD cabReference
Engine
Zetor 3.5L 4-cyl dieselReference
Fuel tank70.0 LReference
Engine48.5 kWReference
Zetor Z6701Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.5 LReference
Bore/Stroke100 x 110 mmReference
Power48.5 kWReference
Rated RPM2200Reference
Transmission
10-speedReference
20-speed partial power shiftReference
Gears10 forward and 2 reverseReference
Typepartial power shiftReference
Gears20 forward and 4 reverseReference
The optional multi-power transmission provided a two-speed power shift between direct drive and a lower range.Reference
PTO & Hydraulics
PTO (claimed)44.7 kWReference
TypeZetormaticReference
Pressure160.0 barReference
Valves1Reference
Pump flow20.1 lpmReference
Rear lift1749 kgReference
Rear PTOindependentReference
Rear PTO Type540/groundReference
Rear PTO Type1000 (optional)Reference
Dimensions
Wheelbase224 cmReference
Weight3246 kgReference
Front tire11.2-24Reference
Rear tire12.4-36Reference
Standard tires (ag)Front: 11.2-24. Rear: 12.4-36Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
