Tractor · 1980Unverified

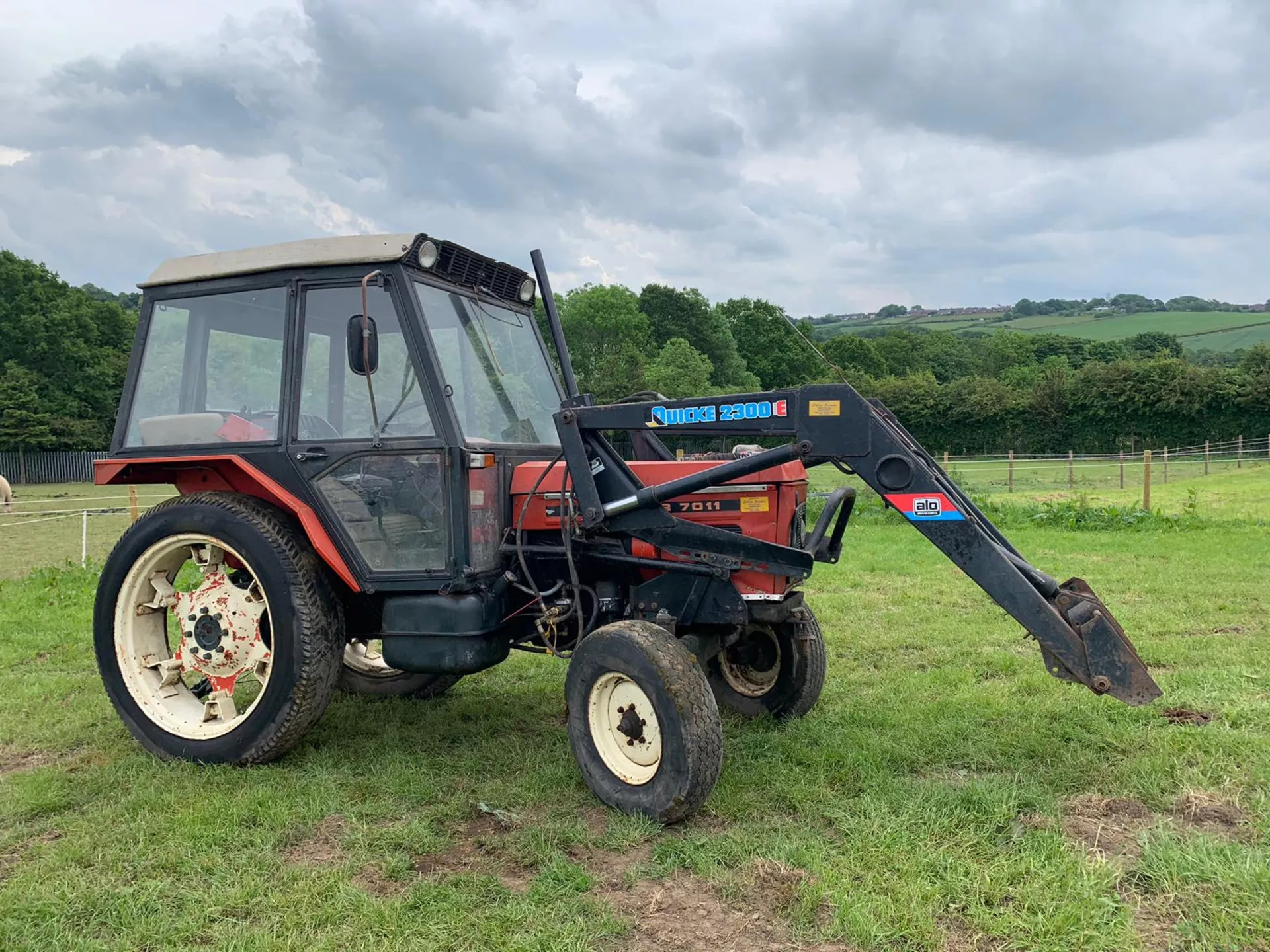

Zetor 7011
Zetor 7011 — Utility tractor · 59 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
59 hp
Weight
3020 kg
Hover a source tag to verify
Overview
ManufacturerZetorReference
Utility tractorReference
Built in Brno, CzechoslovakiaReference
Two-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
Steeringpower assistReference
Drum brakesReference
Cab standard.Reference
Variants
70112WDReference
70454WDReference
Engine
Zetor 3.6L 4-cyl dieselReference
Fuel tank70.0 LReference
Engine52.2 kWReference
Zetor Z7001Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.6 LReference
Bore/Stroke102 x 110 mmReference
Power52.2 kWReference
Air cleaneroil bathReference
Compression17:1Reference
Rated RPM2200Reference
Torque200.0 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference
Transmission
10-speed partially-synchronizedReference
Typepartially-synchronizedReference
Gears10 forward and 2 reverseReference
Clutchdry discReference
Five gears (1-5) in two ranges (low-high). Synchronized shifting between gears 4 and 5.Reference
PTO & Hydraulics
PTO (claimed)43.6 kWReference
Typeopen centerReference
Pressure146.9 barReference
Pump flow20.1 lpmReference
Rear TypeIIReference
Rear lift1700 kgReference
Rear PTOliveReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Wheelbase225 cmReference
Weight3020 kgReference
Front tire7.50-16Reference
Rear tire14-30Reference
Ag front7.50-16Reference
Ag rear14-30Reference
Ag rear14-34Reference
Ag rear12-36Reference
Length372 cmReference
Width180 cmReference
Height (cab)245 cmReference
Ground clearance36 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps35Reference
Battery volts12Reference
Battery AH150Reference
Speeds
With 14-30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
