Tractor · 1995Unverified

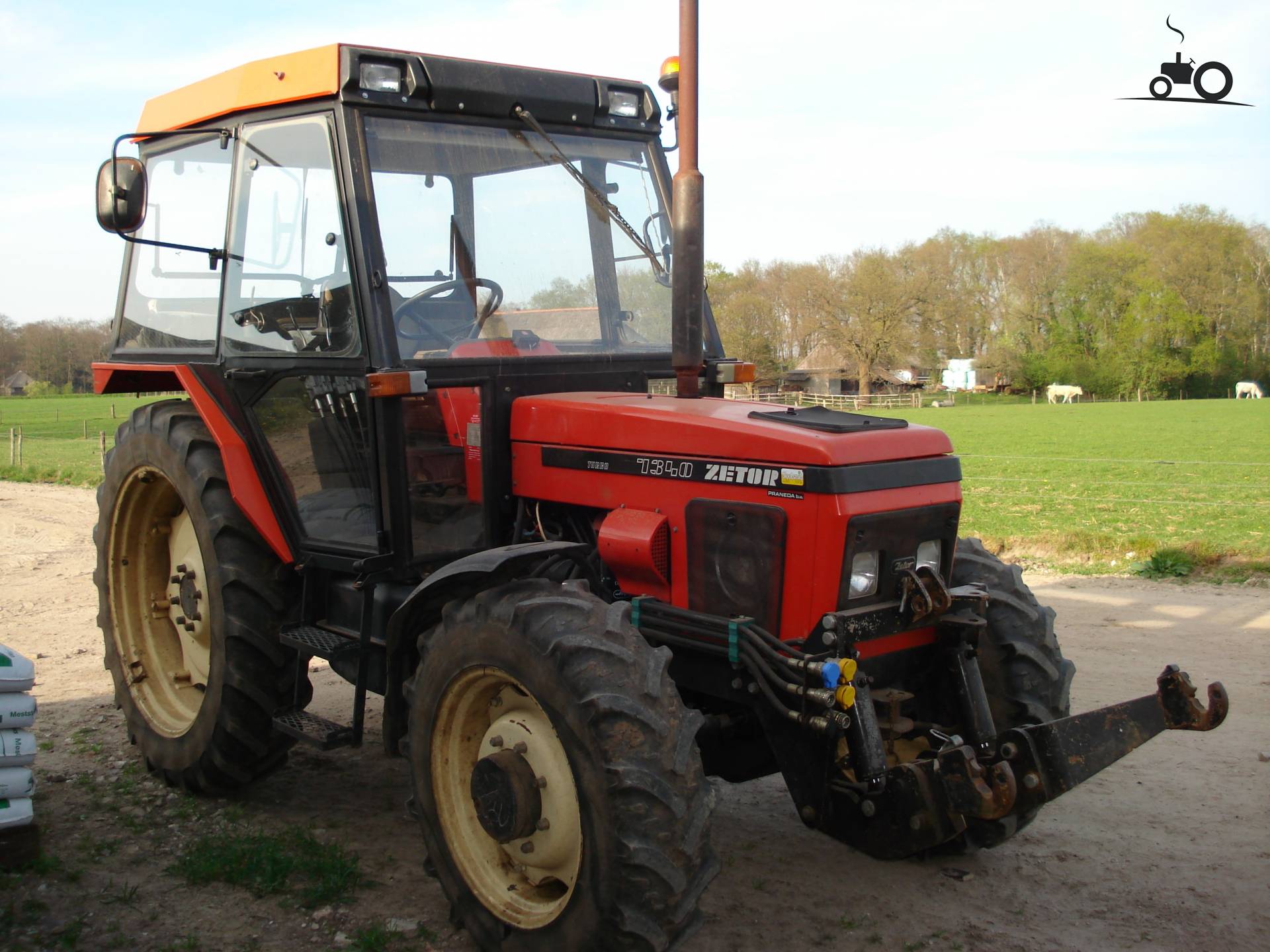

Zetor 7340
Zetor 7340 — Utility tractor · 73 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
73 hp
Weight
3628 kg
Hover a source tag to verify
Overview
ManufacturerZetorReference
Utility tractorReference
Built in Brno, Czech RepublicReference
Original price was $28,500 in 1999Reference
Four-wheel driveReference
Power steeringReference
Hydraulic dry disc brakesReference
Two-post ROPS. Cab available with air-conditioning.Reference
Variants
73202WDReference
73404WDReference
Engine
Zetor 3.9L 4-cyl dieselReference
Fuel tank94.6 LReference
Engine58.2 kWReference
Zetor Z7301Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke102 x 120 mmReference
Power58.2 kWReference
Rated RPM2200Reference
Torque280.7 NmReference
Torque RPM1420Reference
Starter volts12Reference
Transmission
10-speed synchroReference
10-speedReference
TypesynchroReference
Gears10 forward and 2 reverseReference
Clutchhydraulic 304.8mm cerametallic discReference
Transmissionmechanical shuttleReference
Gears10 forward and reverseReference
PTO & Hydraulics
PTO (claimed)54.4 kWReference
Typeopen centerReference
Pressure179.3 barReference
Valves1 to 3Reference
Pump flow41.6 lpmReference
Total flow56.8 lpmReference
Steering flow15.1 lpmReference
Rear TypeII/IReference
Controlposition and draft controlReference
Rear lift2653 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase223 cmReference
Weight3628 kgReference
Front tire12.4-24Reference
Rear tire16.9-34Reference
Ag front12.4-24Reference
Ag rear16.9-34Reference
Length365 cmReference
Width185 cmReference
Height (steering wheel)190 cmReference
Height (cab)266 cmReference
Ground clearance43 cmReference
Zetor 7340 attachments
front-end loaderReference
Electrical
Charging systemalternatorReference
Charging amps55Reference
Battery CCA950Reference
Battery volts12Reference
Speeds
With 16.9-28 rear tires.Reference
With 16.9-28 rear tires. Reverse speeds are 10% faster than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
