Tractor · 2008Unverified

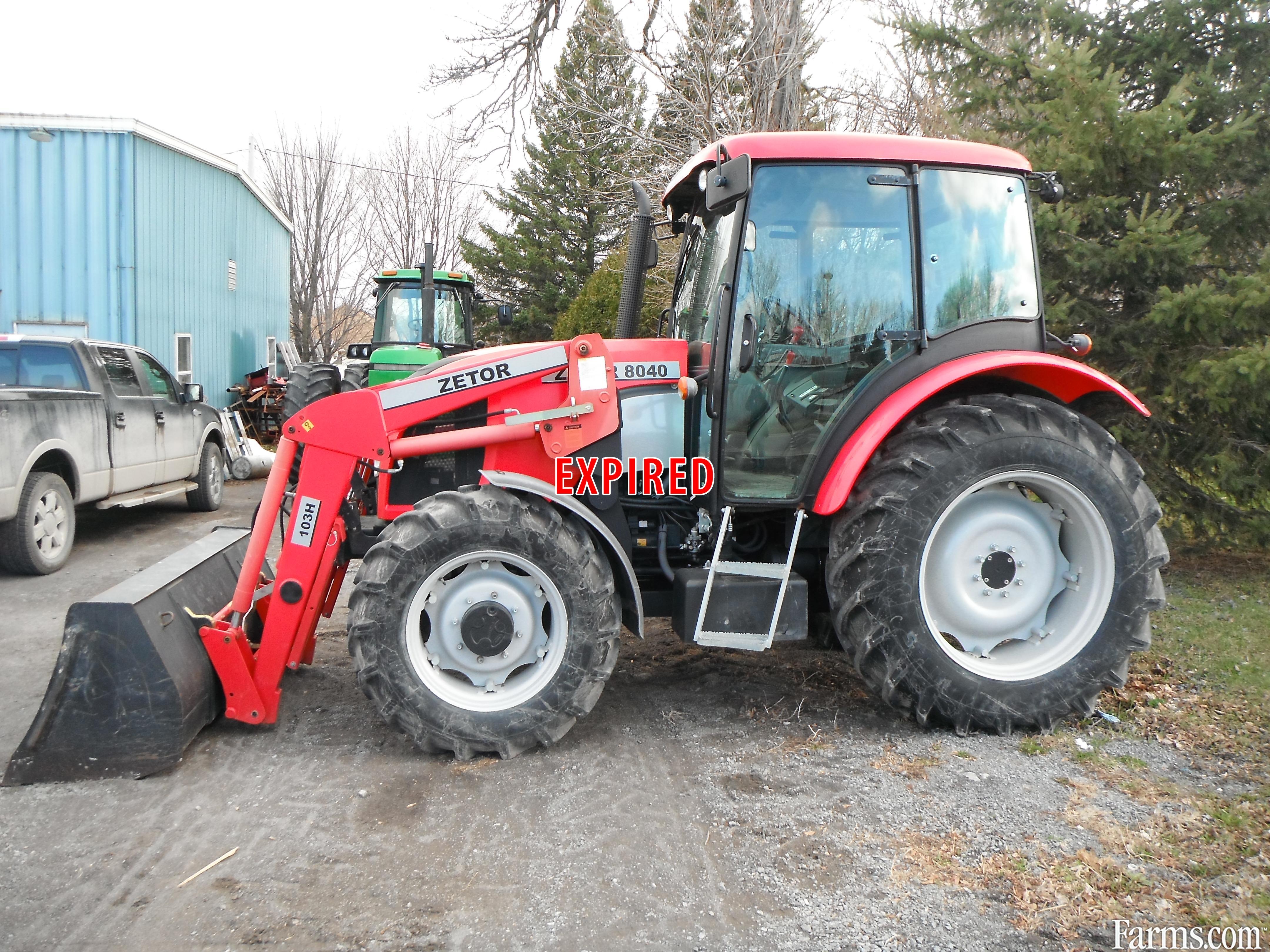

Zetor 8040

Name: Zetor 8040
Brand: Zetor

Zetor 8040 — Silver Series · 82 hp. Reference specifications; pending source verification.

The Zetor 8040 is a tractor rated at 82 hp, positioned in the middle of its class for power output. Manufactured from 2008 to 2011, this model features a 4-cylinder turbocharged diesel liquid-cooled engine. The engine is connected to a 12-speed gearbox and four-wheel drive system, and the listed weight ranges from 7840 to 8340 pounds. It is suitable for land areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

82 hp

Max power

82 hp

Weight

7840 to 8340 pounds

Catalogue coverage

Variants represented

Richest spec table

111 rows

Recorded power

82 hp

Recorded weight

3556 kg

Transmissions

12-speed synchronized

Production years

2008-2011

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerZetorReference

Built in Brno, Czech RepublicReference

Four-wheel driveReference

Differential lockmechanical rearReference

Differential locklimited-slip frontReference

Power steeringReference

Hydraulic wet disc brakesReference

Two-post folding ROPS. Cab optional with air-conditioning.Reference

Variants

80202WDReference

80404WDReference

Engine

Zetor 4.2L 4-cyl dieselReference

ROPS Fuel tank83.3 LReference

Cab Fuel tank128.7 LReference

Engine (gross)61.1 kWReference

Engine (net)58.2 kWReference

ZetorReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.2 LReference

Bore/Stroke105 x 120 mmReference

Power (net)58.2 kWReference

Power (gross)61.1 kWReference

Rated RPM2200Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,200 RPMReference

Bore and stroke4.13x4.72 inchesReference

Cooling systemliquid-cooledReference

Transmission

12-speed synchronizedReference

TypesynchronizedReference

Gears12 forward and reverseReference

Clutch304.8mm hydraulic cerametallic discReference

Synchronized transmission with mechanical shuttle.Reference

Transmission TypeSync ShuttleReference

forward and reverse optionsSynchronized: 12 F and 12 RReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)54.4 kWReference

Typeopen centerReference

Pressure200.0 barReference

Valves1 to 3Reference

SCV flow53.0 lpmReference

SCV flow64.3 lpmReference

Total flow75.7 lpmReference

Steering flow22.7 lpmReference

Rear TypeII/IReference

Controlposition and draft controlReference

Rear lift (at ends)3447 kgReference

Rear lift (at ends)4150 kgReference

Rear PTOindependentReference

ClutchmechanicalReference

Rear PTO Type540 (1.375)Reference

Dimensions

Wheelbase226 cmReference

Weight7840 to 8340 poundsReference

Front tire11.2-24Reference

Rear tire16.9-30Reference

Standard tires (ag)Front: 11.2-24. Rear: 16.9-30Reference

Length386 cmReference

Width185 cmReference

Height (ROPS)266 cmReference

Height (cab)266 cmReference

ROPS Weight3556 kgReference

Cab Weight3783 kgReference

Ground clearance43 cmReference

Front tread149 to 195 cmReference

Rear tread142 to 180 cmReference

Zetor 8040 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

ROPS Charging amps55Reference

Cab Charging amps95Reference

Charging volts12Reference

Battery CCA950Reference

Battery volts12Reference

Total cold cranking amps950 CCAReference

Attachment overview

Zetor 120K loaderReference

Zetor 120SLi loaderReference

Speeds

With 16.9-34 rear tires. Reverse speeds are 9% faster than forward.Reference

General

Make & ModelZetorReference

SCV controlJoystickReference

Rollover protective structureTwo-post folding ROPS.Reference

Country of manufacturerBrno, Czech RepublicReference

Capacities

Capacity254 ciReference

Fuel tank128.7 LReference

Power

Max Power82 hpReference

Rated Power78 hpReference

PTO

PTO Power73 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Steering & brakes

Brakeshydraulic wet discReference

Steering typepowerReference

Hydraulics

Pump Rated Output (total)20 gpmReference

Hydraulics Typeopen centerReference

Maximum operating pressure2,900 psiReference

Remote Valves1 to 3 ValvesReference

Steering & Implements flow6 gpmReference

Rear Hitch category (SAE designation)Category II/IReference

Rear Hitch maximum lift capacity4,150.4 kgReference

Rear Hitch Sensing Typeposition and draft controlReference

Dimensions & weight

Height Over Cab266.7 cmReference

Height Over ROPS266.7 cmReference

Overall Length386.1 cmReference

Overall Width185.4 cmReference

Overall weight3,556.2 kgReference

Wheels & tyres

Rear Wheel TypeAg rear - 16.9-30Reference

Rear wheel tread range56 to 71 inchesReference

Front Wheel TypeAg front - 11.2-24.Reference

Front Wheel tread range59 to 77 inchesReference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
