Tractor · 1995Unverified

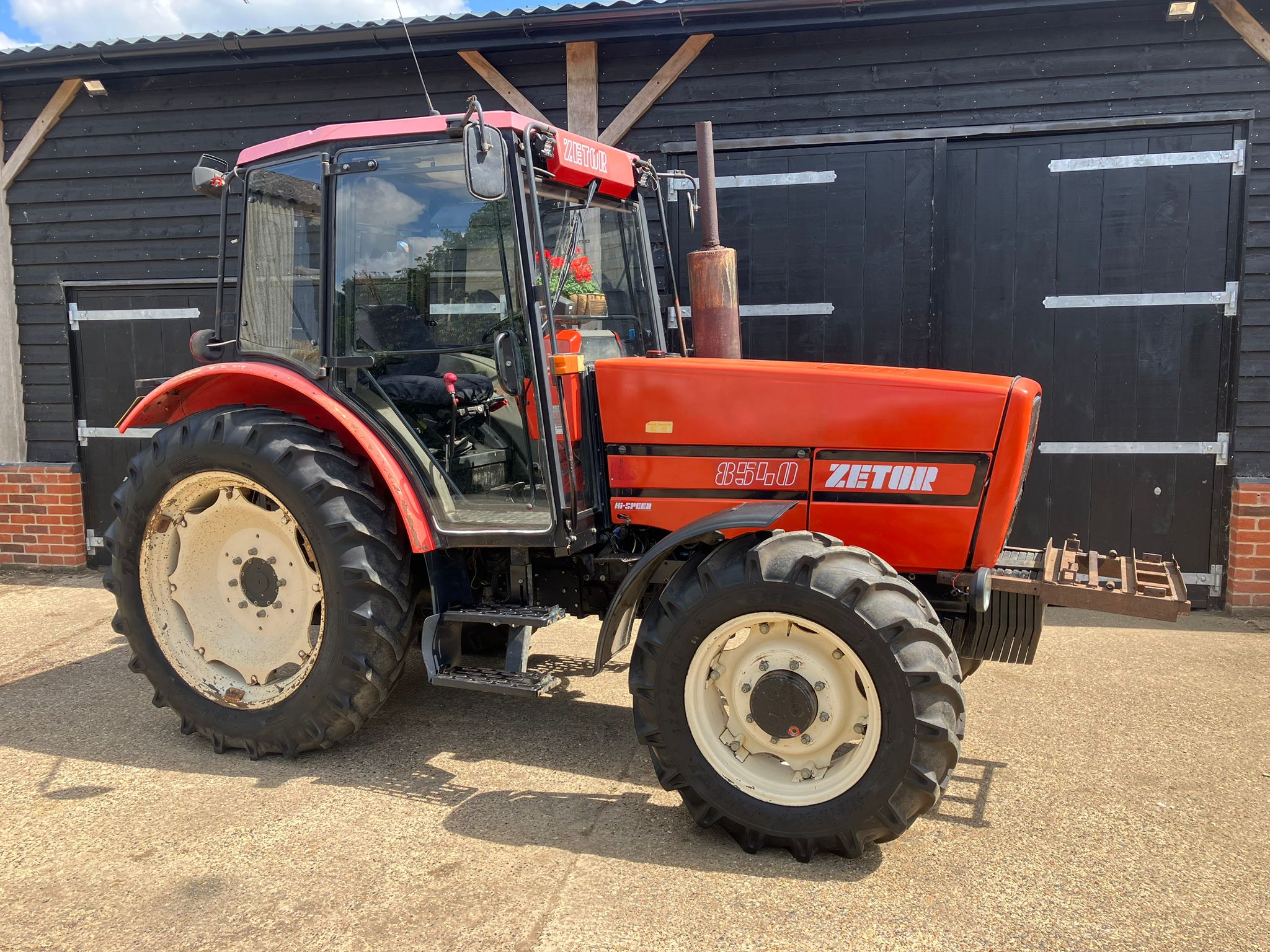

Zetor 8540
Zetor 8540 — Range 3 Series · 76 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
76 hp
Weight
3717 kg
Hover a source tag to verify
Overview
ManufacturerZetorReference
Built in Brno, Czech RepublicReference
Original price$34,000 (1995)Reference
Four-wheel driveReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Cab standard with heater.Reference
Variants
85202WDReference
85404WDReference
Engine
Zetor 4.2L 4-cyl dieselReference
Engine59.7 kWReference
Zetor Z 1201Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
Power59.7 kWReference
Rated RPM2200Reference
Starter volts12Reference
Starter power3.4 kWReference
Transmission
16-speedReference
18-speed synchromeshReference
Gears16 forward and 4 reverseReference
TypesynchromeshReference
Gears18 forward and 6 reverseReference
Three gears in high/low/reverse ranges with a three-speed torque multiplier.Reference
PTO & Hydraulics
PTO (claimed)56.7 kWReference
TypeopenReference
Pressure184.9 barReference
Valves3Reference
Total flow60.0 lpmReference
Rear TypeIIReference
Rear lift3900 kgReference
Front HitchoptionalReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase237 cmReference
Weight3717 kgReference
Front tire12.4-24Reference
Rear tire16.9-34Reference
Ag front12.4-24Reference
Ag rear16.9-34Reference
Ag rear13.6-38Reference
Length389 cmReference
Width192 cmReference
Height (cab)264 cmReference
Height (exhaust)277 cmReference
Ground clearance37 cmReference
Rear tread150 to 180 cmReference
Electrical
Charging systemalternatorReference
Charging amps55Reference
Charging volts12Reference
Battery volts12Reference
Speeds
With 16.9x38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
