Tractor · 1996Unverified

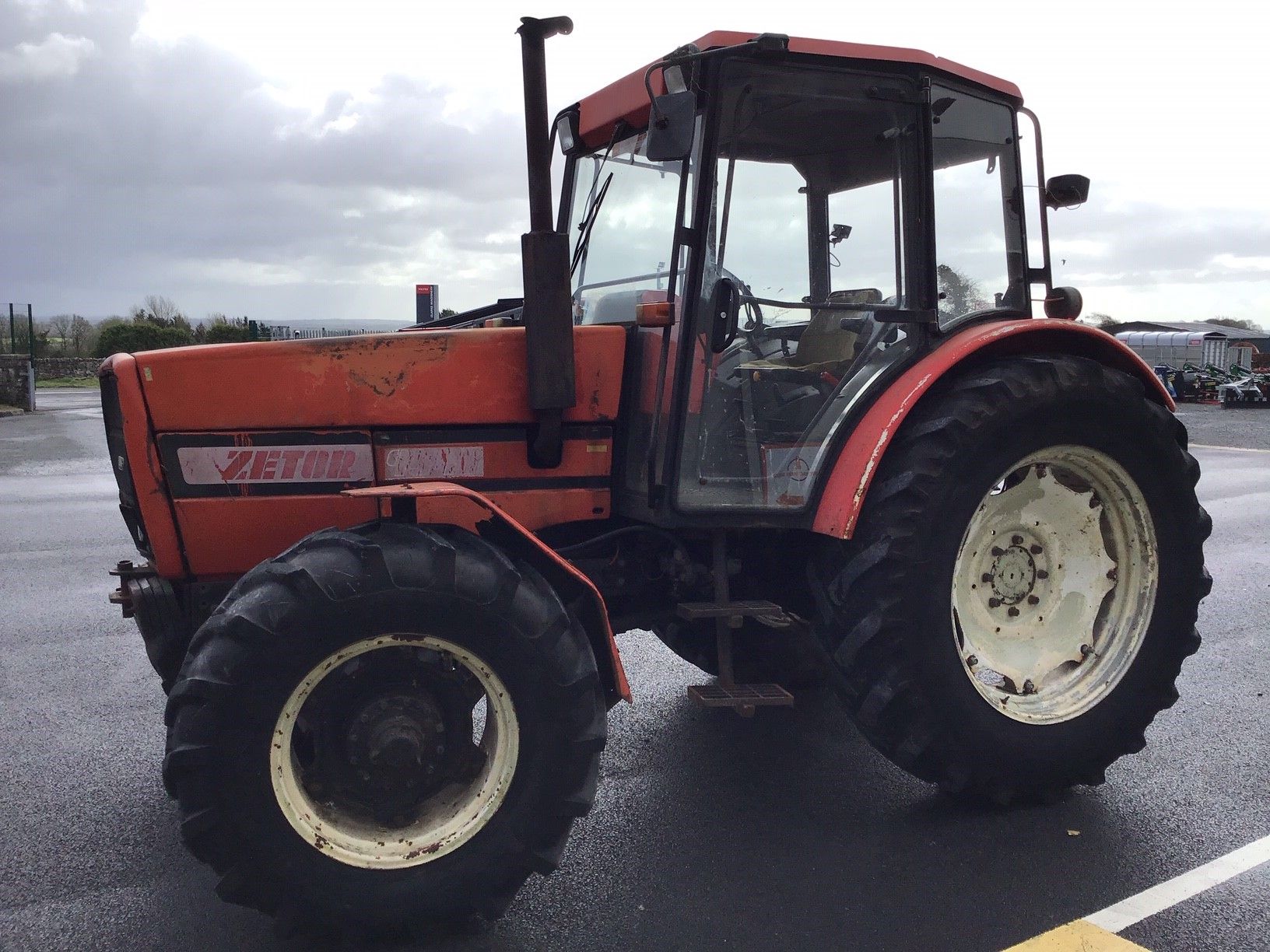

Zetor 9620
Zetor 9620 — Row-Crop tractor · 83 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
83 hp
Weight
3370 kg
Hover a source tag to verify
Overview
ManufacturerZetorReference
Row-Crop tractorReference
Built in Brno, Czech RepublicReference
Original price was $35,000 in 1999Reference
Two-wheel driveReference
Differential lockelectro-hydraulic rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with available air-conditioning. Two-post ROPS available.Reference
Variants
96202WDReference
96404WDReference
Engine
Zetor 4.2L 4-cyl dieselReference
Fuel tank106.0 LReference
Engine68.6 kWReference
Zetor Z 1001Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
Power68.6 kWReference
Fuel systemdirect injectionReference
Pre-heatingglow plugsReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Transmission
18-speed synchromeshReference
TypesynchromeshReference
Gears18 forward and 6 reverseReference
Clutch330mm hydraulic dry discReference
Three gears in high/low/reverse ranges with a three-speed torque multiplier.Reference
PTO & Hydraulics
PTO (claimed)61.9 kWReference
Typeopen centerReference
Pressure179.3 barReference
Valves3Reference
Pump flow60.6 lpmReference
Steering flow24.6 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift4082 kgReference
Rear PTOindependentReference
Clutchwet discReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Wheelbase237 cmReference
Weight3370 kgReference
Front tire9.00-16Reference
Rear tire16.9-38Reference
Ag front9.00-16Reference
Ag rear16.9-38Reference
Length396 cmReference
Width193 cmReference
Height (cab)266 cmReference
Ground clearance52 cmReference
Front tread142 to 180 cmReference
Rear tread149 to 180 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Battery CCA1150Reference
Battery volts12Reference
Speeds
With 16.9-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
