Tractor · 1996Unverified

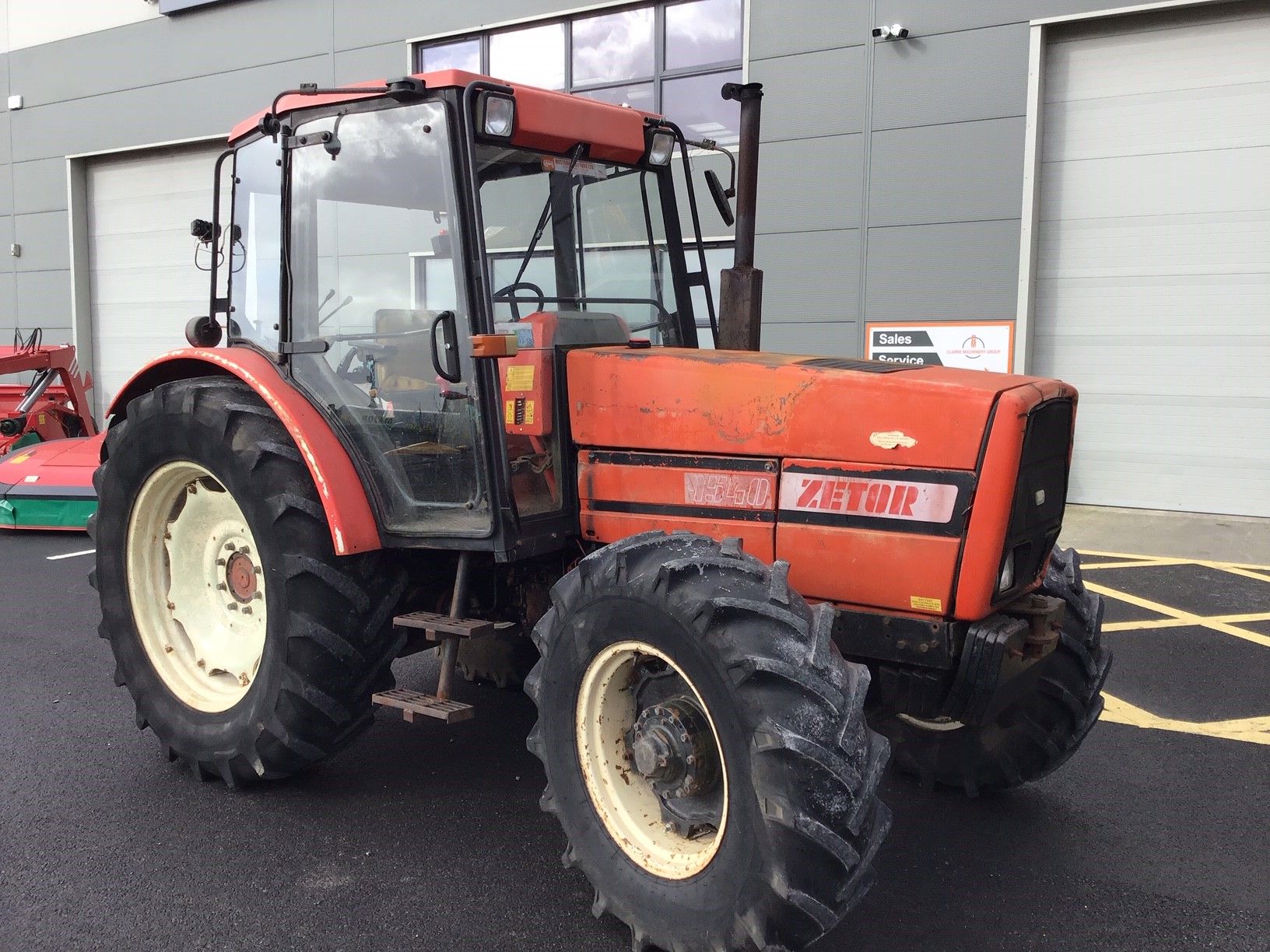

Zetor 9640

Name: Zetor 9640
Brand: Zetor

Zetor 9640 — Row-Crop tractor · 83 hp. Reference specifications; pending source verification.

The Zetor 9640 is a tractor with a rated output of 83 hp, positioning it in the middle of its class for power. It was manufactured from 1996 to 1999. The 9640 is equipped with a 4-cylinder turbocharged diesel liquid-cooled engine, which drives through four-wheel drive via an 18-speed gearbox. Its listed weight is 3823 kg, suitable for tasks covering approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

83 hp

Weight

3823 kg

Catalogue coverage

Variants represented

Richest spec table

61 rows

Recorded power

83 hp

Recorded weight

3823 kg

Transmissions

18-speed synchromesh

Production years

1996-1999

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerZetorReference

Row-Crop tractorReference

Built in Brno, Czech RepublicReference

Original price was $40,000 in 1999Reference

Four-wheel driveReference

Differential lockelectro-hydraulic rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard with available air-conditioning. Two-post ROPS available.Reference

Variants

96202WDReference

96404WDReference

Engine

Zetor 4.2L 4-cyl dieselReference

Fuel tank106.0 LReference

Engine68.6 kWReference

Zetor Z 1001Reference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.2 LReference

Bore/Stroke105 x 120 mmReference

Power68.6 kWReference

Fuel systemdirect injectionReference

Pre-heatingglow plugsReference

Rated RPM2200Reference

StarterelectricReference

Starter volts12Reference

Transmission

18-speed synchromeshReference

TypesynchromeshReference

Gears18 forward and 6 reverseReference

Clutch330mm hydraulic dry discReference

Three gears in high/low/reverse ranges with a three-speed torque multiplier.Reference

PTO & Hydraulics

PTO (claimed)61.9 kWReference

Typeopen centerReference

Pressure179.3 barReference

Valves3Reference

Pump flow60.6 lpmReference

Steering flow24.6 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift4082 kgReference

Rear PTOindependentReference

Clutchwet discReference

Rear PTO Type540/1000 (1.375)Reference

Dimensions

Wheelbase237 cmReference

Weight3823 kgReference

Front tire12.4-24Reference

Rear tire16.9-38Reference

Ag front12.4-24Reference

Ag rear16.9-38Reference

Length396 cmReference

Width193 cmReference

Height (cab)266 cmReference

Ground clearance43 cmReference

Front tread162 to 201 cmReference

Rear tread149 to 180 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps55Reference

Battery CCA1150Reference

Battery volts12Reference

Speeds

With 16.9-38 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
