Tractor · 2004Unverified
Zetor 9741
Zetor 9741 · 81 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
81 hp
Weight
4127 kg
Hover a source tag to verify
Overview
ManufacturerZetorReference
Built in Brno, CzechoslovakiaReference
Four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockelectro-pneumatic rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Zetor 4.2L 4-cyl dieselReference
Fuel tank181.7 LReference
Engine67.1 kWReference
ZetorReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
Power67.1 kWReference
Pre-heatingglow plugsReference
Pre-heatingblock heaterReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speed three-speed power shiftReference
Typethree-speed power shiftReference
Gears24 forward and 18 reverseReference
Clutch330.2mm hydraulic cerametallic discReference
Three power shift gears (1-3) in four gear sets (1-4) with a two-speed (low/high) range selector.Reference
PTO & Hydraulics
PTO (claimed)60.4 kWReference
Typeopen centerReference
Pressure186.2 barReference
Valves3Reference
Pump flow71.9 lpmReference
Total flow94.6 lpmReference
Steering flow22.7 lpmReference
Rear TypeII/IReference
Rear lift (at ends)4898 kgReference
Rear lift (at 24"/610mm)4218 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Wheelbase238 cmReference
Weight4127 kgReference
Front tire12.4-24Reference
Rear tire16.9-38Reference
Ag front12.4-24Reference
Ag rear16.9-38Reference
Length431 cmReference
Width220 cmReference
Height (cab)274 cmReference
Ground clearance43 cmReference
Front tread156 to 203 cmReference
Rear tread149 to 180 cmReference

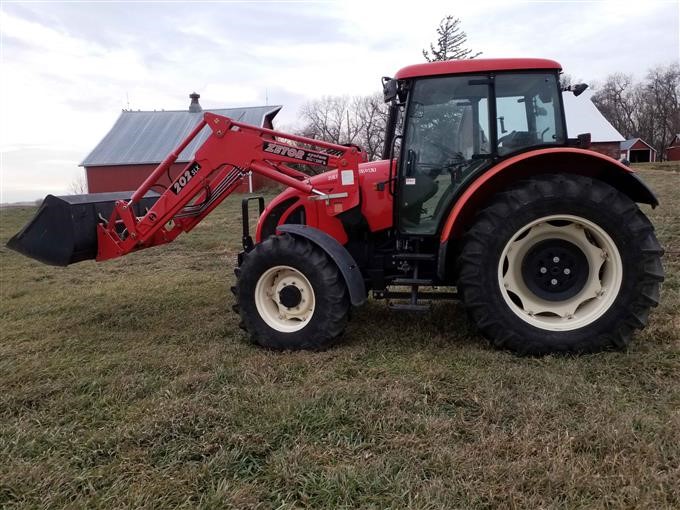

Zetor 9741 attachments
front-end loaderReference
Electrical
Charging systemalternatorReference
Charging amps70Reference
Battery CCA800Reference
Battery volts12Reference
Attachment overview
Zetor 202SL loaderReference
Zetor 202SLX loaderReference
Speeds
With 18.4R38 rear tires. Reverse speeds are 15% faster than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
