Tractor · 2020Unverified

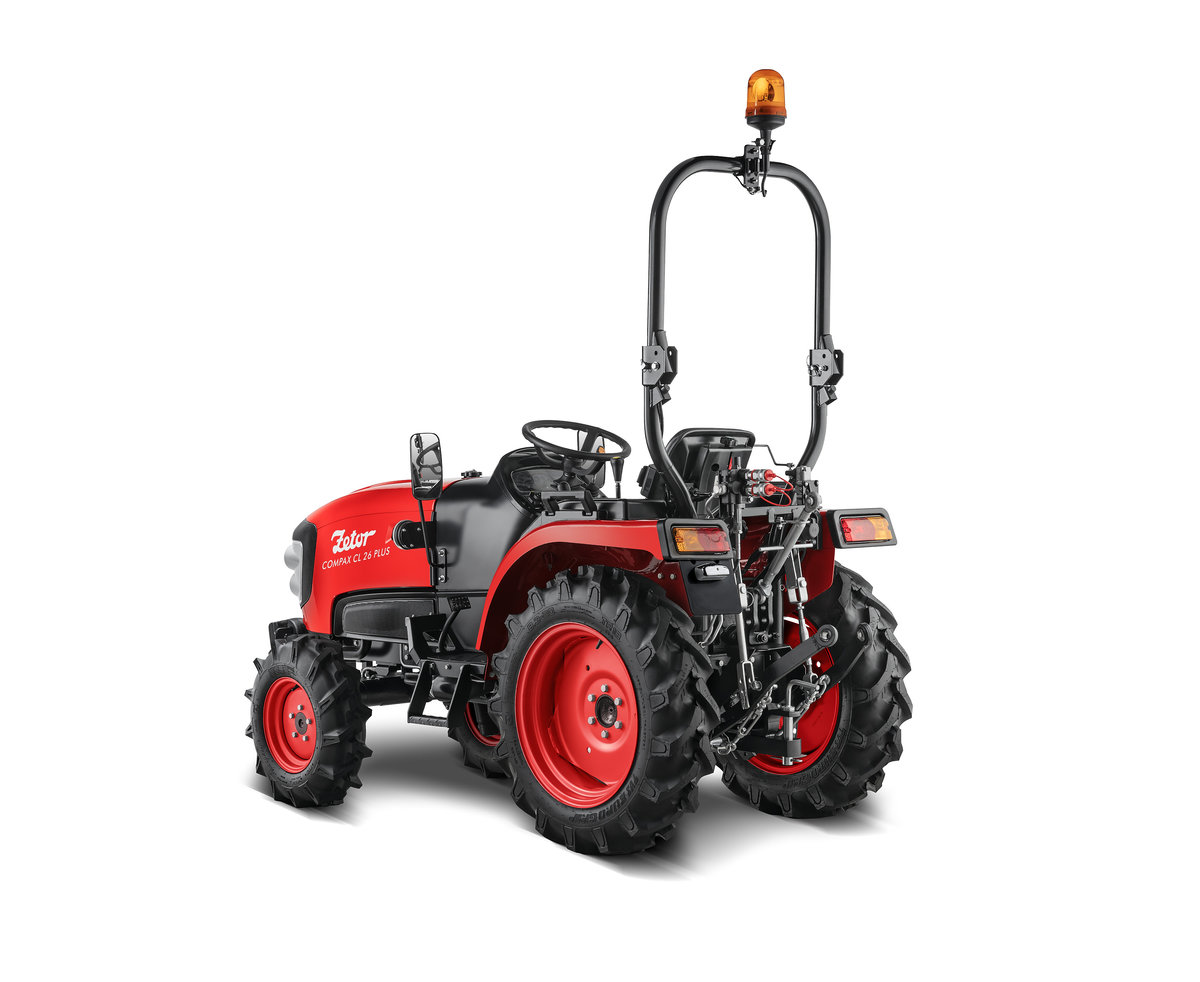

Zetor Compax 40

Name: Zetor Compax 40
Brand: Zetor

Zetor Compax 40 — Compax Series · 37 hp. Reference specifications; pending source verification.

The Zetor Compax 40 is a compact tractor model with a rating of 37 hp, situated within its class. It was produced in 2020. The Compax 40 features a diesel liquid-cooled engine, which powers a four-wheel drive system with a hydrostatic transmission. Its capabilities are suitable for tasks on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

37 hp

Catalogue coverage

Variants represented

Richest spec table

55 rows

Recorded power

37 hp

Transmissions

12-speed sync shuttle

Production years

2020-2020

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorZetorReference

ManufacturerTYMReference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Two-post folding ROPS. Cab optional.Reference

Variants

CL 40gearReference

HT 40hydrostaticReference

Engine

Yanmar dieselReference

Fuel tank34.1 LReference

Engine (gross)27.5 kWReference

YanmarReference

dieselReference

liquid-cooledReference

EmissionsStage 5Reference

Rated Power (gross)27.5 kWReference

StarterelectricReference

Starter volts12Reference

Transmission

12-speed sync shuttleReference

hydrostaticReference

ROPS gear Wheelbase164 cmReference

Cab gear Wheelbase169 cmReference

Typesync shuttleReference

Gears12 forward and reverseReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

PTO & Hydraulics

Rear valves2Reference

Mid valves2Reference

Gear Pump flow40.1 lpmReference

Hydro Pump flow41.3 lpmReference

Rear TypeIReference

Controlposition controlReference

Controldraft controlReference

Rear lift1200 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540Reference

Mid PTOindependentReference

Mid PTO Type2000Reference

Dimensions

Hydro Wheelbase167 cmReference

Front tire8.0-16Reference

Rear tire12.4-24Reference

Standard tires (ag)Front: 8.0-16. Rear: 12.4-24Reference

Lawn/turf front27x10.5-15Reference

Lawn/turf rear41x14-20Reference

Industrial front27x10.5-15Reference

Industrial rear12.5-20Reference

ROPS Length320 cmReference

Cab Length325 cmReference

ROPS Width135 cmReference

Cab Width147 cmReference

Height (ROPS)240 cmReference

Height (cab)234 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
