Tractor · 2016Unverified

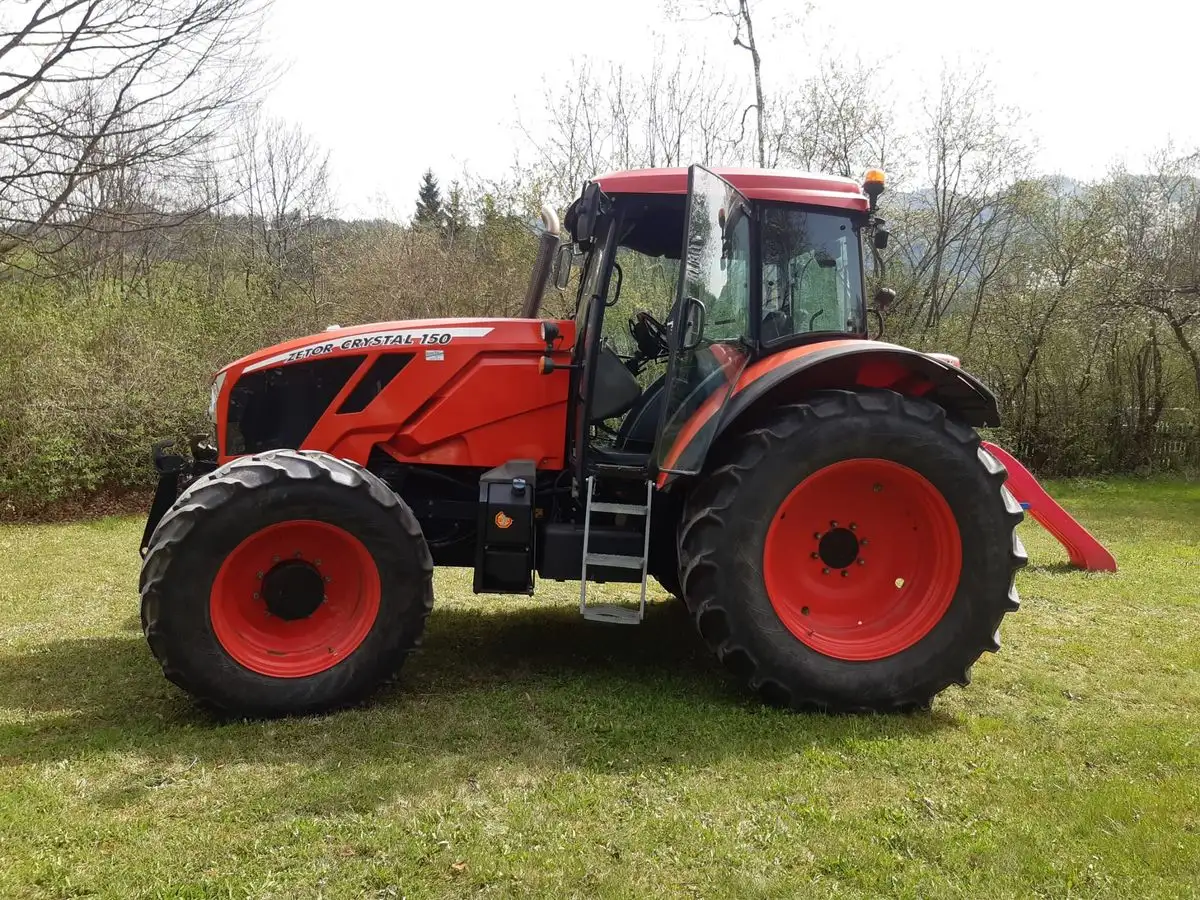

Zetor Crystal 150

Name: Zetor Crystal 150
Brand: Zetor

Zetor Crystal 150 — Crystal Series · 144 hp. Reference specifications; pending source verification.

The Zetor Crystal 150 is a tractor with a rated output of 144 hp, positioning it among the higher-powered machines in its class. Production of this model took place from 2016 to 2018. It features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, coupled with a powershift transmission and four-wheel drive. The listed weight of the Zetor Crystal 150 is 5840 kg, suitable for tasks of around 200–800 ac.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

144 hp

Max power

150 hp

Weight

5840 kg

Catalogue coverage

Variants represented

Richest spec table

79 rows

Recorded power

144 hp

Recorded weight

5840 kg

Transmissions

30-speed Five gears in two ranges with three-speed power shift.

Production years

2016-2018

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerZetorReference

Row-Crop tractorReference

Built in Brno, Czech RepublicReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Trailer brakespneumaticReference

Trailer brakeshydraulicReference

Cab standard with air-conditioning.Reference

Engine

Deutz 6.1L 6-cyl dieselReference

Fuel tank300.2 LReference

Engine (gross)107.4 kWReference

Engine (max)111.9 kWReference

Deutz TCD 6.1 L6Reference

turbocharged intercooled dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement6.1 LReference

Bore/Stroke101 x 126 mmReference

EmissionsStage IIIBReference

Rated Power (gross)107.4 kWReference

Maximum Power (gross)111.9 kWReference

Cooling systemviscous fanReference

Rated RPM2100Reference

Torque650.1 NmReference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders6 cylinderReference

Rated engine speed2,100 RPMReference

Emissions complianceStage IIIBReference

Engine torque at rated speed217.5 kgReference

Bore and stroke3.98x4.96 inchesReference

Transmission

30-speed Five gears in two ranges with three-speed power shift.Reference

TypeFive gears in two ranges with three-speed power shift.Reference

Gears30 forward and reverseReference

Clutchwet discReference

Transmission TypePowershiftReference

Wheel Drive4 WDReference

PTO & Hydraulics

Pressure200.0 barReference

Pump flow85.2 lpmReference

Rear TypeIIIReference

Rear lift8668 kgReference

Rear PTOindependentReference

Rear PTO Type540/540E/1000/1000EReference

Front PTO Type1000Reference

Dimensions

Wheelbase283 cmReference

Weight5840 kgReference

Front tire540/65R28Reference

Rear tire650/65R38Reference

Ag front540/65R28Reference

Ag rear650/65R38Reference

Length577 cmReference

Width255 cmReference

Height (cab)297 cmReference

Zetor Crystal 150 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Battery volts12Reference

General

Make & ModelZetorReference

Country of manufacturerBrno, Czech RepublicReference

Capacities

Capacity369.6 ciReference

Hydraulics

Capacity Valves24 ValvesReference

Maximum operating pressure2,900 psiReference

Rear Hitch category (SAE designation)Category IIIReference

Rear Hitch maximum lift capacity8,668.1 kgReference

Power

Max Power150 hpReference

Rated Power144 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Front PTO PowerAvailableReference

Steering & brakes

Brakeswet discReference

Steering typepowerReference

Dimensions & weight

Height Over Cab297.2 cmReference

Overall Length577.1 cmReference

Overall Width255 cmReference

Overall weight5,840 kgReference

Wheels & tyres

Rear Wheel TypeAg rear - 650/65R38Reference

Front Wheel TypeAg front - 540/65R28Reference

Operator station

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
