Tractor · 2018Unverified

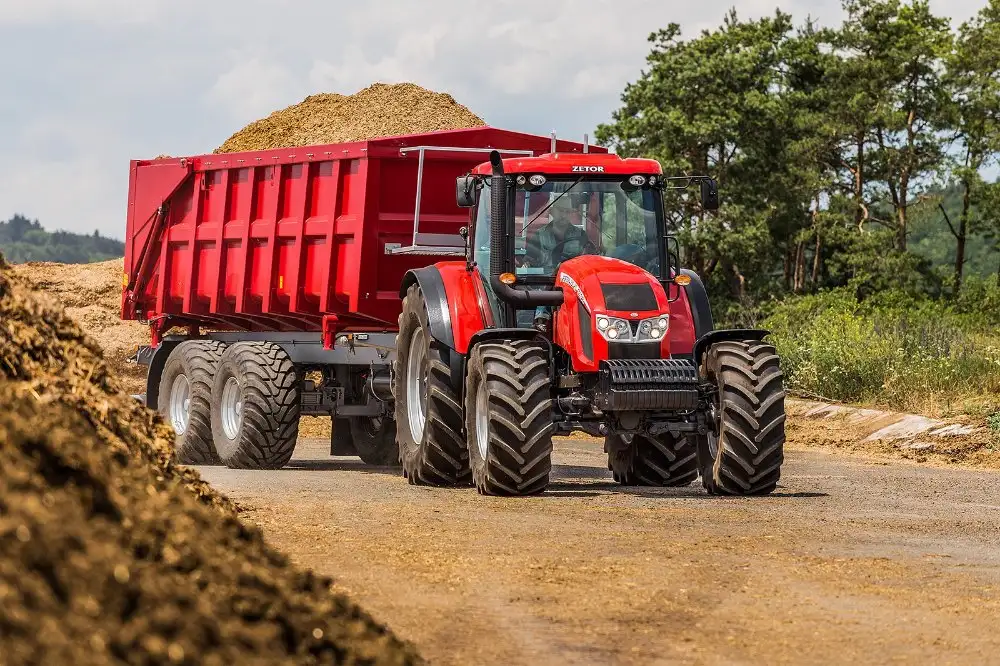

Zetor Crystal 150 HD

Name: Zetor Crystal 150 HD
Brand: Zetor

Zetor Crystal 150 HD — Crystal Series · 144 hp. Reference specifications; pending source verification.

The Zetor Crystal 150 HD is a tractor with a rated power output of 144 hp, positioning it at the more powerful end of its class. Manufactured between 2018 and 2020, this model features a 6-cylinder turbocharged diesel liquid-cooled engine paired with four-wheel drive and a powershift transmission. The tractor has an operating weight of 5760 kg and is suited to operations covering an area of 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

144 hp

Max power

150 hp

Weight

5760 kg

Catalogue coverage

Variants represented

Richest spec table

87 rows

Recorded power

144 hp

Recorded weight

5760 kg

Transmissions

30-speed three-speed power shift

Production years

2018-2020

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerZetorReference

Row-Crop tractorReference

Built in Brno, Czech RepublicReference

Four-wheel driveReference

Differential lockelectro-hydraulic front and rearReference

Power steeringReference

Wet disc brakesReference

Trailer brakespneumaticReference

Trailer brakeshydraulicReference

Cab standard with air-conditioning.Reference

Engine

Deutz 6.1L 6-cyl dieselReference

Fuel tank300.2 LReference

Exhaust fluid (DEF)32.2 LReference

Engine (gross)107.5 kWReference

Engine (max)111.9 kWReference

Deutz TCD 6.1 L6Reference

turbocharged dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement6.1 LReference

Bore/Stroke101 x 126 mmReference

EmissionsStage 4Reference

Rated Power (gross)107.5 kWReference

Maximum Power (gross)111.9 kWReference

Fuel systemcommon rail direct injectionReference

Cooling systemviscous fanReference

Rated RPM2100Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders6 cylinderReference

Rated engine speed2,100 RPMReference

Emissions complianceStage 4Reference

Bore and stroke3.98x4.96 inchesReference

Transmission

30-speed three-speed power shiftReference

Typethree-speed power shiftReference

Gears30 forward and reverseReference

Five gears in two ranges with three-speed power shift and power shuttle.Reference

Transmission TypePowershiftReference

forward and reverse optionsThree-speed power shift : 30 F and 30 RReference

Wheel Drive4 WDReference

PTO & Hydraulics

PTO (claimed)95.4 kWReference

Typeopen centerReference

Pump flow85.2 lpmReference

Rear TypeIIIReference

Rear lift7953 kgReference

Rear PTOindependentReference

Rear PTO Type540/540E/1000/1000EReference

Mid PTOindependentReference

Mid PTO Type1000Reference

Dimensions

Wheelbase284 cmReference

Weight5760 kgReference

Front tire480/65R28Reference

Rear tire600/65R38Reference

Standard tires (ag)Front: 480/65R28. Rear: 600/65R38Reference

Optional tires (ag)Front: 540/65R28. Rear: 650/65R38Reference

Length541 cmReference

Width255 cmReference

Height (cab)304 cmReference

Max weight10000 kgReference

Ground clearance40 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

General

Make & ModelZetorReference

Country of manufacturerBrno, Czech RepublicReference

Capacities

Capacity369.6 ciReference

Diesel exhaust fluid (DEF) tank32.2 LReference

Hydraulics

Capacity Valves24 ValvesReference

Hydraulics Typeopen centerReference

Rear Hitch category (SAE designation)Category IIIReference

Rear Hitch maximum lift capacity7,953.3 kgReference

Power

Max Power150 hpReference

Rated Power144.2 hpReference

PTO

PTO Power128 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Mid PTO RPM1,000 RPMReference

Steering & brakes

Brakeswet discReference

Steering typepowerReference

Dimensions & weight

Height Over Cab304.8 cmReference

Overall Length541 cmReference

Overall Width255 cmReference

Overall weight5,760.2 kgReference

Wheels & tyres

Rear Wheel TypeAg rear - 600/65R38Reference

Front Wheel TypeAg front - 480/65R28.Reference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
