Tractor · 2018Unverified

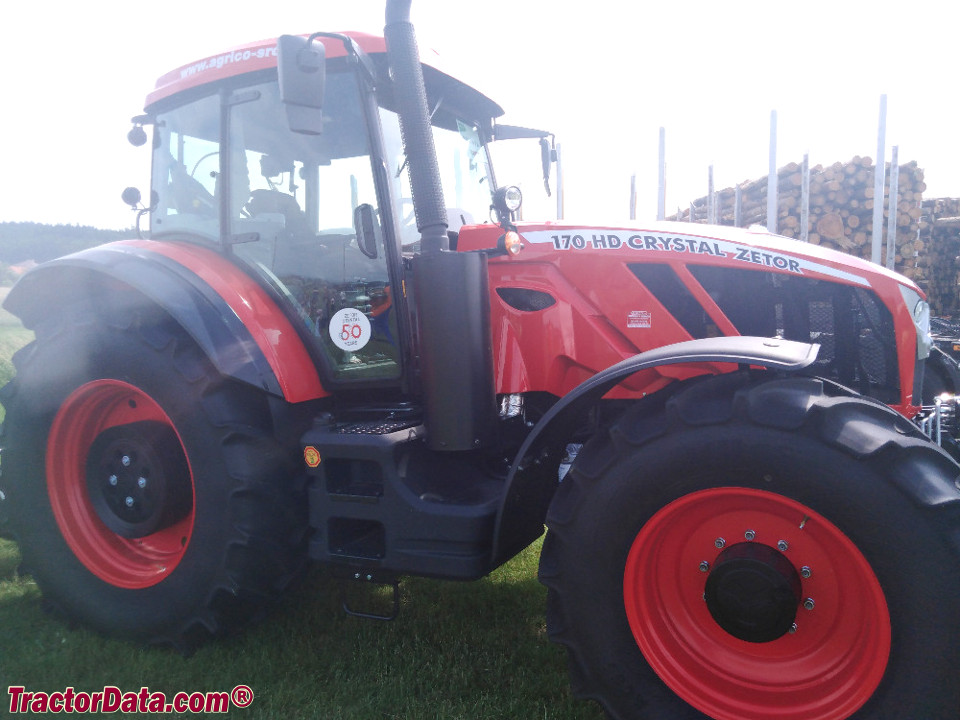

Zetor Crystal 170 HD
Zetor Crystal 170 HD — Crystal Series · 164 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
164 hp
Weight
5760 kg
Hover a source tag to verify
Overview
ManufacturerZetorReference
Row-Crop tractorReference
Built in Brno, Czech RepublicReference
Four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Wet disc brakesReference
Trailer brakespneumaticReference
Trailer brakeshydraulicReference
Cab standard with air-conditioning.Reference
Engine
Deutz 6.1L 6-cyl dieselReference
Fuel tank300.2 LReference
Exhaust fluid (DEF)32.2 LReference
Engine (gross)122.0 kWReference
Engine (max)127.5 kWReference
Deutz TCD 6.1 L6Reference
turbocharged dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement6.1 LReference
Bore/Stroke101 x 126 mmReference
EmissionsStage 4Reference
Rated Power (gross)122.0 kWReference
Maximum Power (gross)127.5 kWReference
Fuel systemcommon rail direct injectionReference
Cooling systemviscous fanReference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Transmission
30-speed three-speed power shiftReference
Typethree-speed power shiftReference
Gears30 forward and reverseReference
Five gears in two ranges with three-speed power shift and power shuttle.Reference
PTO & Hydraulics
PTO (claimed)103.7 kWReference
Typeopen centerReference
Pump flow85.2 lpmReference
Rear TypeIIIReference
Rear lift7953 kgReference
Rear PTOindependentReference
Rear PTO Type540/540E/1000/1000EReference
Mid PTOindependentReference
Mid PTO Type1000Reference
Dimensions
Wheelbase284 cmReference
Weight5760 kgReference
Front tire480/65R28Reference
Rear tire600/65R38Reference
Standard tires (ag)Front: 480/65R28. Rear: 600/65R38Reference
Optional tires (ag)Front: 540/65R28. Rear: 650/65R38Reference
Length541 cmReference
Width255 cmReference
Height (cab)304 cmReference
Max weight10000 kgReference
Ground clearance40 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
