Tractor · 2012Unverified

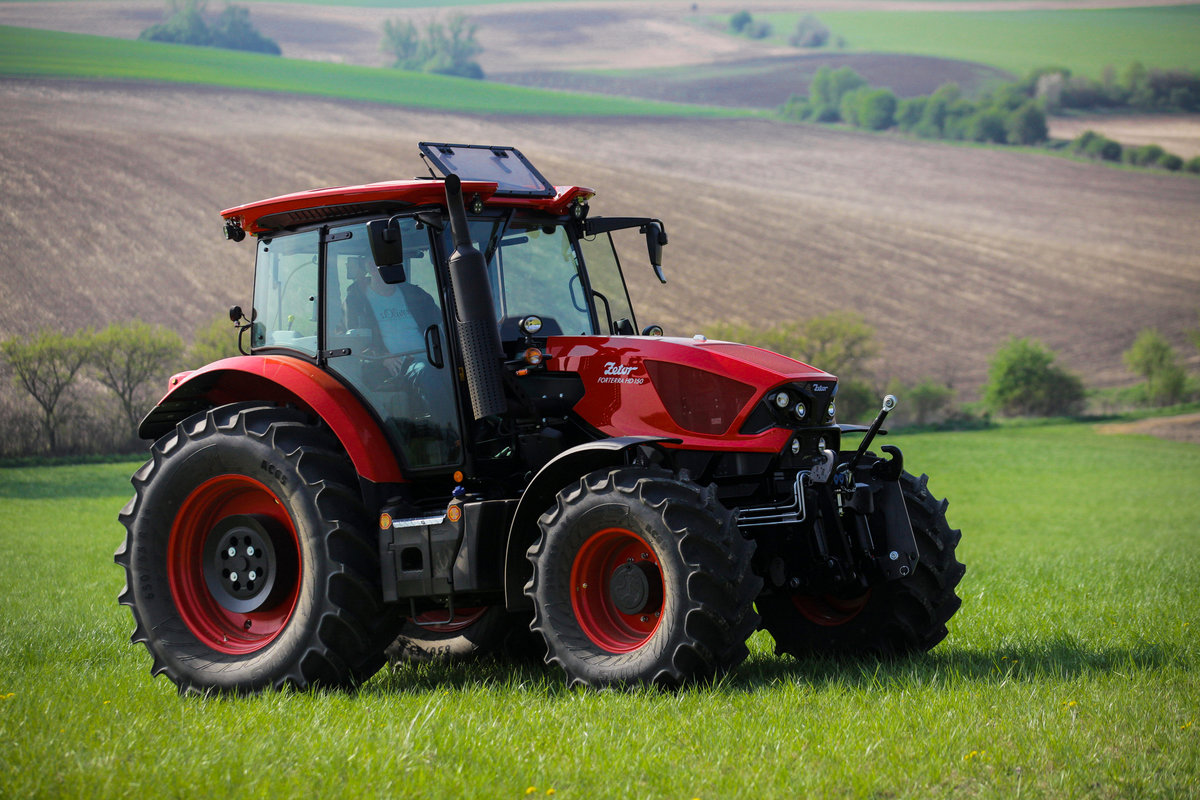

Zetor Forterra 100 HSX
Zetor Forterra 100 HSX — Model year 2012-20162016-2025 · 96 hp. Reference specifications; pending source verification.
The Zetor Forterra 100 HSX is a tractor with a rated power output of 96 hp, positioning it centrally within its class. Manufactured from 2012 to 2025, this model features a 4-cylinder turbocharged intercooled diesel liquid-cooled engine. The tractor's drivetrain comprises four-wheel drive and a 30-speed gearbox. Its listed weight is 4760 kg, making it suitable for tasks requiring 200–800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
96 hp
Weight
4760 kg
Catalogue coverage
Variants represented
2
Richest spec table
38 rows
Recorded power
96 hp
Recorded weight
4760 kg
Transmissions
30-speed
Production years
2012-2025
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerZetorReference
Built in Brno, Czech RepublicReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Zetor 4.2L 4-cyl dieselReference
Fuel tank219.9 LReference
Engine71.6 kWReference
Zetor Z 1006Reference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
Power71.6 kWReference
Rated RPM2200Reference
Torque429.0 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
30-speedReference
Gears30 forward and reverseReference
PTO & Hydraulics
Pressure200.0 barReference
Pump flow70.0 lpmReference
Rear lift6999 kgReference
Rear lift8500 kgReference
Rear PTO Type540/750/1000/1250Reference
Dimensions
Wheelbase259 cmReference
Weight4760 kgReference
Front tire14.9R24Reference
Rear tire16.9R38Reference
Ag front14.9R24Reference
Ag rear16.9R38Reference
Length477 cmReference
Height (cab)282 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
