Tractor · 1999Unverified

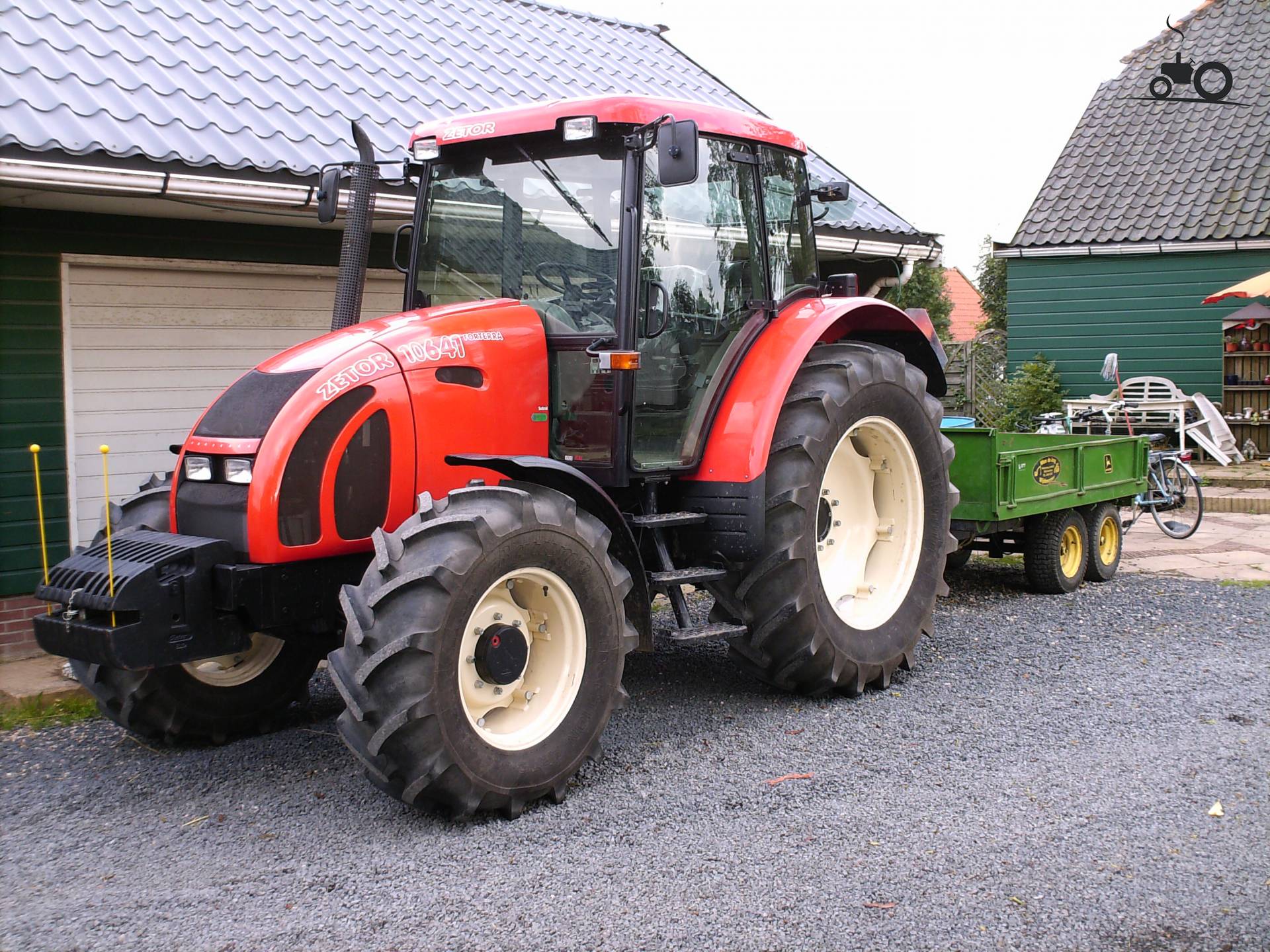

Zetor Forterra 10641
Zetor Forterra 10641 — Model year 1999-20022002-20072007-2009 · 90 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
90 hp
Max power
68.0 kW
Weight
4309 kg
Hover a source tag to verify
Overview
ManufacturerZetorReference
Utility tractorReference
Built in Brno, CzechoslovakiaReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with available air-conditioning.Reference
Engine
Zetor 4.2L 4-cyl dieselReference
Fuel tank180.2 LReference
Engine78.3 kWReference
Drawbar (tested)54.2 kWReference
Zetor Z 1303Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
Power78.3 kWReference
Compression17.0:1Reference
Rated RPM2200Reference
Torque392.0 NmReference
Torque RPM1500Reference
Starter volts12Reference
Max power68.0 kWReference
Power at rated engine speed67.3 kWReference
Max power54.2 kWReference
Transmission
24-speed synchronizedReference
TypesynchronizedReference
Gears24 forward and 18 reverseReference
Clutchhydraulic dry discReference
PTO & Hydraulics
PTO (tested)68.0 kWReference
Typeopen centerReference
Valves3Reference
Pump flow60.0 lpmReference
Rear TypeIIReference
Rear lift4218 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Power at rated PTO speed67.9 kWReference
Dimensions
Wheelbase237 cmReference
Weight4309 kgReference
Front tire14.9-24Reference
Rear tire18.4R-38Reference
Ag front14.9-24Reference
Ag rear18.4R-38Reference
Length436 cmReference
Height271 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Test results
Diesel 24-speed 4WDMarch 1998 - June 1998, Link: OCED Tractor Test 1774 fileReference
PTO performanceReference
Fuel use22.0 l/hourReference
Fuel use22.7 l/hourReference
Fuel use20.8 l/hourReference
Drawbar performanceReference
Max pull3578 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
