Tractor · 2002Unverified

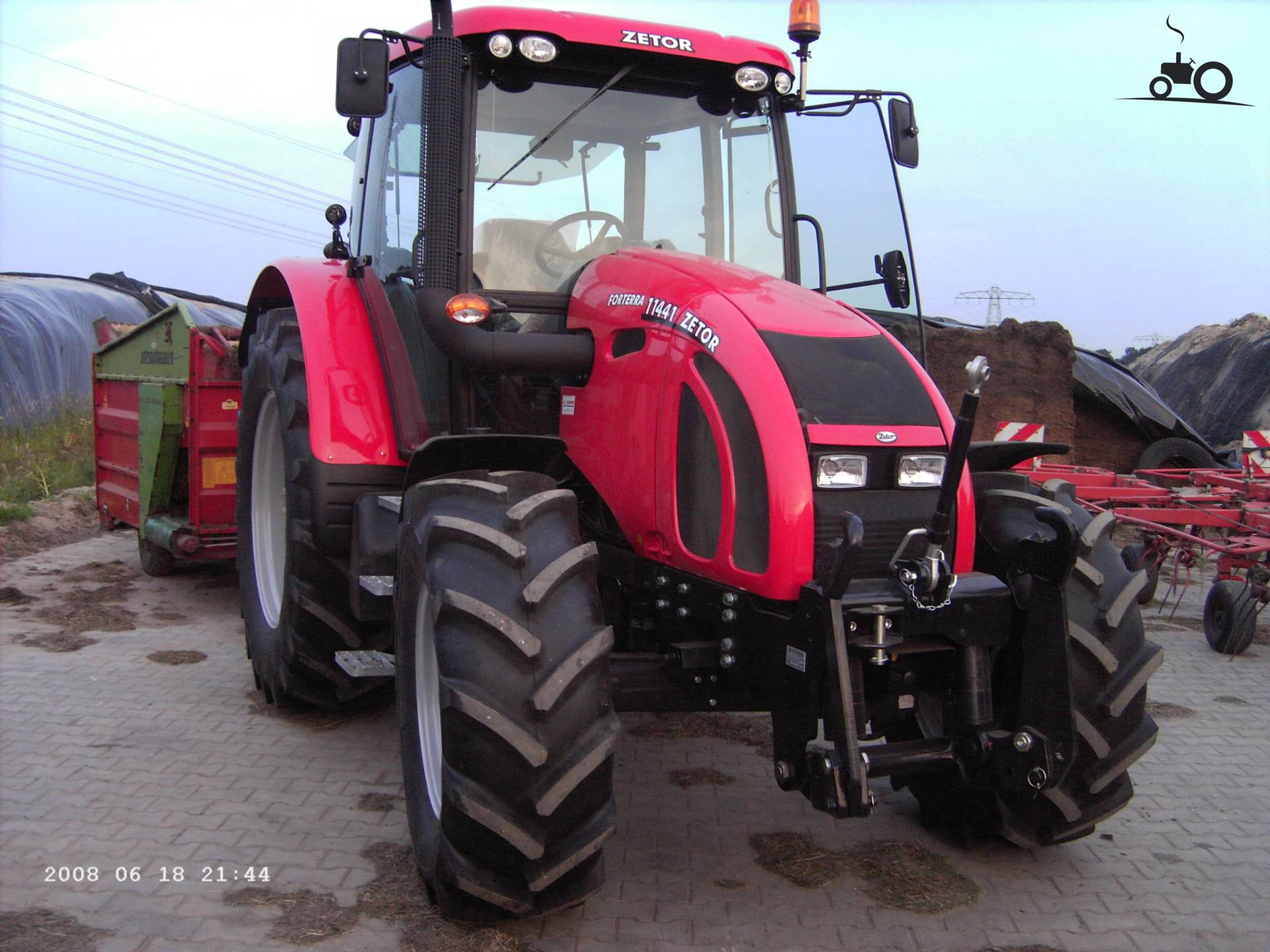

Zetor Forterra 11441
Zetor Forterra 11441 — Model year 2002-20072007-2009 · 110 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
110 hp
Weight
4617 kg
Hover a source tag to verify
Overview
ManufacturerZetorReference
Built in Brno, CzechoslovakiaReference
Four-wheel driveReference
Final drivesplanetaryReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Trailer brakespneumaticReference
Cab standard with available air-conditioning.Reference
Engine
Zetor 4.2L 4-cyl dieselReference
Fuel tank180.2 LReference
Engine82.0 kWReference
Zetor Z 1403Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
Power82.0 kWReference
Rated RPM2200Reference
Torque480.0 NmReference
Torque RPM1550Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speed synchronizedReference
TypesynchronizedReference
Gears24 forward and 18 reverseReference
Clutchhydraulic dry discReference
PTO & Hydraulics
Pump flow60.0 lpmReference
Pump flow70.0 lpmReference
Controlposition control and lower-link draft sensingReference
Rear lift5964 kgReference
Rear PTOindependentReference
Clutchwet discReference
Rear PTO Type540/1000Reference
Rear PTO Type750/1000Reference
Dimensions
Wheelbase239 cmReference
Weight4617 kgReference
Front tire14.9-24Reference
Rear tire18.4-38Reference
Standard tires (ag)Front: 14.9-24. Rear: 18.4-38Reference
Length497 cmReference
Width219 cmReference
Height282 cmReference
Ground clearance46 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
