Tractor · 2009Unverified

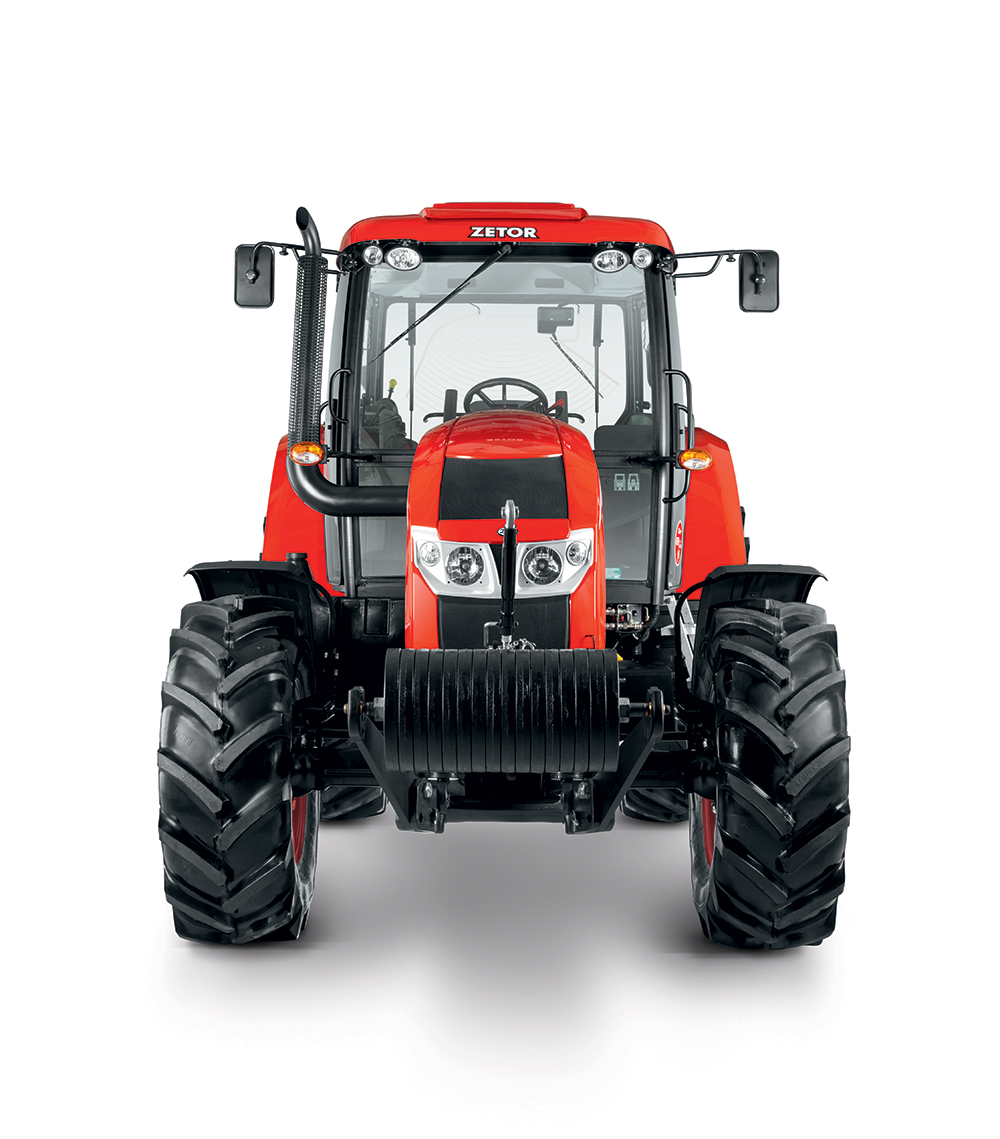

Zetor Forterra 115

Name: Zetor Forterra 115
Brand: Zetor

Zetor Forterra 115 — Forterra Series · 117 hp. Reference specifications; pending source verification.

The Zetor Forterra 115 is a tractor with a rated output of 117 horsepower, positioning it in the middle of its class in terms of power. It was manufactured from 2009 to 2012. The tractor is equipped with a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, which drives the four-wheel drive through a 24-speed gearbox. Its listed weight is 4660 kilograms, and it is suited to tasks involving areas of approximately 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

117 hp

Max power

117 hp

Weight

4660 kg

Catalogue coverage

Variants represented

Richest spec table

65 rows

Recorded power

117 hp

Recorded weight

4660 kg

Transmissions

24-speed

Production years

2009-2012

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerZetorReference

Built in Brno, Czech RepublicReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

Zetor 4.2L 4-cyl dieselReference

Fuel tank172.6 LReference

Engine87.2 kWReference

Zetor Z 1405Reference

turbocharged intercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.2 LReference

Bore/Stroke105 x 120 mmReference

EmissionsStage IIIReference

Power87.2 kWReference

Rated RPM2200Reference

Torque480.0 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,200 RPMReference

Emissions complianceStage IIIReference

Engine torque at rated speed160.6 kgReference

Bore and stroke4.13x4.72 inchesReference

Cooling systemliquid-cooledReference

Transmission

24-speedReference

Gears24 forward and 18 reverseReference

Transmission TypeSync ShuttleReference

forward and reverse optionsmechanical with 3° powershift, reverse - 24 F and 18 RReference

Wheel Drive4WDReference

PTO & Hydraulics

Pressure13.8 barReference

Pump flow70.0 lpmReference

Rear lift5850 kgReference

Rear PTO Type540/1000Reference

Dimensions

Wheelbase239 cmReference

Weight4660 kgReference

Front tire420/70R24Reference

Rear tire520/70R38Reference

Ag front420/70R24Reference

Ag rear520/70R38Reference

Length467 cmReference

Height (cab)282 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

General

Make & ModelZetorReference

Country of manufacturerCzech RepublicReference

Capacities

Capacity253.6 ciReference

Power

Max Power117 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

Brakeswet discReference

Steering typepowerReference

Hydraulics

Maximum operating pressure200 psiReference

Rear Hitch maximum lift capacity5,850 kgReference

Dimensions & weight

Height Over Cab283 cmReference

Overall Length467.1 cmReference

Overall weight4,660.2 kgReference

Wheels & tyres

Rear Wheel TypeAg rear - 520/70R38Reference

Front Wheel TypeAg front - 420/70R24Reference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
