Tractor · 2007Unverified

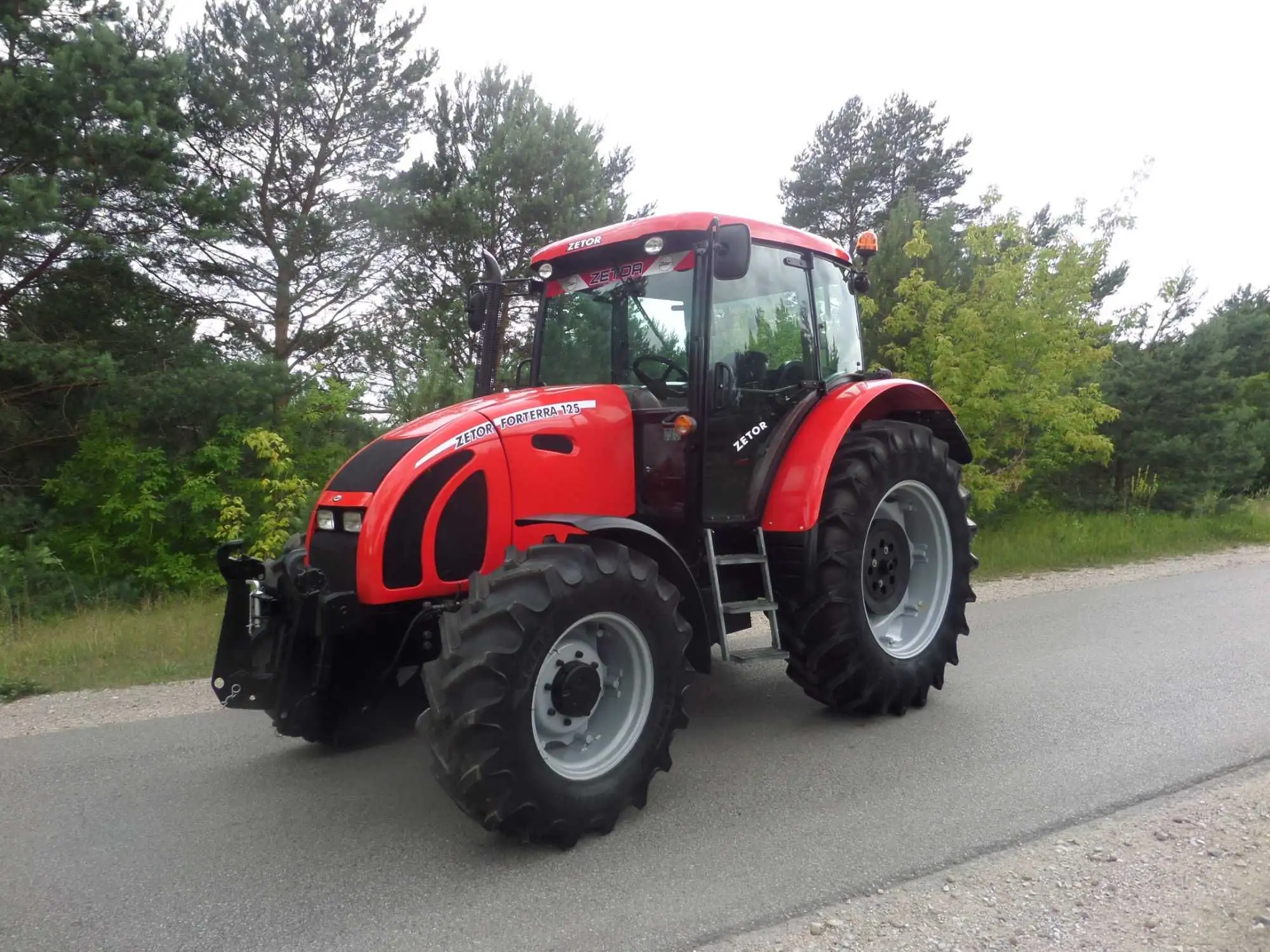

Zetor Forterra 12441
Zetor Forterra 12441 — Forterra Series · 129 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
129 hp
Weight
4660 kg
Hover a source tag to verify
Overview
ManufacturerZetorReference
Built in Brno, Czech RepublicReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Zetor 4.2L 4-cyl dieselReference
Fuel tank172.6 LReference
Engine96.2 kWReference
Zetor Z 1504Reference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
EmissionsStage IIIReference
Power96.2 kWReference
Cooling systemviscous fanReference
Rated RPM2200Reference
Torque525.0 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speedReference
Gears24 forward and 18 reverseReference
PTO & Hydraulics
Pressure12.4 barReference
Pump flow70.0 lpmReference
Rear lift5850 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase239 cmReference
Weight4660 kgReference
Front tire420/70R24Reference
Rear tire520/70R38Reference
Ag front420/70R24Reference
Ag rear520/70R38Reference
Length467 cmReference
Height (cab)282 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
