Tractor · 2010Unverified

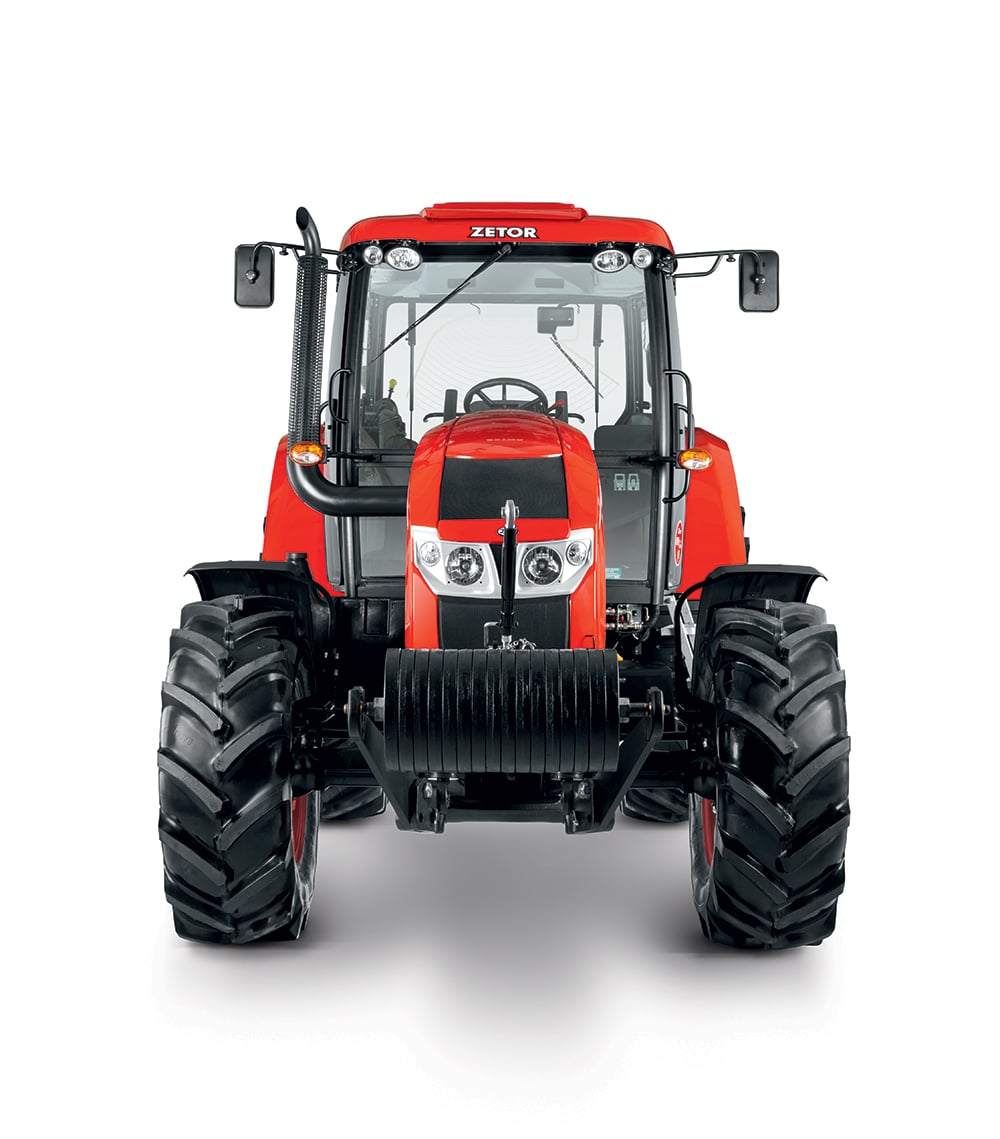

Zetor Forterra 135

Name: Zetor Forterra 135
Brand: Zetor

Zetor Forterra 135 — Forterra Series · 136 hp. Reference specifications; pending source verification.

The Zetor Forterra 135 is a tractor with a rated power of 136 hp, placing it at the higher end of its class. Production of this model spanned the period from 2010 to 2012. It features a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with four-wheel drive and a 24-speed gearbox. The tractor's listed operating weight is 4660 kg, with a suitable operating range of 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

136 hp

Max power

136 hp

Weight

4660 kg

Catalogue coverage

Variants represented

Richest spec table

64 rows

Recorded power

136 hp

Recorded weight

4660 kg

Transmissions

24-speed

Production years

2010-2012

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerZetorReference

Built in Brno, Czech RepublicReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

Zetor 4.2L 4-cyl dieselReference

Fuel tank172.6 LReference

Engine101.4 kWReference

Zetor Z 1605Reference

turbocharged intercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.2 LReference

Bore/Stroke105 x 120 mmReference

EmissionsStage IIIReference

Power101.4 kWReference

Rated RPM2200Reference

Torque570.1 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,200 RPMReference

Emissions complianceStage IIIReference

Engine torque at rated speed190.7 kgReference

Bore and stroke4.13x4.72 inchesReference

Cooling systemliquid-cooledReference

Transmission

24-speedReference

Gears24 forward and 18 reverseReference

Transmission TypeSync ShuttleReference

Wheel Drive4WDReference

PTO & Hydraulics

Pressure13.8 barReference

Pump flow70.0 lpmReference

Rear lift5850 kgReference

Rear PTO Type540/1000Reference

Dimensions

Wheelbase239 cmReference

Weight4660 kgReference

Front tire420/70R24Reference

Rear tire520/70R38Reference

Ag front420/70R24Reference

Ag rear520/70R38Reference

Length467 cmReference

Height (cab)282 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

General

Make & ModelZetorReference

Country of manufacturerBrno, Czech RepublicReference

Capacities

Capacity253.6 ciReference

Power

Max Power136 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

Brakeswet discReference

Steering typepowerReference

Hydraulics

Maximum operating pressure200 psiReference

Rear Hitch maximum lift capacity5,850 kgReference

Dimensions & weight

Height Over Cab283 cmReference

Overall Length467.1 cmReference

Overall weight4,660.2 kgReference

Wheels & tyres

Rear Wheel TypeAg rear - 520/70R38Reference

Front Wheel TypeAg front - 420/70R24Reference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
