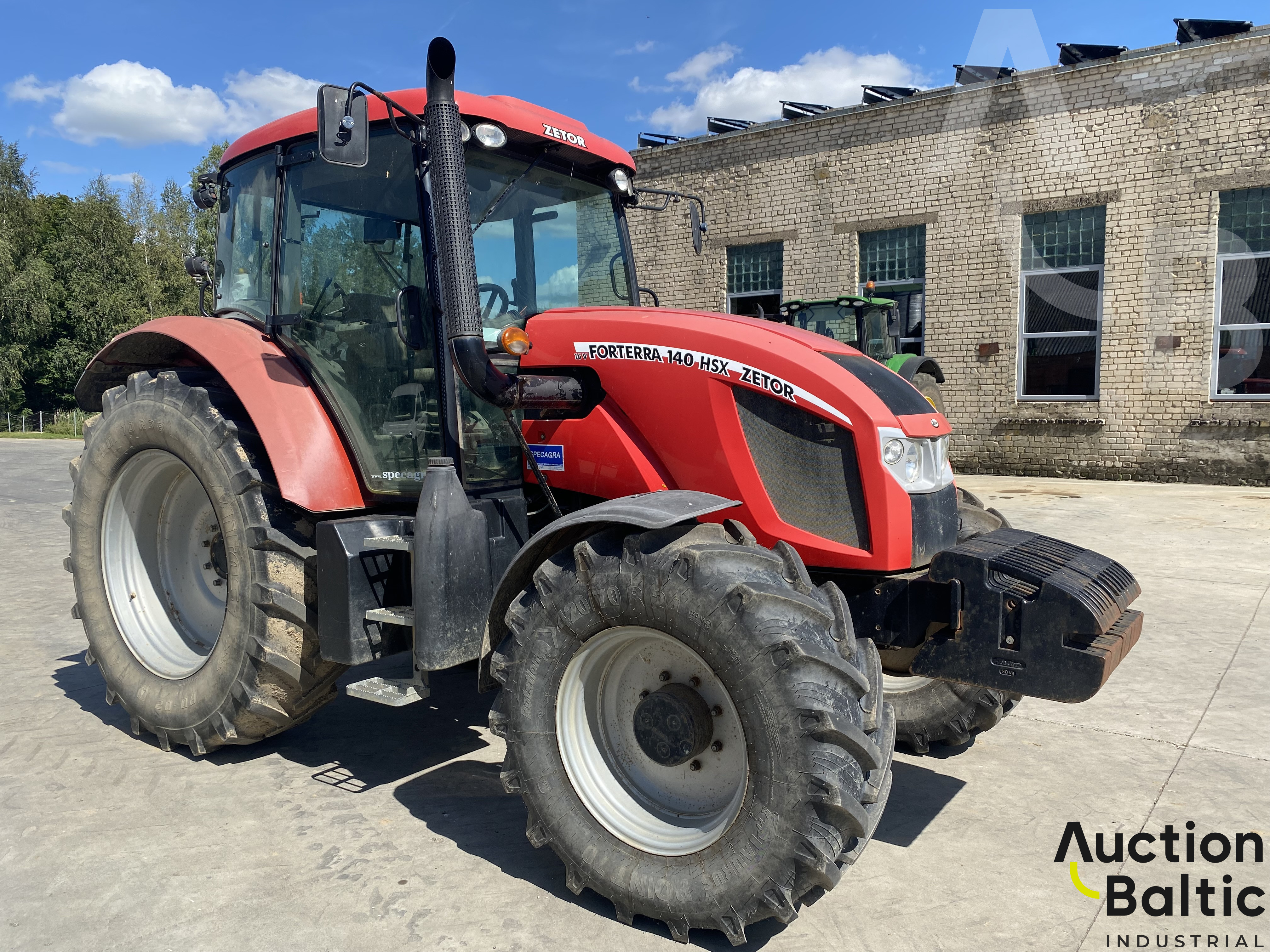

Zetor Forterra 140 HSX
Zetor Forterra 140 HSX — Model year 2012-20162016-2025 · 136 hp. Reference specifications; pending source verification.
The Zetor Forterra 140 HSX is a tractor model with a rating of approximately 136 hp, positioning it towards the higher end of its class in terms of power. It was produced between 2012 and 2025. The tractor is equipped with a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with a four-wheel drive system and a 30-speed gearbox. Its listed operating weight is 4760 kg, and it is suitable for operations on areas ranging from 200 to 800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
136 hp
Weight
4760 kg
Catalogue coverage
Variants represented
2
Richest spec table
38 rows
Recorded power
136 hp
Recorded weight
4760 kg
Transmissions
30-speed
Production years
2012-2025
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerZetorReference
Built in Brno, Czech RepublicReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Zetor 4.2L 4-cyl dieselReference
Fuel tank219.9 LReference
Engine101.4 kWReference
Zetor Z 1606Reference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
Power101.4 kWReference
Rated RPM2200Reference
Torque581.0 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
30-speedReference
Gears30 forward and reverseReference
PTO & Hydraulics
Pressure200.0 barReference
Pump flow70.0 lpmReference
Rear lift6999 kgReference
Rear lift8500 kgReference
Rear PTO Type540/750/1000/1250Reference
Dimensions
Wheelbase259 cmReference
Weight4760 kgReference
Front tire420Reference
Rear tire520Reference
Ag front420 / 70R24Reference
Ag rear520 / 70R38Reference
Length477 cmReference
Height (cab)282 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
