Tractor · 1999Unverified

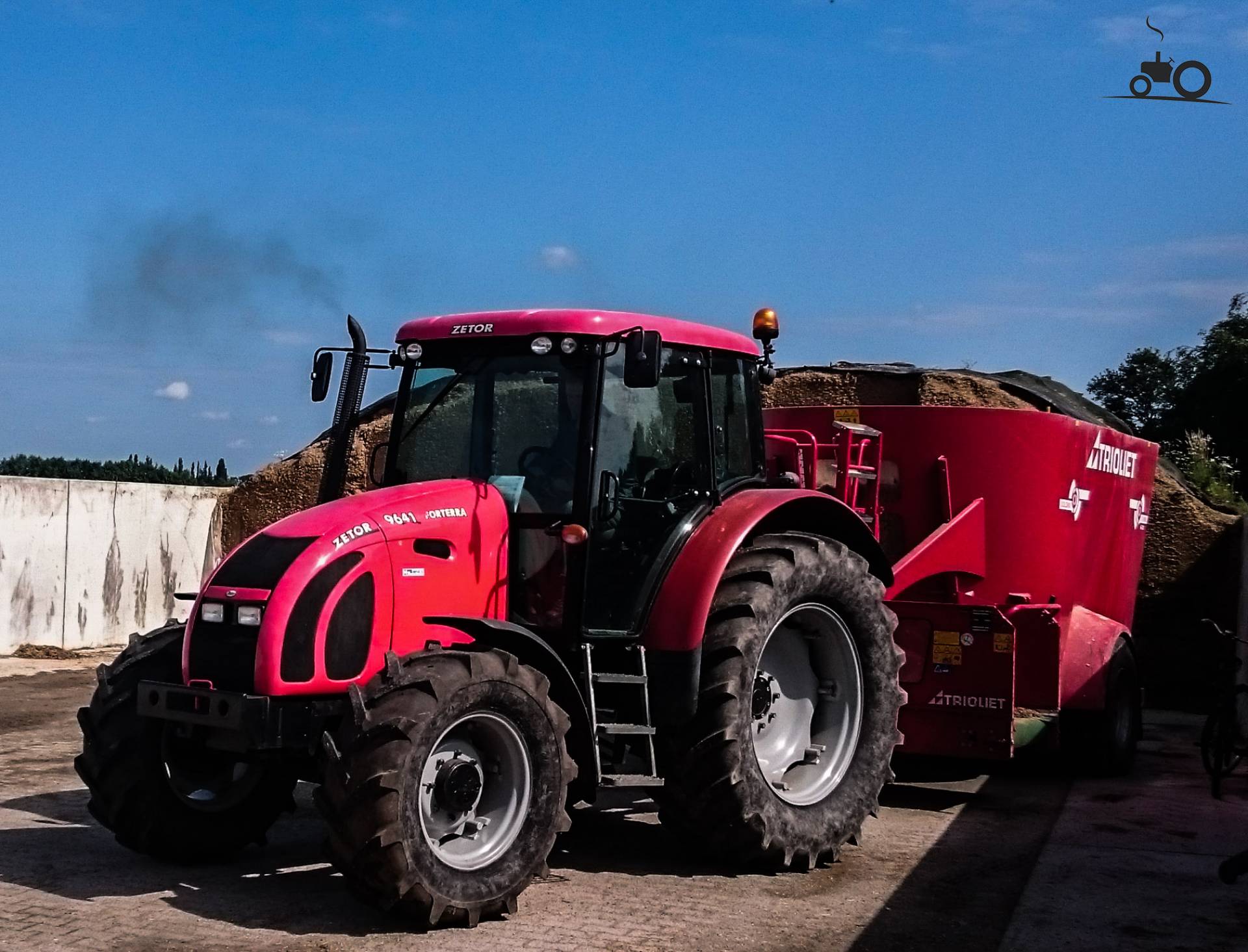

Zetor Forterra 9641
Zetor Forterra 9641 — Model year 1999-20022002-20072007-2009 · 95 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
95 hp
Weight
3949 kg
Hover a source tag to verify
Overview
ManufacturerZetorReference
Built in Brno, CzechoslovakiaReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with available air-conditioning.Reference
Engine
Zetor 4.2L 4-cyl dieselReference
Fuel tank180.2 LReference
Engine70.8 kWReference
Zetor Z 1003Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
Power70.8 kWReference
Rated RPM2200Reference
Torque373.0 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speed synchronizedReference
TypesynchronizedReference
Gears24 forward and 18 reverseReference
Clutchhydraulic dry discReference
PTO & Hydraulics
Pump flow60.0 lpmReference
Rear lift4799 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase237 cmReference
Weight3949 kgReference
Front tire14.9-24Reference
Rear tire16.9-38Reference
Standard tires (ag)Front: 14.9-24. Rear: 16.9-38Reference
Length436 cmReference
Height271 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
