Tractor · 2020Unverified

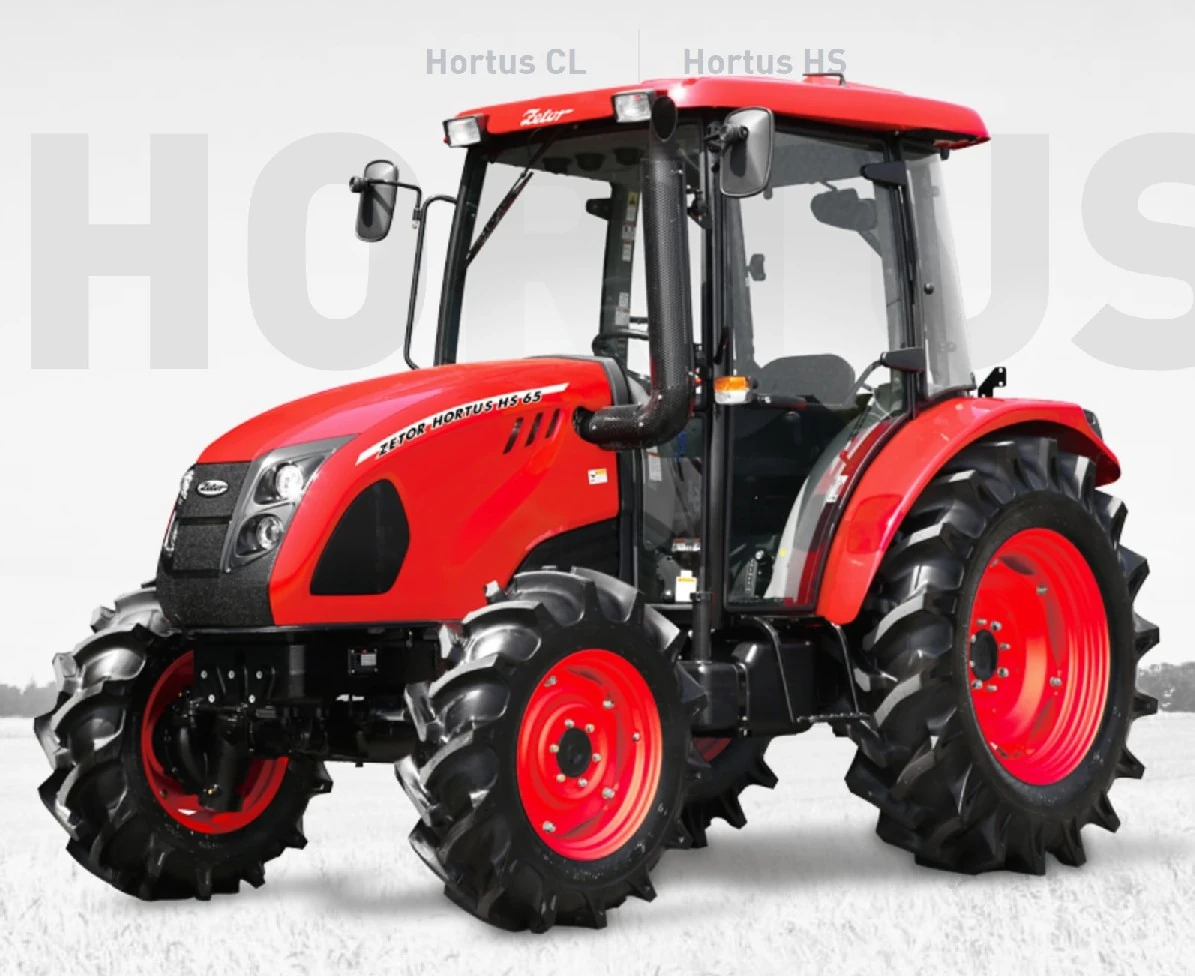

Zetor Hortus 65
Zetor Hortus 65 — Compact Utility tractor. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Weight
2550 kg
Hover a source tag to verify
Overview
ManufacturerZetorReference
Compact Utility tractorReference
Built in Brno, Czech RepublicReference
Four-wheel driveReference
Power steeringReference
Trailer brakespneumaticReference
Cab standard with air-conditioning.Reference
Engine
Deutz 2.9L 4-cyl dieselReference
Fuel tank70.0 LReference
Deutz TCD 2.9 L4Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke92 x 110 mmReference
EmissionsStage 3BReference
Fuel systemcommon rail direct injectionReference
StarterelectricReference
Starter volts12Reference
Transmission
24-speed mechanical shuttleReference
24-speed power shuttleReference
Typemechanical shuttleReference
Gears24 forward and reverseReference
Typepower shuttleReference
PTO & Hydraulics
Typeopen centerReference
Rear valves2Reference
Mid valves2Reference
Pump flow39.0 lpmReference
Total flow60.9 lpmReference
Steering flow22.0 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift (at ends)1937 kgReference
Rear lift (at 24"/610mm)1427 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/750/1000Reference
Dimensions
Wheelbase215 cmReference
Weight2550 kgReference
Front tire280/85E20Reference
Rear tire380/85R30Reference
Standard tires (ag)Front: 280/85E20. Rear: 380/85R30Reference
Length398 cmReference
Width186 cmReference
Height (cab)257 cmReference
Max weight4690 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
