Tractor · 2020Unverified

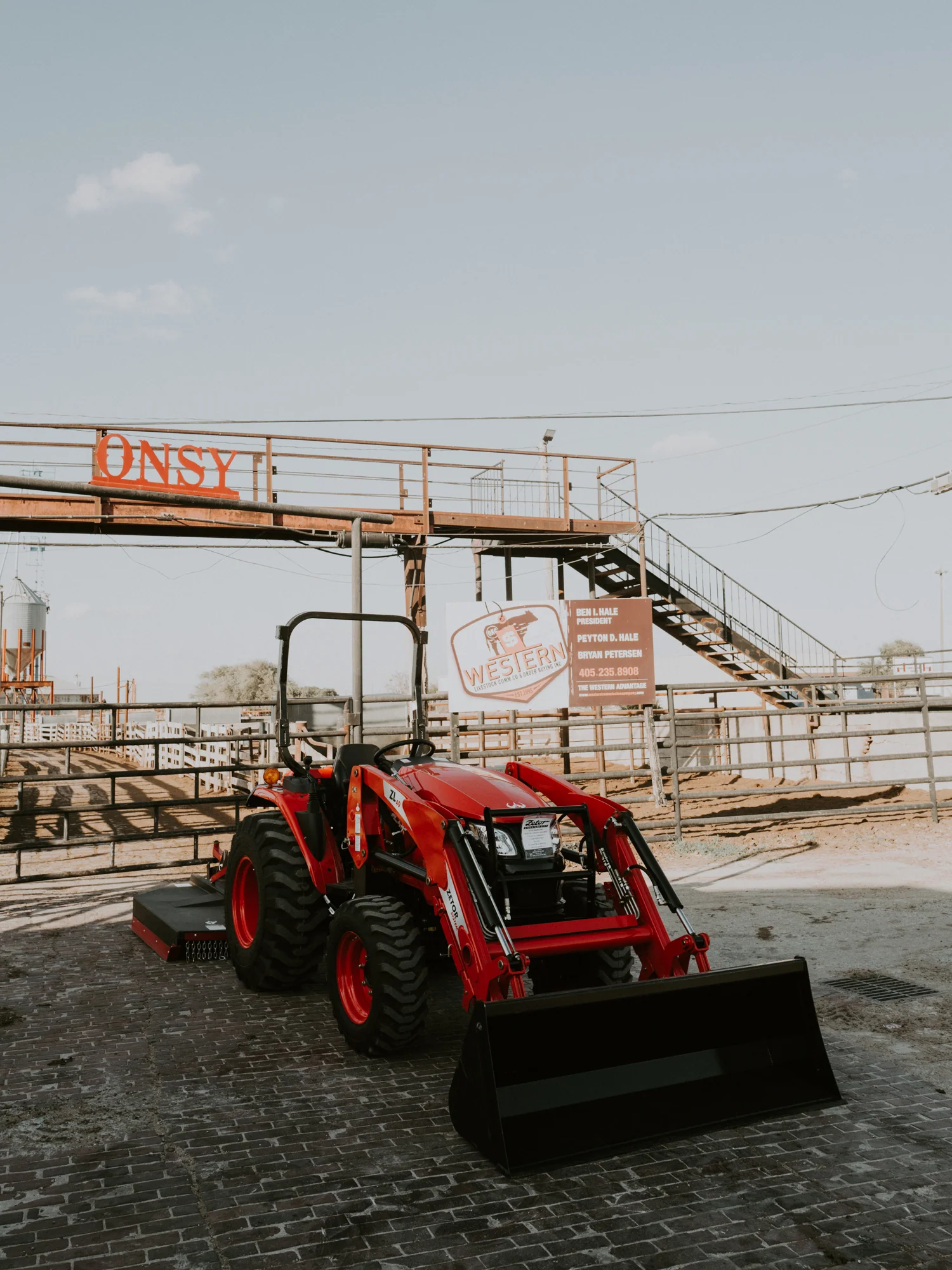

Zetor M40
Zetor M40 — M Compact Series · 32 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
32 hp
Hover a source tag to verify
Overview
ManufacturerZetorReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Two-post folding ROPS. Cab optional.Reference
Engine
Yanmar 3-cyl dieselReference
Engine28.3 kWReference
YanmarReference
dieselReference
3-cylinderReference
liquid-cooledReference
Power28.3 kWReference
Starter typeelectricReference
Transmission
12-speed shuttleReference
hydrostaticReference
TypeshuttleReference
Gears12 forward and reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Shuttle PTO (claimed)23.7 kWReference
Hydro PTO (claimed)22.3 kWReference
Pump flow42.4 lpmReference
Rear lift1200 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540 (1.375)Reference
Zetor M40 attachments
front-end loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
