Tractor · 2020Unverified

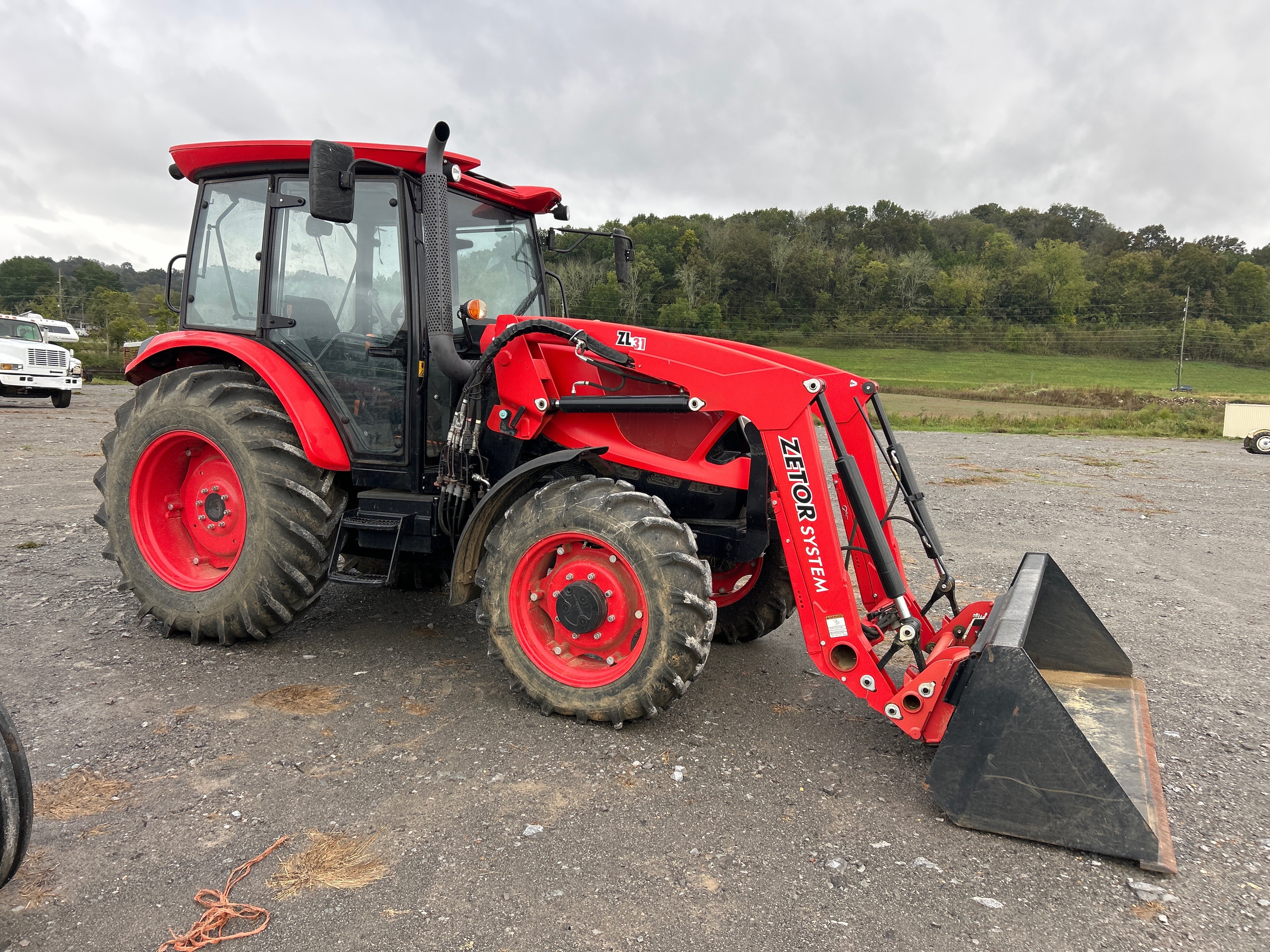

Zetor M85
Zetor M85 — M Compact Series · 80 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
80 hp
Hover a source tag to verify
Overview
ManufacturerZetorReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Cab standard.Reference
Engine
Deutz 4-cyl dieselReference
Engine (gross)59.7 kWReference
Engine (net)55.2 kWReference
DeutzReference
dieselReference
4-cylinderReference
liquid-cooledReference
Power (net)55.2 kWReference
Power (gross)59.7 kWReference
Starter typeelectricReference
Transmission
12-speed synchro shuttleReference
24-speed power shuttleReference
Typesynchro shuttleReference
Gears12 forward and reverseReference
Typepower shuttleReference
Gears24 forward and 12 reverseReference
PTO & Hydraulics
PSC PTO (claimed)47.7 kWReference
SSC PTO (claimed)49.7 kWReference
Pump flow75.7 lpmReference
Rear TypeII/IReference
Controlposition and draft controlReference
PSC Rear lift3364 kgReference
SSC Rear lift2494 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/1000 (1.375)Reference
Zetor M85 attachments
front-end loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
