Tractor · 2015Unverified

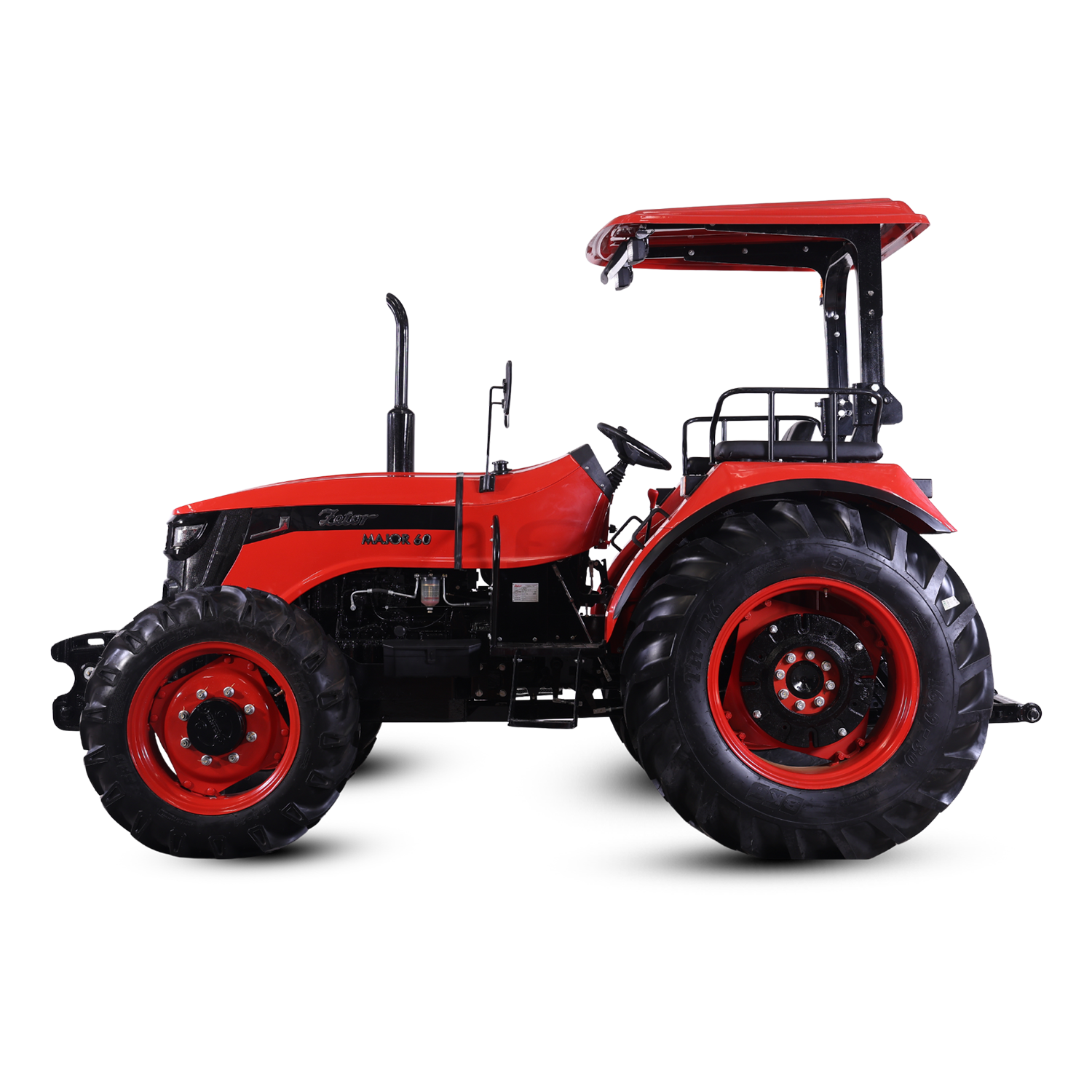

Zetor Major 60

Zetor Major 60 — Major Series · 61 hp. Reference specifications; pending source verification.

The Zetor Major 60 is a compact tractor with a rated output of 61 hp, making it suitable for various applications. It has a production run from 2015 to 2018 and features a 4-cylinder turbocharged diesel liquid-cooled engine. This engine drives a four-wheel drive system with a 12-speed gearbox. The tractor's listed weight is 3165 kg, with an intended capacity for tasks of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
61 hp
Max power
61.2 hp
Weight
3165 kg

Catalogue coverage

Variants represented
2
Richest spec table
67 rows
Recorded power
61 hp
Recorded weight
3165 kg
Transmissions
12-speed synchronized
Production years
2015-2018
Verified variants
0

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerZetorReference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Trailer brakeshydraulicReference
Trailer brakespneumaticReference
Cab standard with heat. Air-conditoning optional.Reference

Engine

Deutz 2.9L 4-cyl dieselReference
Engine (gross)45.6 kWReference
Deutz TCD 2.9 L4Reference
turbocharged dieselReference
4-cylinder 8-valveReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke92 x 110 mmReference
EmissionsStage IIIBReference
Emission controldiesel oxidation catalyst with exhaust-gas recirculationReference
Rated Power (gross)45.6 kWReference
Fuel systemcommon rail direct injectionReference
Rated RPM2200Reference
Starter typeelectricReference
Fuel TypedieselReference
No of Cylinders4 cylinderReference
Rated engine speed2,200 RPMReference
Bore and stroke3.62x4.33 inchesReference
Cooling systemliquid-cooledReference

Transmission

12-speed synchronizedReference
TypesynchronizedReference
Gears12 forward and reverseReference
Transmission TypeSync ShuttleReference
forward and reverse optionsSynchronized : 12 F and 12 RReference
Wheel Drive4WDReference

PTO & Hydraulics

Rear TypeIIReference
Rear lift2345 kgReference
Front lift1121 kgReference
Rear PTOindependentReference
ClutchmechanicalReference
Rear PTO Type540/1000 (1.375)Reference
Rear PTO Type540/540EReference
Front PTO Type1000Reference

Dimensions

Wheelbase219 cmReference
Weight3165 kgReference
Front tire280/85-24Reference
Rear tire420/85-30Reference
Standard tires (ag)Front: 280/85-24. Rear: 420/85-30Reference
Length447 cmReference
Width195 cmReference
Height261 cmReference

General

Make & ModelZetorReference

Capacities

Capacity178.5 ciReference

Hydraulics

Capacity Valves8 valvesReference
Rear Hitch category (SAE designation)Category IIReference
Rear Hitch maximum lift capacity2,345.5 kgReference

Power

Max Power61.2 hpReference

PTO

Rear PTO PowerAvailableReference
Rear PTO RPM1,000 RPMReference
Front PTO PowerAvailableReference

Steering & brakes

Brakesmechanical wet discReference
Steering typepowerReference

Dimensions & weight

Overall Height261.6 cmReference
Overall Length447 cmReference
Overall Width195.6 cmReference
Overall weight3,165.2 kgReference

Wheels & tyres

Rear Wheel TypeAg rear - 420/85-30Reference
Front Wheel TypeAg front - 280/85-24.Reference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
