Tractor · 2020Unverified

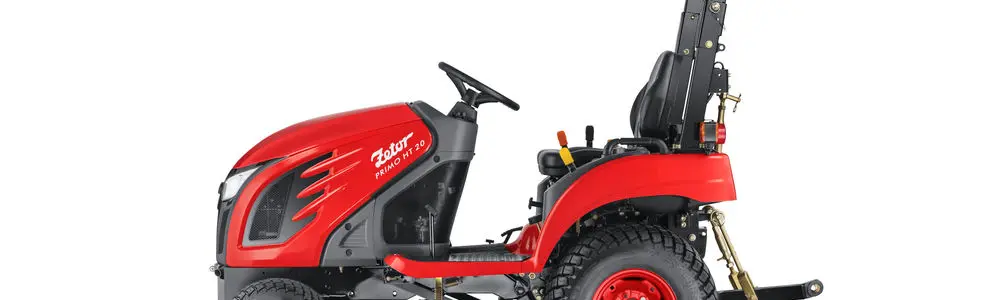

Zetor Primo HT20
Zetor Primo HT20 — Primo Series · 19 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
19 hp
Weight
757 kg
Hover a source tag to verify
Overview
DistributorZetorReference
ManufacturerTYMReference
Sub-Compact Utility tractorReference
Four-wheel driveReference
Two-post folding ROPS.Reference
Engine
Yanmar 3-cyl dieselReference
Fuel tank25.0 LReference
Engine (gross)14.2 kWReference
YanmarReference
dieselReference
3-cylinderReference
liquid-cooledReference
EmissionsStage 5Reference
Rated Power (gross)14.2 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
Pump flow26.5 lpmReference
Rear TypeINReference
Controlposition controlReference
Rear lift498 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540Reference
Mid PTOindependentReference
Mid PTO Type2500Reference
Dimensions
Wheelbase135 cmReference
Weight757 kgReference
Lawn/turf front18x8.00-10Reference
Lawn/turf rear26x12.00-12Reference
Length239 cmReference
Width113 cmReference
Height (ROPS)219 cmReference
Ground clearance21 cmReference
Zetor Primo HT20 attachments
137 cm mid-mount mower deckReference
Electrical
GroundnegativeReference
Battery volts12Reference
54" Mower deck
Typemid-mount ZetorReference
Cutting width137 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
