Tractor · 2016Unverified

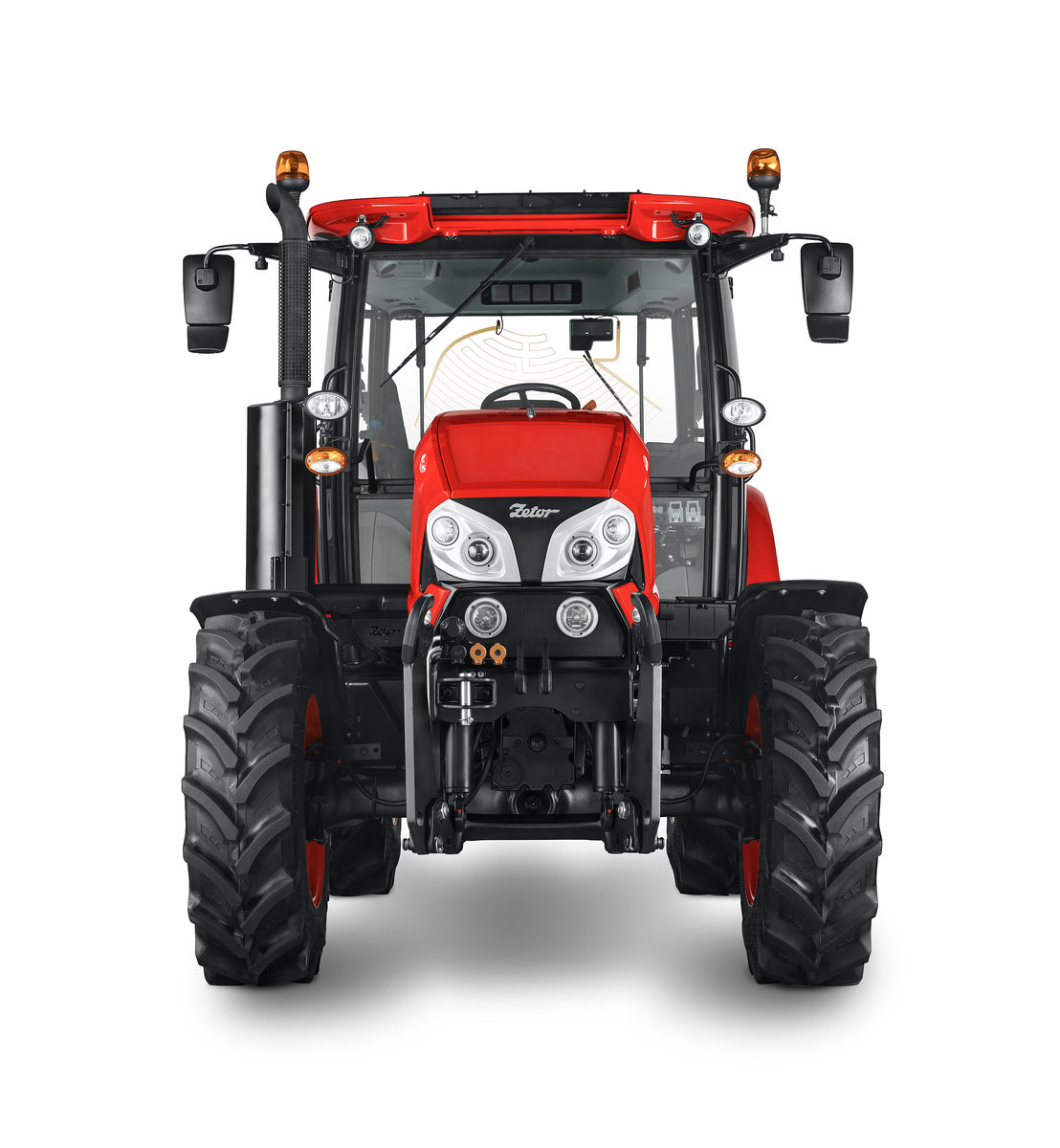

Zetor Proxima 100CL

Name: Zetor Proxima 100CL
Brand: Zetor

Zetor Proxima 100CL — Proxima Series · 96 hp. Reference specifications; pending source verification.

The Zetor Proxima 100CL is a tractor with a rated power output of 96 hp, a mid-range figure for its class. It was manufactured in 2016, featuring a 4-cylinder turbocharged diesel liquid-cooled engine. This engine is paired with four-wheel drive and a 10-speed gearbox. The tractor has an operating weight of 4545 kg and is suitable for operations on areas ranging from 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

96 hp

Weight

4545 kg

Catalogue coverage

Variants represented

Richest spec table

51 rows

Recorded power

96 hp

Recorded weight

4545 kg

Transmissions

10-speed synchromesh

Production years

2016-2016

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerZetorReference

Utility tractorReference

Built in Brno, Czech RepublicReference

Four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Trailer brakespneumaticReference

Trailer brakeshydraulicReference

Cab standard with optional air-conditioning.Reference

Engine

Zetor 4.2L 4-cyl dieselReference

Fuel tank149.9 LReference

Engine (net)71.6 kWReference

Zetor 1017Reference

turbocharged dieselReference

4-cylinder 16-valveReference

liquid-cooledReference

Displacement4.2 LReference

Bore/Stroke105 x 120 mmReference

EmissionsStage IVReference

Rated Power (net)71.6 kWReference

Rated RPM2200Reference

Starter typeelectricReference

Transmission

10-speed synchromeshReference

12-speed synch shuttleReference

20-speed creeperReference

TypesynchromeshReference

Gears10 forward and 2 reverseReference

Typesynch shuttleReference

Gears12 forward and reverseReference

TypecreeperReference

Gears20 forward and 4 reverseReference

PTO & Hydraulics

Pressure190.0 barReference

Valves1 to 3Reference

Total flow50.0 lpmReference

Total flow60.0 lpmReference

Rear TypeIIReference

Controlposition control and mechanical top-link draft sensingReference

Rear lift4282 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Rear PTO Type540/540EReference

Front PTO Type1000Reference

Dimensions

Wheelbase230 cmReference

Weight4545 kgReference

Front tire320/85R24Reference

Rear tire420/85R34Reference

Standard tires (ag)Front: 320/85R24. Rear: 420/85R34Reference

Length470 cmReference

Width251 cmReference

Height284 cmReference

Electrical

Charging systemalternatorReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
