Tractor · 2016Unverified

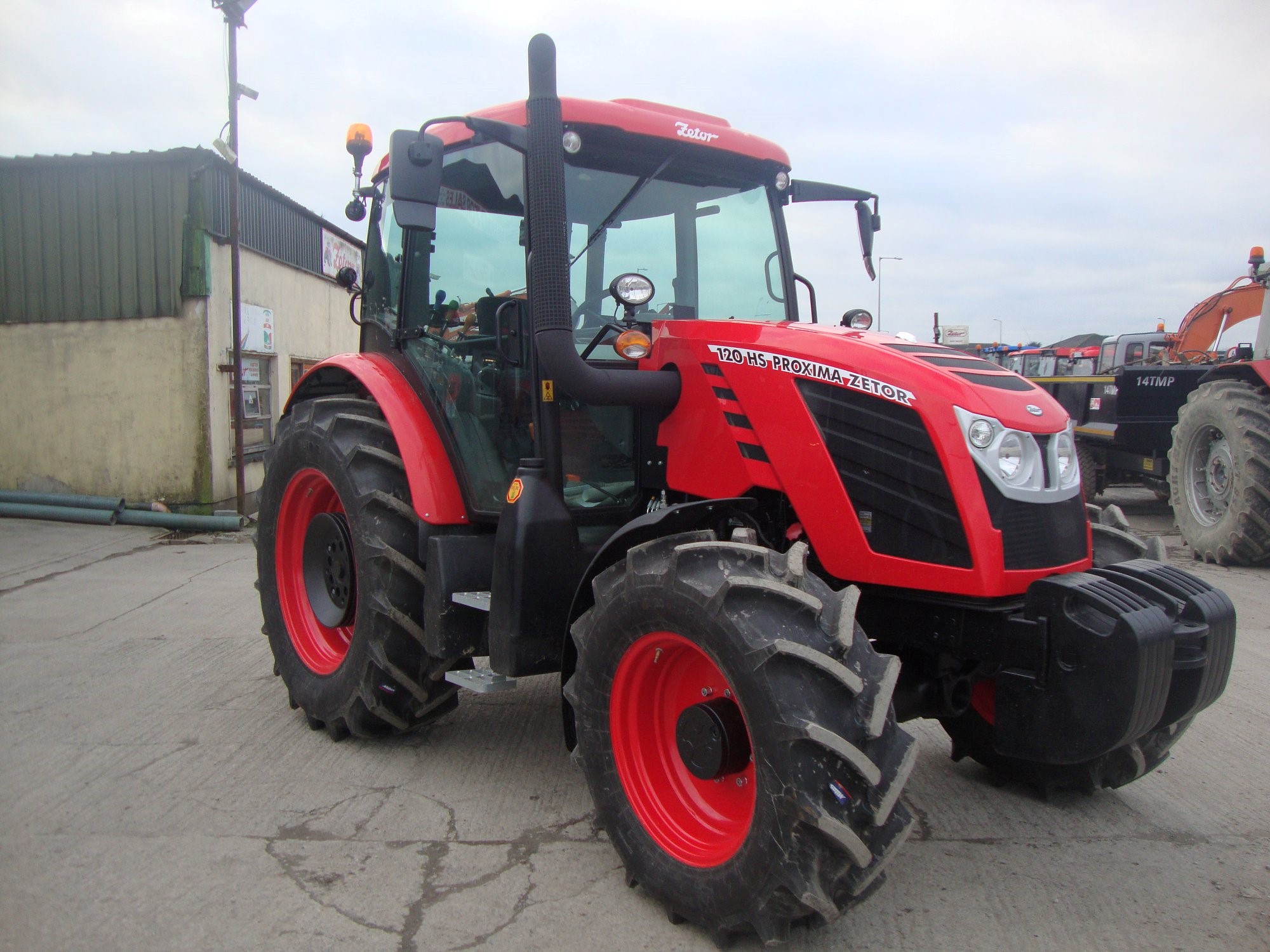

Zetor Proxima 120HS
Zetor Proxima 120HS — Proxima Series · 117 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
117 hp
Weight
4257 kg
Hover a source tag to verify
Overview
ManufacturerZetorReference
Utility tractorReference
Built in Brno, Czech RepublicReference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakespneumaticReference
Trailer brakeshydraulicReference
Cab standard with optional air-conditioning.Reference
Engine
Zetor 4.2L 4-cyl dieselReference
Fuel tank190.0 LReference
Engine (net)87.2 kWReference
Zetor 1417Reference
turbocharged dieselReference
4-cylinder 16-valveReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
EmissionsStage IVReference
Rated Power (net)87.2 kWReference
Rated RPM2200Reference
Starter typeelectricReference
Transmission
24-speed power shuttleReference
Typepower shuttleReference
Gears24 forward and reverseReference
PTO & Hydraulics
Pressure190.0 barReference
Valves2 to 4Reference
Total flow50.0 lpmReference
Total flow60.0 lpmReference
Rear TypeIIReference
Controlposition control and mechanical top-link draft sensingReference
ControlHitchTronic electric draft sensingReference
Rear lift4282 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Rear PTO Type540/540EReference
Front PTO Type1000Reference
Dimensions
Wheelbase244 cmReference
Weight4257 kgReference
Front tire380/85R24Reference
Rear tire460/85R38Reference
Standard tires (ag)Front: 380/85R24. Rear: 460/85R38Reference
Length494 cmReference
Width251 cmReference
Height284 cmReference
Electrical
Charging systemalternatorReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
