Tractor · 2009Unverified

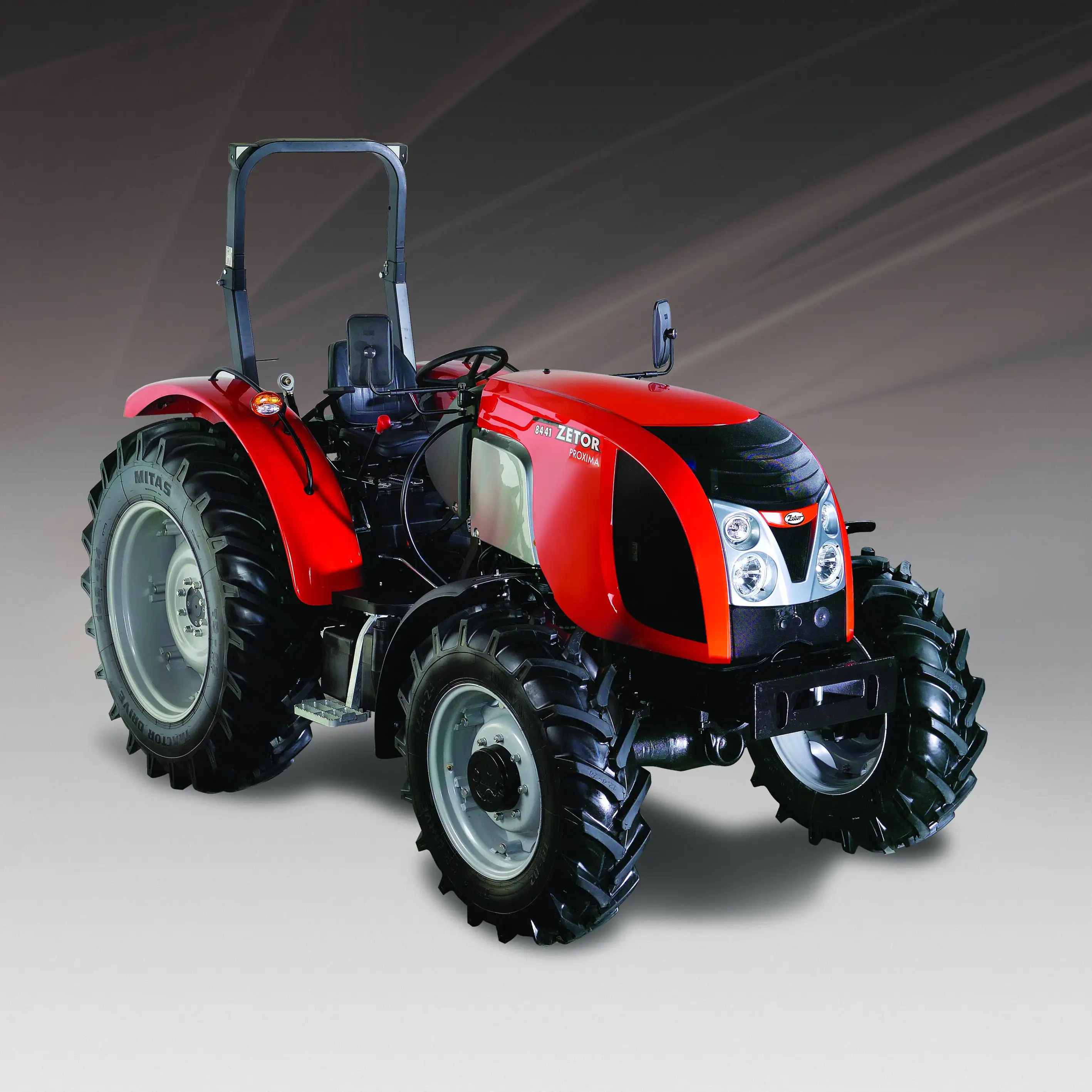

Zetor Proxima 75

Name: Zetor Proxima 75
Brand: Zetor

Zetor Proxima 75 — Proxima Series · 72 hp. Reference specifications; pending source verification.

The Zetor Proxima 75 is a tractor rated at 72 hp, positioning it in the middle of its class for power output. It was produced from 2009 to 2010. The tractor features a 4-cylinder turbocharged diesel liquid-cooled engine coupled with a 10-speed gearbox and four-wheel drive. Its listed weight ranges from 6900 to 8003 pounds, suitable for tasks covering approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

72 hp

Max power

72 hp

Weight

6900 to 8003 pounds

Catalogue coverage

Variants represented

Richest spec table

88 rows

Recorded power

72 hp

Recorded weight

3129 kg

Transmissions

10-speed synchromesh

Production years

2009-2010

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerZetorReference

Utility tractorReference

Built in Brno, Czech RepublicReference

Two- or four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Trailer brakeshydraulicReference

Trailer brakespneumaticReference

Cab standard with optional air-conditioning.Reference

Engine

Zetor 4.2L 4-cyl dieselReference

Engine (net)53.7 kWReference

Zetor 1105Reference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.2 LReference

Bore/Stroke105 x 120 mmReference

EmissionsStage IIIReference

Rated Power (net)53.7 kWReference

Rated RPM2200Reference

Starter typeelectricReference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,200 RPMReference

Emissions complianceStage IIIReference

Bore and stroke4.13x4.72 inchesReference

Cooling systemliquid-cooledReference

Transmission

10-speed synchromeshReference

12-speed synch shuttleReference

20-speed creeperReference

TypesynchromeshReference

Gears10 forward and 2 reverseReference

Clutch310mm hydraulic cerametallic discReference

Typesynch shuttleReference

Gears12 forward and reverseReference

TypecreeperReference

Gears20 forward and 4 reverseReference

Transmission TypeSync ShuttleReference

Wheel Drive4WDReference

PTO & Hydraulics

Pressure180.0 barReference

Valves1Reference

Total flow50.0 lpmReference

Rear TypeII/IReference

Controlposition control and mechanical top-link draft sensingReference

Rear lift4078 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Rear PTO Type540/540EReference

Front PTO Type1000Reference

Dimensions

2WD Wheelbase232 cmReference

4WD Wheelbase223 cmReference

Weight6900 to 8003 poundsReference

Front tire7.50-16Reference

2WD Rear tire16.9-28Reference

2WD Standard tires (ag)Front: 7.50-16. Rear: 16.9-28Reference

4WD Standard tires (ag)Front: 11.2-24. Rear: 16.9-28Reference

Length387 cmReference

Width191 cmReference

2WD Height226 cmReference

4WD Height267 cmReference

2WD Weight3129 kgReference

4WD Weight3630 kgReference

2WD Ground clearance49 cmReference

4WD Ground clearance40 cmReference

Electrical

Charging systemalternatorReference

General

Make & ModelZetorReference

Country of manufacturerBrno, Czech RepublicReference

Capacities

Capacity253.6 ciReference

Power

Max Power72 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Front PTO PowerAvailableReference

Steering & brakes

Brakeshydraulic wet discReference

Steering typepowerReference

Hydraulics

Pump Rated Output (total)13.2 gpmReference

Maximum operating pressure2,611 psiReference

Remote Valves1 ValveReference

Rear Hitch category (SAE designation)Category II/IReference

Rear Hitch maximum lift capacity4,078.7 kgReference

Rear Hitch Sensing Typeposition control and mechanical top-link draft sensingReference

Dimensions & weight

Wheelbase232.2 cmReference

Overall Height267.2 cmReference

Overall Length387.6 cmReference

Overall Width191 cmReference

Ground Clearance49 cmReference

Overall weight3,630.1 kgReference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
