Tractor · 2016Unverified

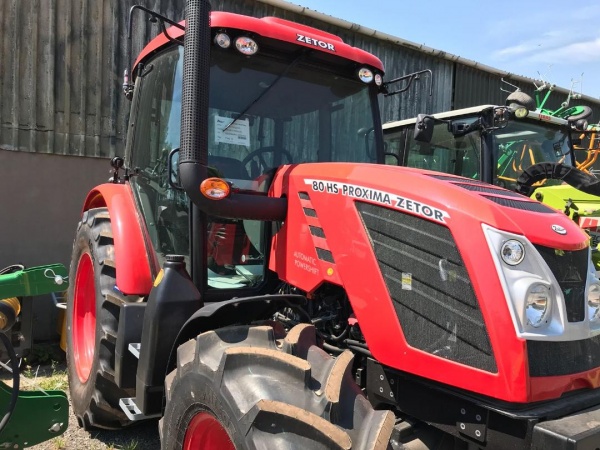

Zetor Proxima 80HS

Name: Zetor Proxima 80HS
Brand: Zetor

Zetor Proxima 80HS — Proxima Series · 76 hp. Reference specifications; pending source verification.

The Zetor Proxima 80HS is a tractor with a rated output of 76 hp, positioning it approximately in the middle of its class in terms of power. The model was manufactured in 2016. It features a 4-cylinder turbocharged diesel liquid-cooled engine, which drives a four-wheel drive system through a 24-speed gearbox. The listed weight of the tractor is 4257 kg, making it suitable for tasks covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

76 hp

Weight

4257 kg

Catalogue coverage

Variants represented

Richest spec table

46 rows

Recorded power

76 hp

Recorded weight

4257 kg

Transmissions

24-speed power shuttle

Production years

2016-2016

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerZetorReference

Utility tractorReference

Built in Brno, Czech RepublicReference

Four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Trailer brakespneumaticReference

Trailer brakeshydraulicReference

Cab standard with optional air-conditioning.Reference

Engine

Zetor 4.2L 4-cyl dieselReference

Fuel tank190.0 LReference

Engine (net)56.7 kWReference

Zetor 1106Reference

turbocharged dieselReference

4-cylinder 16-valveReference

liquid-cooledReference

Displacement4.2 LReference

Bore/Stroke105 x 120 mmReference

EmissionsStage IIIBReference

Rated Power (net)56.7 kWReference

Rated RPM2200Reference

Starter typeelectricReference

Transmission

24-speed power shuttleReference

Typepower shuttleReference

Gears24 forward and reverseReference

PTO & Hydraulics

Pressure190.0 barReference

Valves2 to 4Reference

Total flow50.0 lpmReference

Total flow60.0 lpmReference

Rear TypeIIReference

Controlposition control and mechanical top-link draft sensingReference

ControlHitchTronic electric draft sensingReference

Rear lift4282 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Rear PTO Type540/540EReference

Front PTO Type1000Reference

Dimensions

Wheelbase244 cmReference

Weight4257 kgReference

Front tire380/85R24Reference

Rear tire460/85R38Reference

Standard tires (ag)Front: 380/85R24. Rear: 460/85R38Reference

Length494 cmReference

Width251 cmReference

Height284 cmReference

Electrical

Charging systemalternatorReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
