Tractor · 2011Unverified

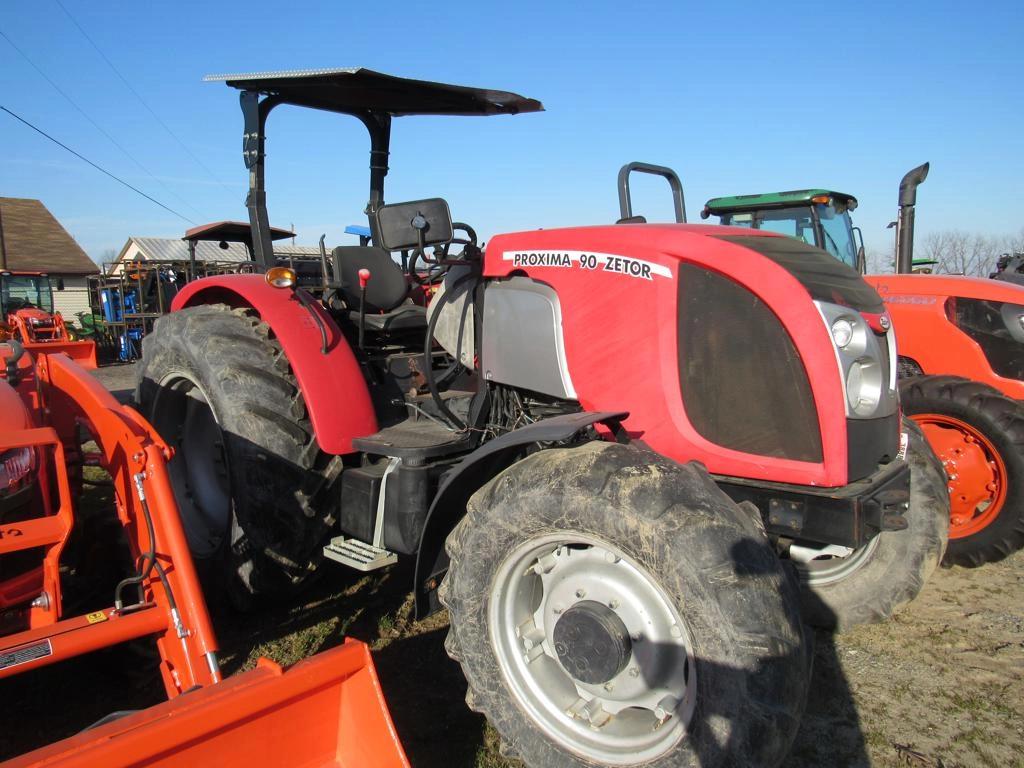

Zetor Proxima 90
Zetor Proxima 90 — Model year 2011-20142014-2016 · 87 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
87 hp
Weight
6900 to 8003 pounds
Hover a source tag to verify
Overview
ManufacturerZetorReference
Utility tractorReference
Built in Brno, Czech RepublicReference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Trailer brakespneumaticReference
Cab standard with optional air-conditioning.Reference
Engine
Zetor 4.2L 4-cyl dieselReference
Engine (net)64.9 kWReference
Zetor 1205Reference
turbocharged dieselReference
4-cylinder 8-valveReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
EmissionsStage IIIReference
Rated Power (net)64.9 kWReference
Rated RPM2200Reference
Starter typeelectricReference
Transmission
10-speed synchromeshReference
12-speed synch shuttleReference
20-speed creeperReference
TypesynchromeshReference
Gears10 forward and 2 reverseReference
Clutch310mm hydraulic cerametallic discReference
Typesynch shuttleReference
Gears12 forward and reverseReference
TypecreeperReference
Gears20 forward and 4 reverseReference
PTO & Hydraulics
Pressure180.0 barReference
Valves1Reference
Total flow50.0 lpmReference
Rear TypeIIReference
Controlposition control and mechanical top-link draft sensingReference
Rear lift4282 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Rear PTO Type540/540EReference
Front PTO Type1000Reference
Dimensions
2WD Wheelbase232 cmReference
4WD Wheelbase223 cmReference
Weight6900 to 8003 poundsReference
Front tire7.5-16Reference
2WD Rear tire16.9-28Reference
2WD Standard tires (ag)Front: 7.5-16. Rear: 16.9-28Reference
4WD Standard tires (ag)Front: 11.2-24. Rear: 16.9-28Reference
Length387 cmReference
Width191 cmReference
2WD Height262 cmReference
4WD Height267 cmReference
2WD Weight3129 kgReference
4WD Weight3630 kgReference
2WD Ground clearance49 cmReference
4WD Ground clearance40 cmReference
Zetor Proxima 90 attachments
front-end loaderReference
Electrical
Charging systemalternatorReference
Attachment overview
Zetor 120K loaderReference
Zetor 120SLi loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
